3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | Net Weight | adjustable setting current (InN) / for N-tripping — minimum | design of the N-conductor protection |
|---|---|---|---|---|---|

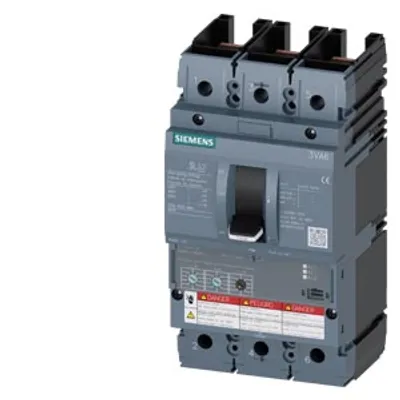

| 3VA6110-7HL31-0AA0 | CDAE | ETU320 | 2.066 kg | 0 A | — |
| 3VA6140-8KT41-2AA0 | LDAE | ETU856 | 2.9 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6140-8KT41-0AA0 | LDAE | ETU856 | 3.2 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6140-8KP31-2AA0 | LDAE | ETU850 | 2.3 kg | 0 A | adjustable OFF; 40% to 160% |
| 3VA6140-8KP31-0AA0 | LDAE | ETU850 | 2.5 kg | 0 A | adjustable OFF; 40% to 160% |
| 3VA6140-8KM41-0AA0 | LDAE | ETU830 | 3.2 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6110-7KQ31-0AA0 | CDAE | ETU860 | 2.5 kg | 0 A | adjustable OFF; 20% to 160% |

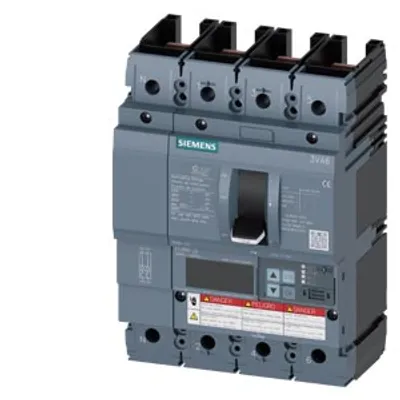

| 3VA6110-7KP41-2AA0 | CDAE | ETU850 | 2.9 kg | 20 A | adjustable OFF; 20% to 150% |
| 3VA6140-5KT41-2AA0 | MDAE | ETU856 | 2.9 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6140-5KT41-0AA0 | MDAE | ETU856 | 3.2 kg | 15 A | adjustable OFF; 40% to 160% |

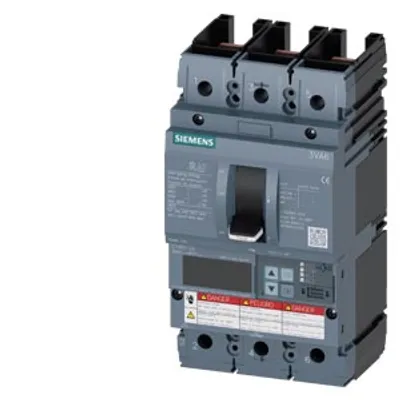

| 3VA6140-5KP31-2AA0 | MDAE | ETU850 | 2.3 kg | 0 A | adjustable OFF; 40% to 160% |
| 3VA6140-5KP31-0AA0 | MDAE | ETU850 | 2.5 kg | 0 A | adjustable OFF; 40% to 160% |
| 3VA6140-5KL41-2AA0 | MDAE | ETU820 | 2.9 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6140-5KL41-0AA0 | MDAE | ETU820 | 3.2 kg | 15 A | adjustable OFF; 40% to 160% |
| 3VA6115-7KQ41-2AA0 | CDAE | ETU860 | 2.9 kg | 30 A | adjustable OFF; 20% to 100% |
| 3VA6115-7KQ41-0AA0 | CDAE | ETU860 | 3.2 kg | 30 A | adjustable OFF; 20% to 100% |

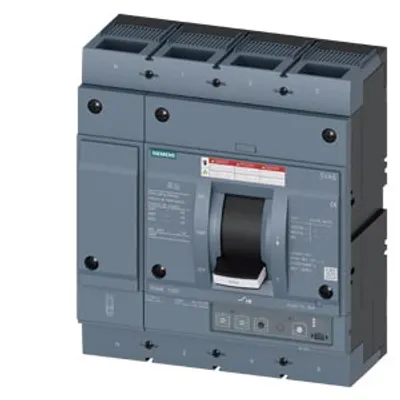

| 3VA6560-7HL42-2AA0 | CMAE | ETU320 | 18.195 kg | 300 A | adjustable OFF; 50%; 100% |
| 3VA6560-7HL42-0AA0 | CMAE | ETU320 | 17.01 kg | 300 A | adjustable OFF; 50%; 100% |

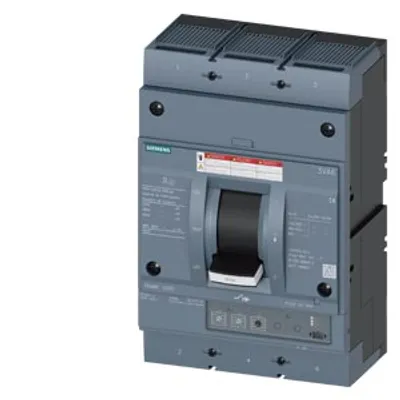

| 3VA6560-7HL36-2AA0 | CMAE | ETU320 | 15.355 kg | 0 A | — |
| 3VA6560-7HL36-0AA0 | CMAE | ETU320 | 15.355 kg | 0 A | — |
| 3VA6560-7HL32-2AA0 | CMAE | ETU320 | 13.1 kg | 0 A | — |
| 3VA6560-7HL32-0AA0 | CMAE | ETU320 | 13.3 kg | 0 A | — |

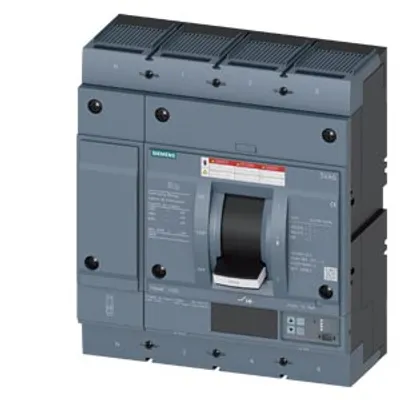

| 3VA6560-6KT46-2AA0 | HMAE | ETU856 | 20.089 kg | 120 A | adjustable OFF; 20% to 130% |

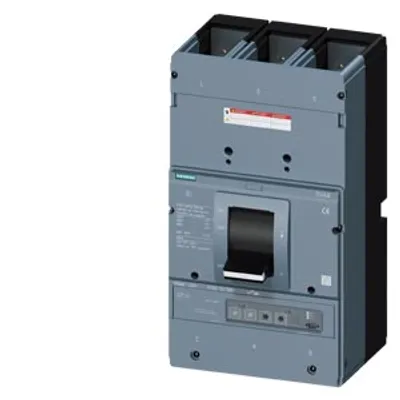

| 3VA6712-5HN31-2AA0 | MNAE | ETU350 | 25.7 kg | — | — |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
