3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|

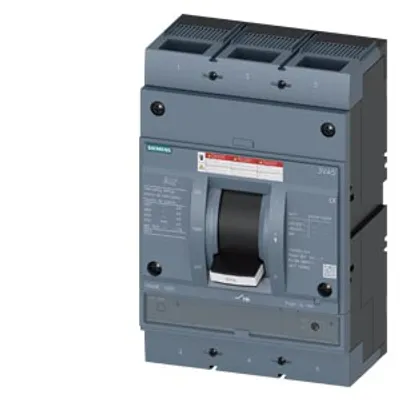

| 3VA5580-5EC62-0AA0 | MMAS | TM230 | 140 W | 70 W | 13.32 kg |
| 3VA5580-5EC46-2AA0 | MMAS | TM230 | 210 W | 70 W | 21.916 kg |

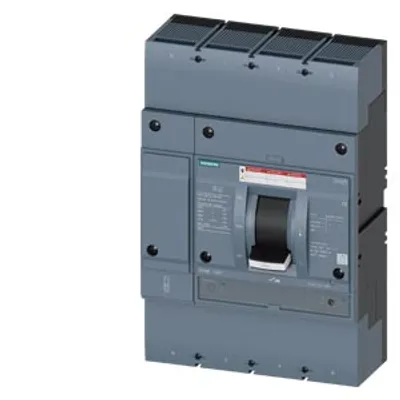

| 3VA5580-5EC46-0AA0 | MMAS | TM230 | 210 W | 70 W | 22.689 kg |

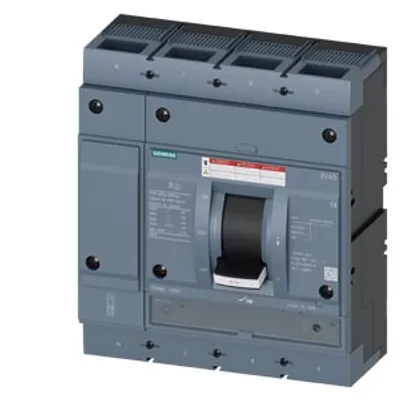

| 3VA5580-5EC42-2AA0 | MMAS | TM230 | 210 W | 70 W | 16.323 kg |

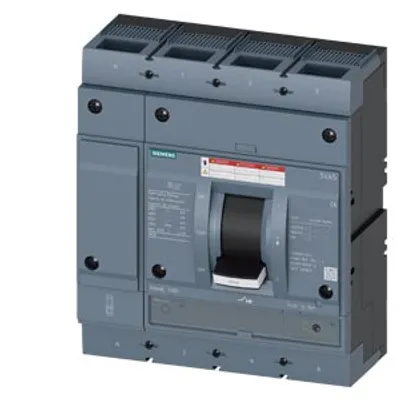

| 3VA5580-5EC42-0AA0 | MMAS | TM230 | 210 W | 70 W | 18 kg |
| 3VA5710-7EC61-2AA0 | CNAS | TM230 | 197 W | 197 W | 3.133 kg |
| 3VA5710-7EC61-1AA0 | CNAM | TM230 | 197 W | 197 W | 3.133 kg |
| 3VA5710-7EC61-0AA0 | CNAS | TM230 | 197 W | 197 W | 3.133 kg |
| 3VA5710-7EC31-2AA0 | CNAS | TM230 | 197 W | 197 W | 3.133 kg |
| 3VA5710-7EC31-1AA0 | CNAM | TM230 | 197 W | 197 W | 3.133 kg |
| 3VA5710-7EC31-0AA0 | CNAS | TM230 | 197 W | 197 W | 24.555 kg |

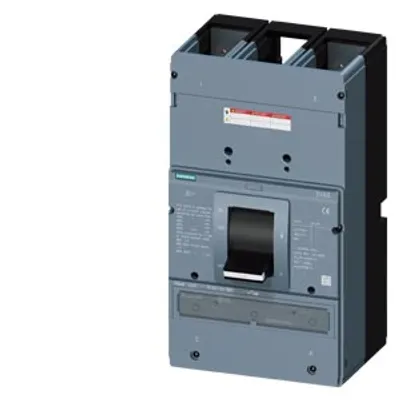

| 3VA5710-7BB61-0AA0 | CNAS | MCS110 | 197 W | 197 W | 3.133 kg |

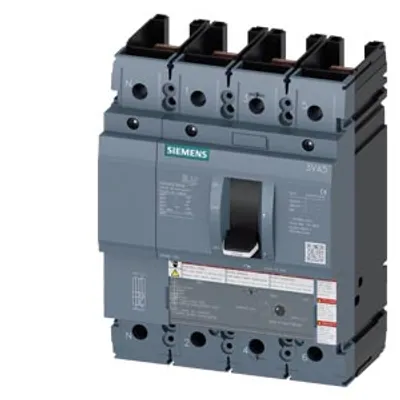

| 3VA5215-6GC41-0AA0 | HFAS | TM230 | 30 W | 9.97 W | 2.7 kg |
| 3VA5215-6EF41-2AA0 | HFAS | TM240 | 30 W | 10 W | 2 800 g |
| 3VA5215-6EF41-0AA0 | HFAS | TM240 | 30 W | 9.97 W | 2.7 kg |
| 3VA6210-6JP31-2AA0 | HFAE | ETU550 | 6.7 W | 2.23 W | 2.3 kg |
| 3VA6210-6JP31-0AA0 | HFAE | ETU550 | 6.7 W | 2.23 W | 2.5 kg |
| 3VA6210-6HL31-2AA0 | HFAE | ETU320 | 6.7 W | 2.23 W | 2.3 kg |
| 3VA6210-6HL31-0AA0 | HFAE | ETU320 | 6.7 W | 2.23 W | 2.5 kg |

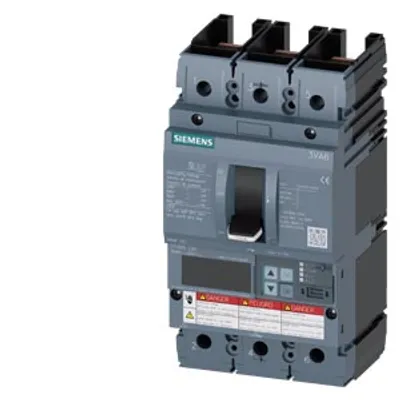

| 3VA6140-8JQ31-2AA0 | LDAE | ETU560 | 2.4 W | 0.8 W | 2.3 kg |
| 3VA6140-8JQ31-0AA0 | LDAE | ETU560 | 2.4 W | 0.8 W | 2.5 kg |

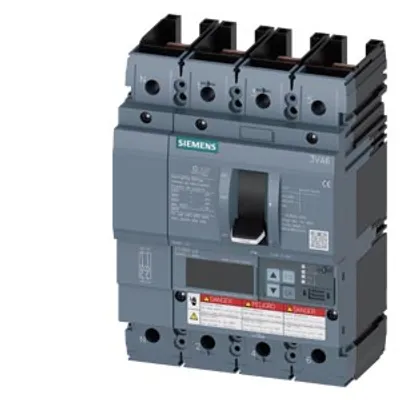

| 3VA6140-8JP41-2AA0 | LDAE | ETU550 | 2.4 W | 0.8 W | 2.9 kg |
| 3VA6110-7HM31-2AA0 | CDAE | ETU330 | 13 W | 4.33 W | 2.3 kg |

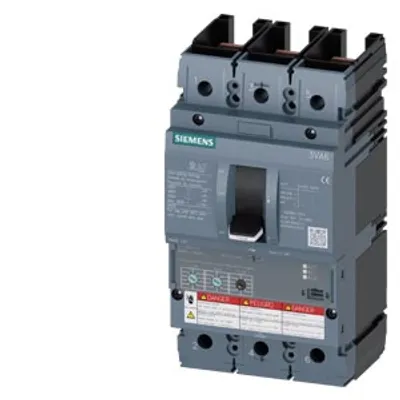

| 3VA6110-7HL31-2AA0 | CDAE | ETU320 | 13 W | 4.33 W | 2.057 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product function — other measurement function | No |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
