3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | protection function of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6712-5HN31-0AA0 | ETU350 | LSI | 243 W | 25.51 kg | 12 000 A |
| 3VA6712-5HM31-2AA0 | ETU330 | LIG | 243 W | 25.6 kg | 1 800 A |

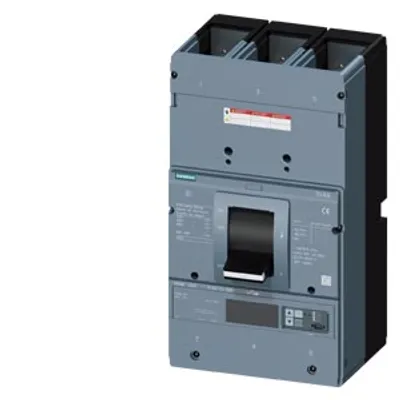

| 3VA6712-7KQ31-0AA0 | ETU860 | LSIG | 243 W | 25.83 kg | 1 800 A |
| 3VA6712-7KP31-2AA0 | ETU850 | LSI | 243 W | 3.133 kg | 1 800 A |
| 3VA6712-7KP31-0AA0 | ETU850 | LSI | 243 W | 25.7 kg | 1 800 A |
| 3VA6712-7HQ31-2AA0 | ETU360 | LSIG | 243 W | 25.7 kg | 12 000 A |

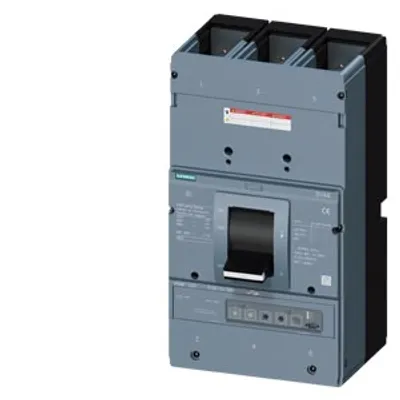

| 3VA6712-7HQ31-0AA0 | ETU360 | LSIG | 243 W | 25.7 kg | 12 000 A |
| 3VA6712-7HN31-2AA0 | ETU350 | LSI | 243 W | 3.133 kg | 12 000 A |
| 3VA6712-7HN31-0AA0 | ETU350 | LSI | 243 W | 25.7 kg | 12 000 A |
| 3VA6816-5HN31-0AA0 | ETU350 | LSI | 433 W | 25.6 kg | 12 000 A |
| 3VA6816-5HM31-2AA0 | ETU330 | LIG | 433 W | 3.133 kg | 2 400 A |
| 3VA6816-5HM31-0AA0 | ETU330 | LIG | 433 W | 25.38 kg | 2 400 A |
| 3VA6816-5HL31-2AA0 | ETU320 | LI | 433 W | 25.765 kg | 2 400 A |
| 3VA6816-5HL31-0AA0 | ETU320 | LI | 433 W | 25.5 kg | 2 400 A |
| 3VA6780-7KT31-2AA0 | ETU856 | LSI | 108 W | 3.133 kg | 1 200 A |
| 3VA6780-7KT31-0AA0 | ETU856 | LSI | 108 W | 3.133 kg | 1 200 A |
| 3VA6560-5KL32-2AA0 | ETU820 | LI | 151 W | 13.481 kg | 900 A |

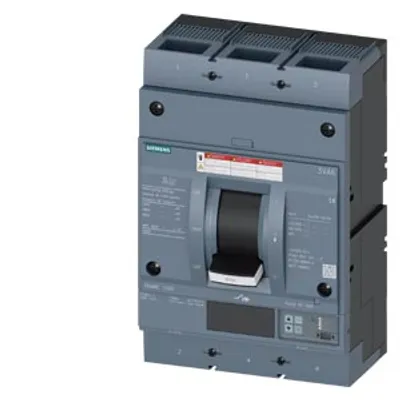

| 3VA6560-5KL32-0AA0 | ETU820 | LI | 151 W | 13.3 kg | 900 A |
| 3VA6560-5JT46-2AA0 | ETU556 | LSI-G-alarm only | 151 W | 20.089 kg | 900 A |

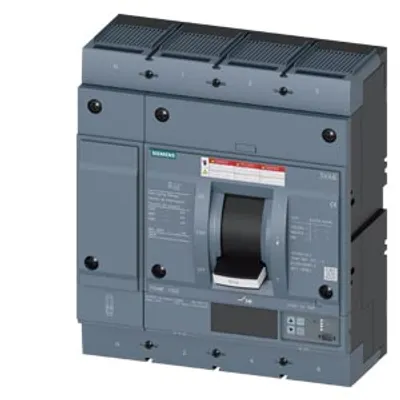

| 3VA6560-5JT46-0AA0 | ETU556 | LSI-G-alarm only | 151 W | 20.089 kg | 900 A |
| 3VA6560-5JQ46-0AA0 | ETU560 | LSIG | 151 W | 20.089 kg | 900 A |

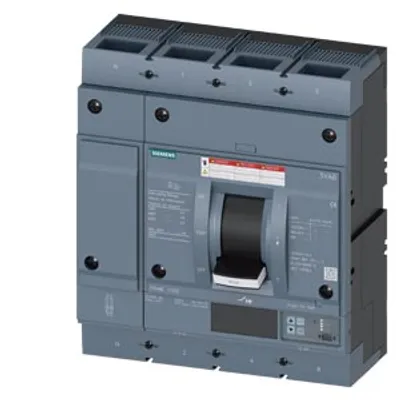

| 3VA6560-5JQ42-2AA0 | ETU560 | LSIG | 151 W | 17.01 kg | 900 A |
| 3VA6560-5JQ42-0AA0 | ETU560 | LSIG | 151 W | 17.01 kg | 900 A |
| 3VA6710-5HM31-0AA0 | ETU330 | LIG | 169 W | 25.7 kg | 1 500 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
