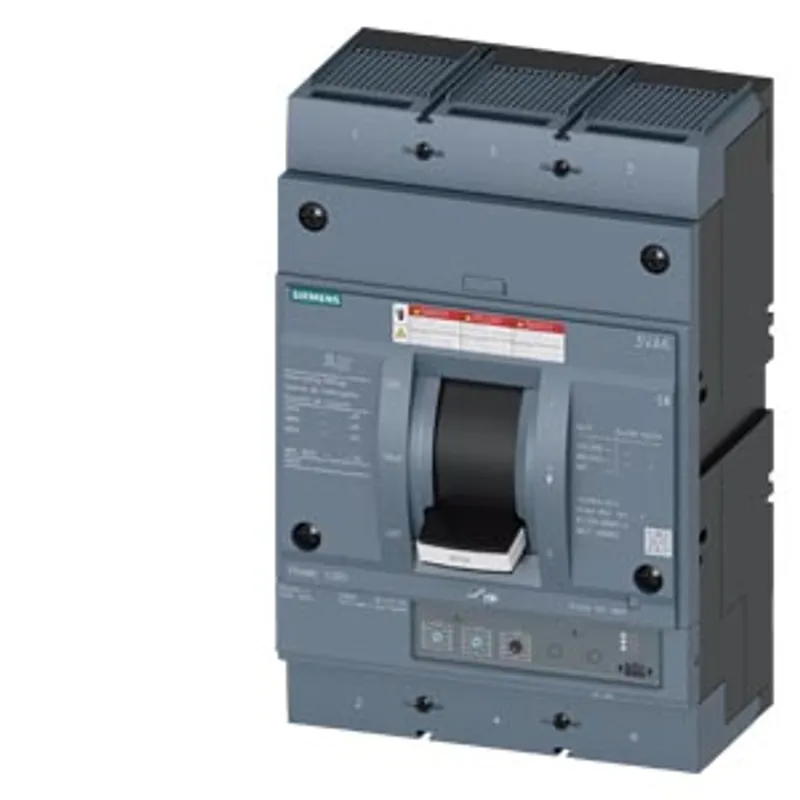

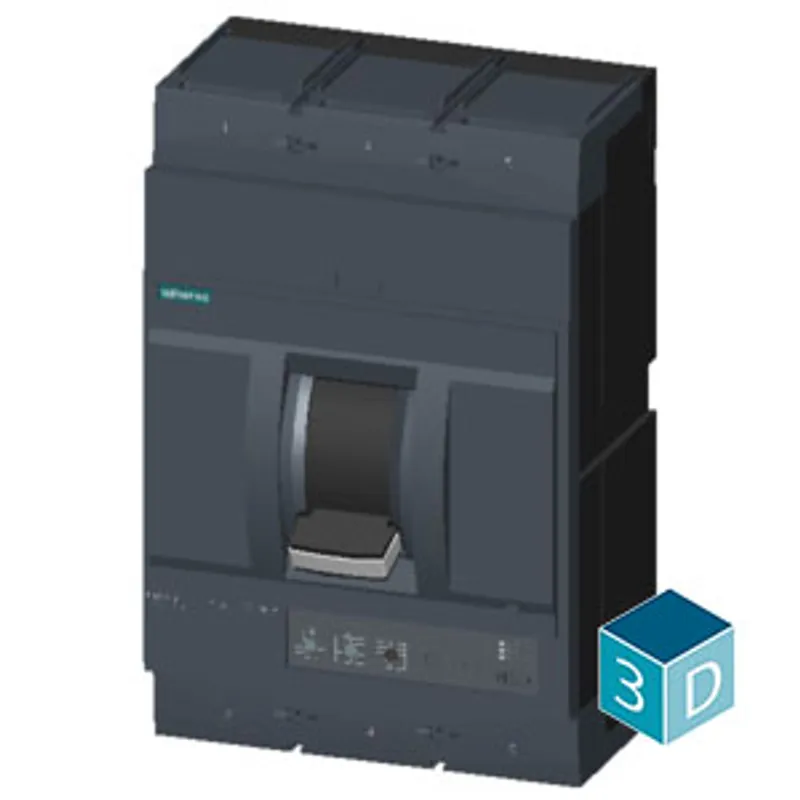

Siemens 3VA6560-7HL36-0AA0

Circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU320

MPN: 3VA6560-7HL36-0AA0
Category: 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA6560-7HL36-0AA0?

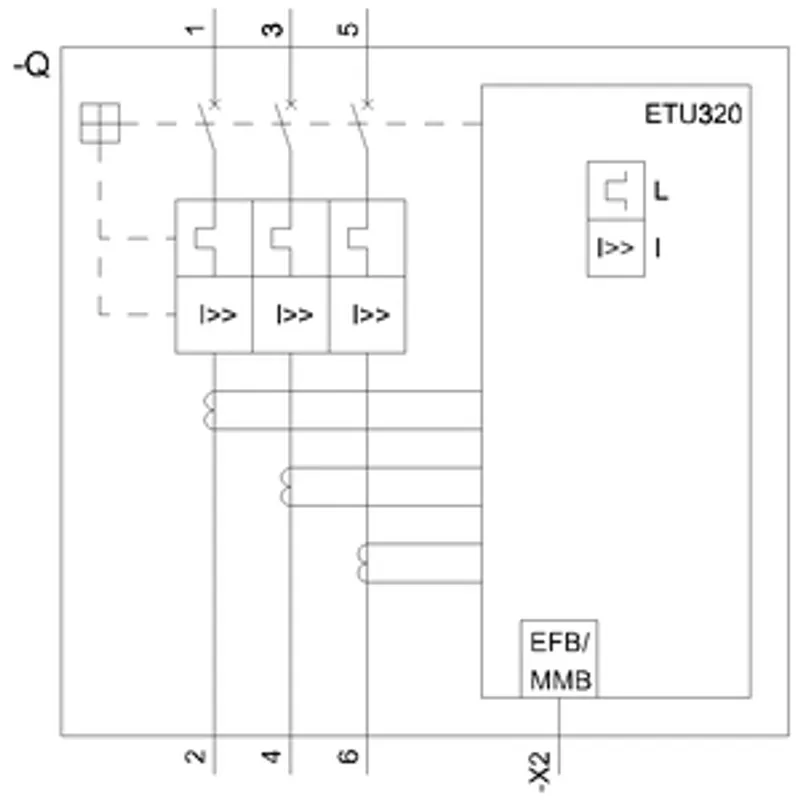

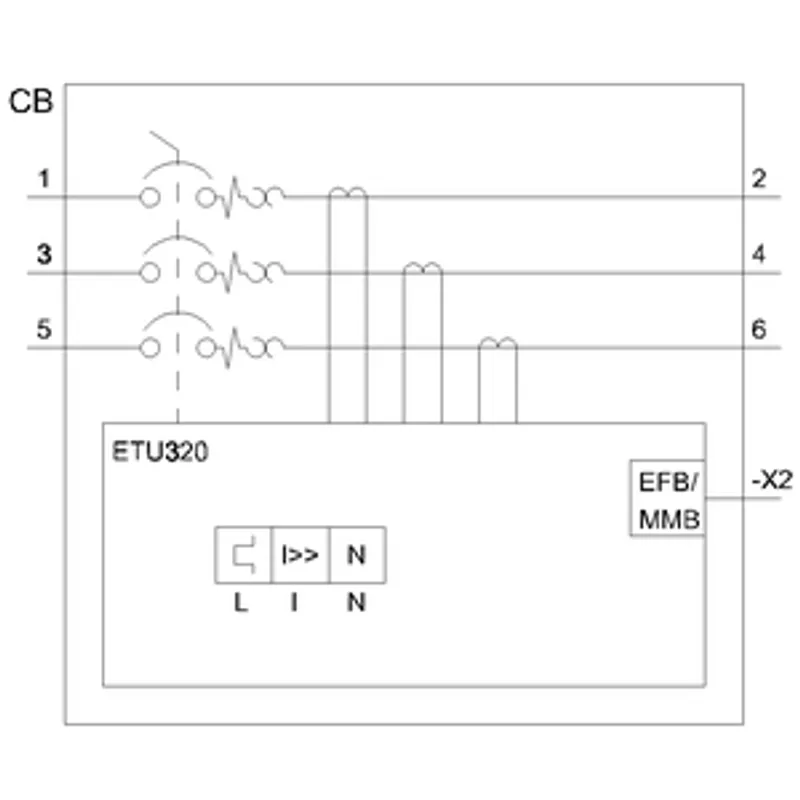

circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU320, LI, In=600 A overload protection Ir=240 A ...600 A short-circuit protection Ii=1.5...12 x In cable connection on two sides

Specifications

Model

product brand name	SENTRON
product designation	Molded-case circuit breaker
product designation / according to UL file	CMAE
design of the product	System protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)	Yes
design of the overcurrent release	ETU320
protection function of the overcurrent release	LI
number of poles	3

General technical data

insulation voltage / rated value	800 V
operating voltage / at AC / rated value	690 V
power loss [W] / maximum	151 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole	50.33 W
mechanical service life (operating cycles) / typical	10 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V	5 100
electrical endurance (operating cycles) / at AC-1 / at 690 V	3 500
electrical endurance (operating cycles) / at 480 V	5 100
electrical endurance (operating cycles) / at 600 V	3 500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof	No
ground-fault monitoring version	without
product function — communication function	No
product function — other measurement function	No
Net Weight	15.355 kg

Current

marking / according to UL 489 / 100%-rated breaker	No
operational current — at 40 °C	600 A
operational current — at 45 °C	600 A
operational current — at 50 °C	600 A
operational current — at 55 °C	600 A
operational current — at 60 °C	600 A
operational current — at 65 °C	555 A
operational current — at 70 °C	510 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breaker	C
maximum short-circuit current breaking capacity (Icu) — at 240 V	200 kA
maximum short-circuit current breaking capacity (Icu) — at 415 V	110 kA
maximum short-circuit current breaking capacity (Icu) — at 690 V	35 kA
operating short-circuit current breaking capacity (Ics) — at 240 V	150 kA
operating short-circuit current breaking capacity (Ics) — at 415 V	85 kA
operating short-circuit current breaking capacity (Ics) — at 690 V	19 kA
short-circuit current making capacity (Icm) — at 240 V	440 kA
short-circuit current making capacity (Icm) — at 415 V	242 kA
short-circuit current making capacity (Icm) — at 690 V	74 kA

Switching capacity according to UL 489

current breaking capacity — at 240 V	200 kA
current breaking capacity — at 480 V	100 kA
current breaking capacity — at 600 V	50 kA

Adjustable parameters

adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum	250 A
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum	600 A
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum	0.5 s
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum	17 s
adjustable response value setting current (Ii) / for I-tripping — minimum	900 A
adjustable response value setting current (Ii) / for I-tripping — maximum	7 200 A
adjustable setting current (InN) / for N-tripping — minimum	0 A
adjustable setting current (InN) / for N-tripping — maximum	0 A
product function / grounding protection	No

Mechanical Design

product component — undervoltage release	No
product component — voltage trigger	No
product component — trip indicator	No

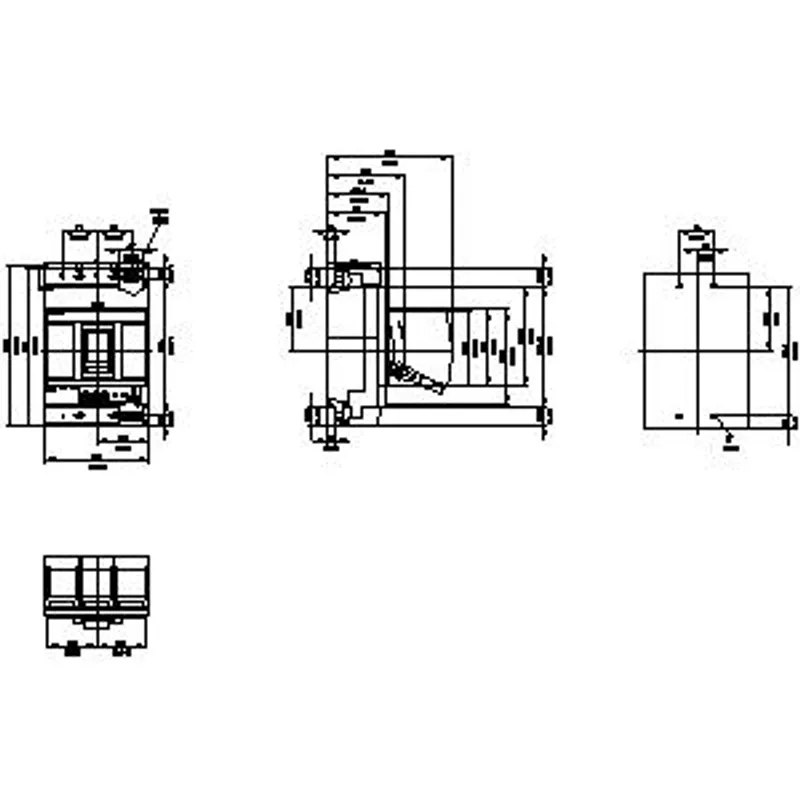

height [in]	12.91 in
height	328 mm
width [in]	8.27 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded	2 x (4/0 - 600 kcmil)
width	210 mm
depth [in]	4.72 in
depth	120 mm

Connections

arrangement of electrical connectors / for main current circuit	Front connection
type of electrical connection / for main current circuit	circular conductor terminal on both sides

Auxiliary circuit

number of CO contacts / for auxiliary contacts

Accessories

product extension / optional / motor drive

Environmental conditions

protection class IP / on the front	IP40
ambient temperature — during operation / minimum	-25 °C
ambient temperature — during operation / maximum	70 °C
ambient temperature — during storage / minimum	-40 °C
ambient temperature — during storage / maximum	80 °C
reference code / according to IEC 81346-2	Q
