Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Outside diameter (inch) | Outside diameter (mm) | EAN/UPC |
|---|---|---|---|---|---|
| H036348BK-M61 | 14.960 | 380.000 | 3.56 | 90.50 | — |
| H036348BK-100 | 14.960 | 380.000 | 3.56 | 90.42 | 639789265463 |
| H036348BK | 14.960 | 380.000 | 3.56 | 90.50 | 639789322647 |
| H036340BK-100 | 12.400 | 315.000 | 3.03 | 76.96 | 639789275837 |

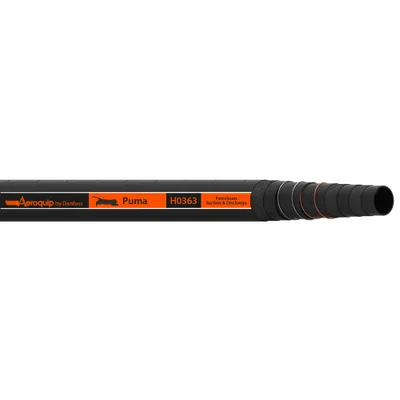

| H036340BK | 12.400 | 315.000 | 3.03 | 76.96 | 639789275691 |
| H036332RD-100 | 10.400 | 255.000 | 2.56 | 65.02 | 639789270542 |
| H036332BK-M61 | 10.400 | 255.000 | 2.56 | 65.02 | — |
| H036332BK-100 | 10.400 | 255.000 | 2.56 | 65.02 | 639789265432 |
| H036332BK | 10.040 | 255.000 | 2.56 | 65.00 | — |
| H036324BK-100 | 7.870 | 200.000 | 2.07 | 52.50 | 639789265418 |
| H036324BK | 7.870 | 200.000 | 2.07 | 52.50 | 639789272829 |
| H036320BK-100 | 7.480 | 190.000 | 1.77 | 44.96 | 639789275776 |
| H036320BK | 7.480 | 190.000 | 1.77 | 45.00 | 639789275783 |
| H036316BK-150 | 5.980 | 152.000 | 1.50 | 38.10 | 639789265371 |
| H036316BK-100 | 5.980 | 152.000 | 1.50 | 38.00 | 639789275424 |
| H036316BK | 5.980 | 152.000 | 1.50 | 38.00 | — |
| H036312BK-100 | 4.330 | 110.000 | 1.13 | 28.70 | 639789321497 |
| H036312BK | 4.330 | 110.000 | 1.13 | 28.80 | 639789265579 |
| H035064-150 | 15.940 | 405.000 | 4.66 | 118.36 | 639789270085 |
| H035048-100 | 12.520 | 318.000 | 3.63 | 92.20 | 639789274816 |
| H035032-100 | 5.000 | 127.000 | 2.63 | 66.80 | 639789298256 |
| H035032 | 5.000 | 127.000 | 2.63 | 66.80 | 639789275820 |
| H034964-100 | 11.000 | 279.400 | 4.59 | 116.59 | 639789269805 |
| H034964 | 11.000 | 279.400 | 4.59 | 116.59 | — |
Common to all listed parts
| Abrasion resistance | Standard |
| Compliances | ASTM D380 |
| Lay line style | Ink transfer |
| Vacuum rating (inHg) | 28 |
