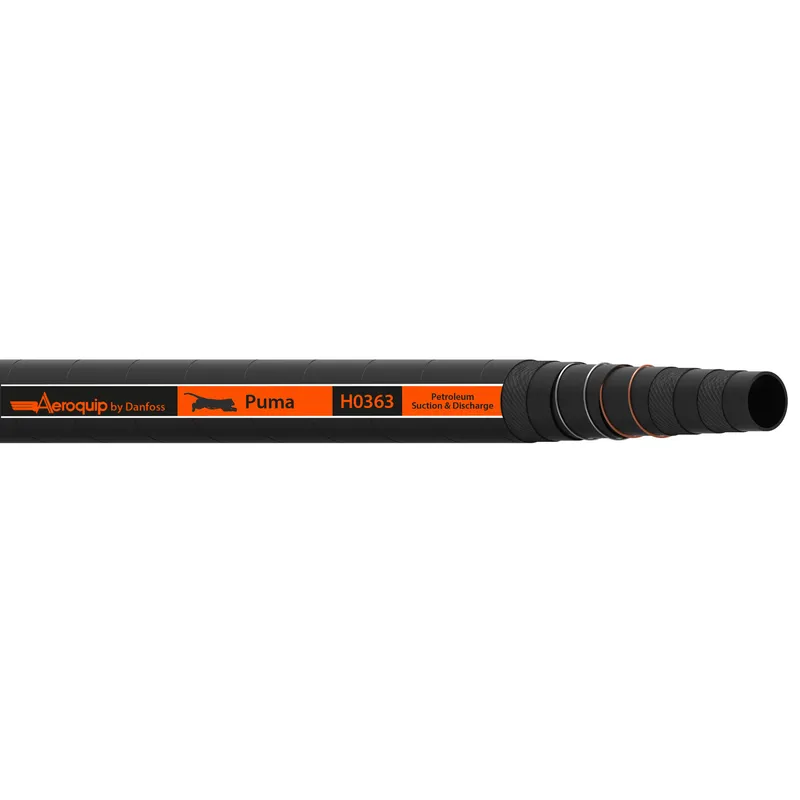

Danfoss H036332BK-M61

HOSE-BOS,H0363,-32,OIL/PETROL,BK,61M

MPN
H036332BK-M61
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H036332BK-M61?

Danfoss HOSE-BOS,H0363,-32,OIL/PETROL,BK,61M, manufacturer part number H036332BK-M61. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Abrasion resistanceStandard
ApplicationPetroleum transfer
Bend radius min (inch)10.400
Bend radius min (mm)255.000
BrandBoston by Danfoss
Burst pressure (bar)42
Burst pressure (psi)600
ColorBlack
CompliancesASTM D380
ConductivityConductive
Construction2 Wire Braid
Cover materialNitrile (NBR)
Inside diameter (inch)2.00
Inside diameter (mm)50.80
Lay line styleInk transfer
Length (in)2402.00000
Length (mm)61000.00000
Outside diameter (inch)2.56
Outside diameter (mm)65.02
Package formReel
Product height in2.000
Product height mm50.800
Product width in2.000
Product width mm50.800 mm
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH0363 Series
Size-32
Tube materialNitrile (NBR)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)11
Working pressure max (psi)150
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0
