Home / Hoses and fittings / Industrial hose and fittings

Industrial hose and fittings Parts

Danfoss

H030732-100

HOSE-BOS, H0307, -32, WATER, BK, 100FT

Danfoss

H030724-100

HOSE-BOS, H0307, -24, WATER, BK, 100FT

Danfoss

H010612RD-600R

HOSE-BOS, H0106, -12, WATER, RD, 600FT

Danfoss

H010612RD-250

HOSE-BOS, H0106, -12, WATER, RD, 250FT

Danfoss

H010610BK-600R

HOSE-BOS, H0106, -10, WATER, BK, 600FT

Danfoss

H010608RD-600R

HOSE-BOS, H0106, -8, WATER, RD, 600FT

Danfoss

H010608RD

HOSE-BOS, H0106, -8, WATER, RD, 50FT

Danfoss

H010608BK-600R

HOSE-BOS, H0106, -8, WATER, BK, 600FT

Danfoss

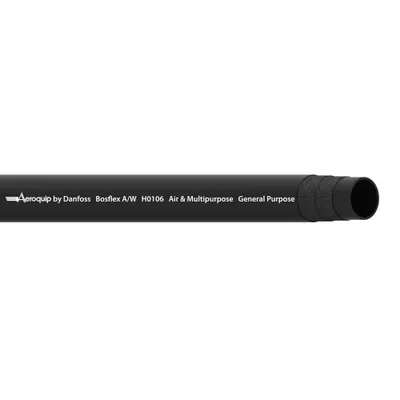

H010608BK-50RG

HOSE-BOS, H0106, -8, WATER, BK, 50FT

Danfoss

H010606RD-600R

HOSE-BOS, H0106, -6, WATER, RD, 600FT

Danfoss

H010606RD

HOSE-BOS, H0106, -6, WATER, RD, 50FT

Danfoss

H010606BK-600R

HOSE-BOS, H0106, -6, WATER, BK, 600FT

Danfoss

H010604RD-600R

HOSE-BOS, H0106, -4, WATER, RD, 600FT

Danfoss

H010604RD

HOSE-BOS, H0106, -4, WATER, RD, 50FT

Danfoss

H010604BK-600R

HOSE-BOS, H0106, -4, WATER, BK, 600FT

Danfoss

H010604BK-100RG

HOSE-BOS, H0106, -4, WATER, BK, 100FT

Danfoss

H010524BK-300R

HOSE-BOS, H0105, -24, WATER, BK, 300FT

Danfoss

H010520BK-300R

HOSE-BOS, H0105, -20, WATER, BK, 300FT

Danfoss

H010516RD-400R

HOSE-BOS, H0105, -16, WATER, RD, 400FT

Danfoss

H010516RD

HOSE-BOS, H0105, -16, WATER, RD, 50FT

Danfoss

H010516BK-400R

HOSE-BOS, H0105, -16, WATER, BK, 400FT

Danfoss

H010516BK

HOSE-BOS, H0105, -16, WATER, BK, 50FT

Danfoss

H010512RD-600R

HOSE-BOS, H0105, -12, WATER, RD, 600FT

Danfoss

H010512RD-100

HOSE-BOS, H0105, -12, WATER, RD, 100FT

Compare Industrial hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Bend radius min (mm)	Inside diameter (inch)	Inside diameter (mm)	Outside diameter (inch)
H030732-100	639789265234	249.936	2.00	50.80	2.31
H030724-100	639789269669	249.936	1.50	38.10	1.88
H010612RD-600R	639789281661	146.000	0.77	19.60	1.15
H010612RD-250	639789281678	146.000	0.77	19.60	1.15
H010610BK-600R	639789281777	133.400	0.63	16.00	0.93
H010608RD-600R	639789281951	114.200	0.51	13.00	0.81
H010608RD	639789281968	114.200	0.51	13.00	0.81
H010608BK-600R	639789281609	114.200	0.51	13.00	0.81
H010608BK-50RG	639789340344	114.200	0.51	13.00	0.81
H010606RD-600R	639789281708	89.000	0.38	9.70	0.68
H010606RD	639789281944	89.000	0.38	9.70	0.68
H010606BK-600R	639789281715	89.000	0.38	9.70	0.68
H010604RD-600R	639789281746	76.100	0.26	6.60	0.49
H010604RD	639789281821	76.100	0.26	6.60	0.49
H010604BK-600R	639789281753	76.100	0.26	6.60	0.49
H010604BK-100RG	678146038951	76.100	0.26	6.60	0.49
H010524BK-300R	639789289605	254.000	1.50	38.10	2.02
H010520BK-300R	639789289599	222.300	1.25	31.80	1.75
H010516RD-400R	639789281913	184.200	1.00	25.40	1.36
H010516RD	639789281920	184.200	1.00	25.40	1.36
H010516BK-400R	639789283214	184.200	1.00	25.40	1.36
H010516BK	639789281739	184.200	1.00	25.40	1.36
H010512RD-600R	639789281883	146.100	0.75	19.00	1.15
H010512RD-100	639789290250	146.100	0.75	19.00	1.15

Common to all listed parts

Abrasion resistance	Standard
Compliances	ASTM D380
Conductivity	Conductive
Cover material	EPDM
Reinforcement material	Fabric
Tube material	EPDM
