Danfoss H036332BK

HOSE-BOS,H0363,-32,OIL/PETROL,BK,100FT

MPN
H036332BK
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

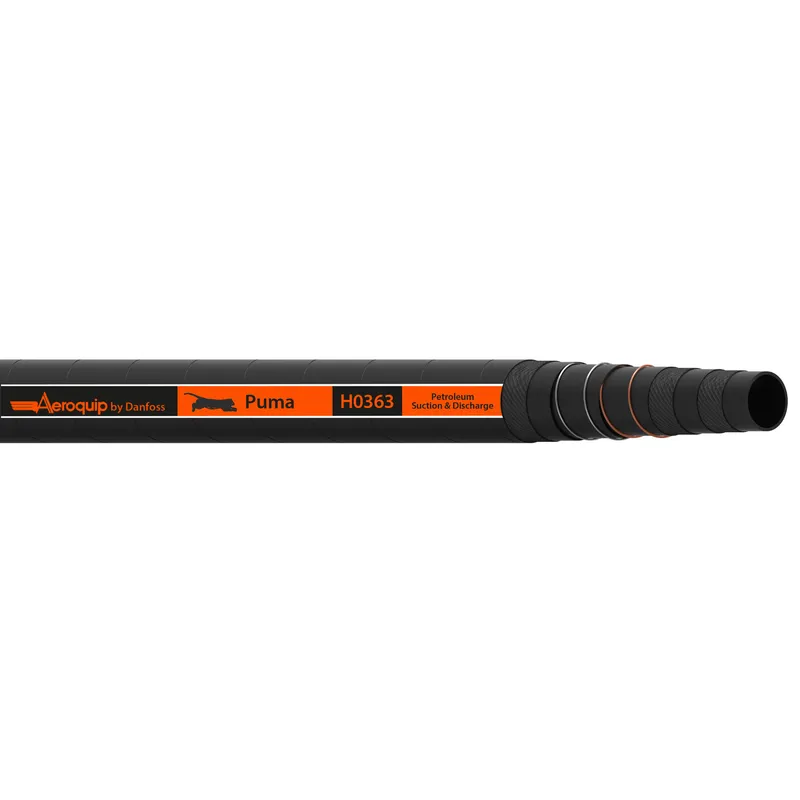

What is the Danfoss H036332BK?

Danfoss HOSE-BOS,H0363,-32,OIL/PETROL,BK,100FT, manufacturer part number H036332BK. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Abrasion resistanceStandard
ApplicationPetroleum transfer
Bend radius min (inch)10.040
Bend radius min (mm)255.000
BrandBoston by Danfoss
Burst pressure (bar)42
Burst pressure (psi)600
ColorBlack
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)2.00
Inside diameter (mm)50.80
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)2.56
Outside diameter (mm)65.00
Package formBulk
Product height in2.000
Product height mm50.800
Product width in2.000
Product width mm50.800 mm
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH0363 Series
Size-32
Tube materialNitrile (NBR)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.00
Working pressure max (bar)11
Working pressure max (psi)150
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H036332BK: frequently asked questions

When can H036332BK be shipped?

H036332BK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H036332BK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H036332BK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H036332BK, subject to availability and destination.
