Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| H036948RD-100 | 5.000 | 127.000 | 76.20 | 3.50 | 88.90 |
| H036496-100 | 27.560 | 700.000 | 152.40 | 6.61 | 167.89 |
| H036496 | 27.560 | 700.000 | 152.40 | 6.61 | 168.00 |
| H03648A | 13.390 | 340.000 | 76.20 | 3.50 | 89.00 |
| H036464-100 | 17.720 | 450.000 | 101.60 | 4.53 | 115.00 |
| H036464 | 17.720 | 450.000 | 101.60 | 4.53 | 115.00 |
| H036448-100 | 17.720 | 450.000 | 101.60 | 4.53 | 115.00 |
| H036448 | 13.390 | 340.000 | 76.20 | 3.50 | 89.00 |
| H036440-100 | — | — | 63.50 | 2.95 | 75.00 |
| H036440 | 10.630 | 270.000 | 63.50 | 2.95 | 75.00 |
| H036432-100 | 7.870 | 200.000 | 50.80 | 2.44 | 62.00 |
| H036432 | 7.870 | 200.000 | 50.80 | 2.44 | 62.00 |
| H036424-100 | — | — | 38.00 | 1.89 | 48.00 |
| H036424 | 5.310 | 135.000 | 38.10 | 1.89 | 48.01 |
| H036420-100 | 4.330 | 110.000 | 31.80 | 1.65 | 41.91 |
| H0364-20 | 4.330 | 110.000 | 31.80 | 1.65 | 42.00 |
| H036396BK-25 | 30.710 | 780.000 | 152.40 | 6.83 | 173.48 |
| H036396BK-100 | 30.710 | 780.000 | 152.40 | 6.83 | 173.48 |
| H036396BK | 30.710 | 780.000 | 152.40 | 6.85 | 174.00 |
| H03638ABK | 43.310 | 1100.000 | 203.00 | 8.93 | 226.82 |

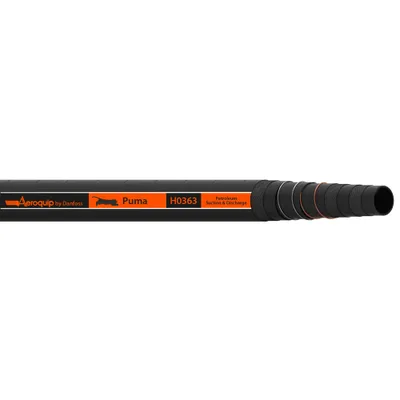

| H036364BK-M61 | 20.080 | 510.000 | 101.60 | 4.57 | 116.08 |
| H036364BK-100 | 20.080 | 510.000 | 101.60 | 4.57 | 116.08 |
| H036364BK | 20.080 | 510.000 | 101.60 | 4.57 | 116.20 |
| H036348RD-100 | 14.960 | 380.000 | 76.20 | 3.56 | 90.42 |
