Thermoplastic hydraulic hose and fittings Parts
Compare Thermoplastic hydraulic hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Hose cut off factor IN | Hose cut off factor MM | A dimension IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 4T12MC12 | 1.750 | 44.450 | — | — | — |
| 4T12LMB6 | 1.540 | 39.200 | 2.540 | 2.755 | 70.000 |
| 4T12LM6 | 1.380 | 35.100 | 2.380 | 2.378 | 60.400 |
| 4T12LM5 | 1.350 | 34.200 | 2.290 | 2.287 | 58.100 |
| 4T12LM4 | 1.680 | 42.600 | 2.600 | 2.598 | 66.000 |

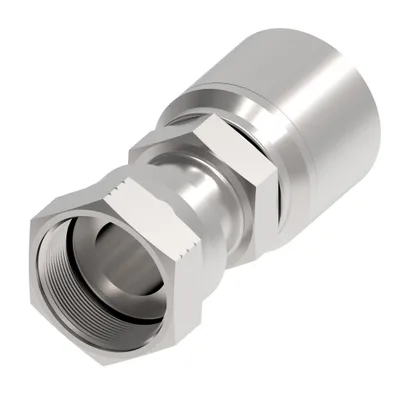

| 4T12FR12 | 1.720 | 43.688 | — | — | — |

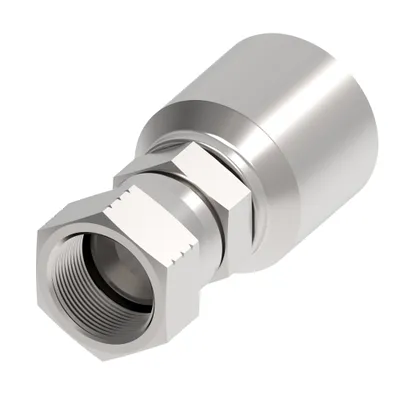

| 4T12FJ12 | 1.650 | 41.900 | 2.800 | 2.834 | 72.000 |
| 4T12FJ10 | 1.570 | 39.800 | 2.710 | 2.716 | 69.000 |

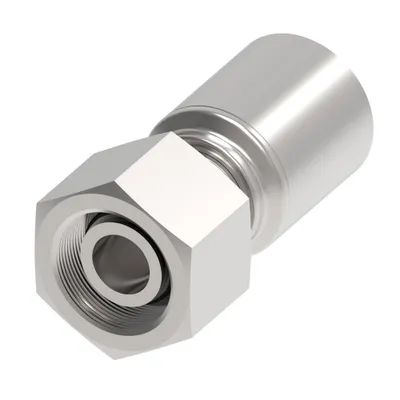

| 4T12DS8 | 1.290 | 32.700 | 2.460 | 2.559 | 65.000 |

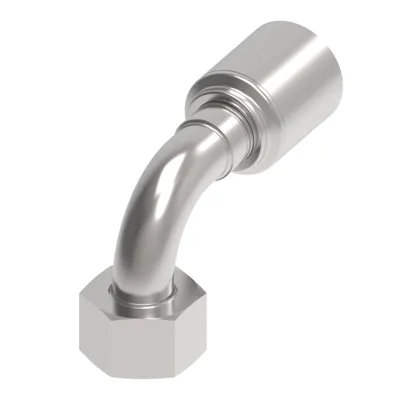

| 4T12DLB8 | 1.800 | 45.600 | 2.960 | 3.818 | 97.000 |

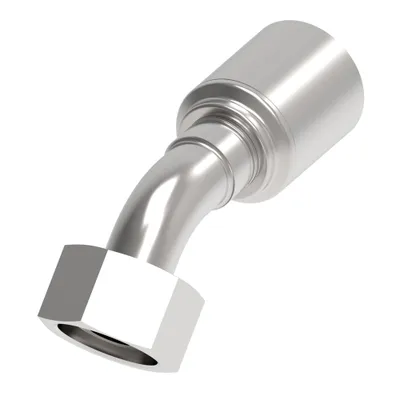

| 4T12DLA8 | 2.100 | 53.300 | 3.270 | 3.543 | 90.000 |

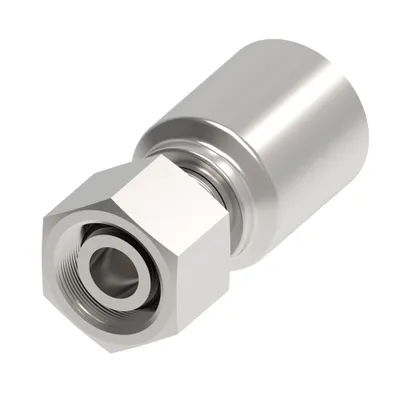

| 4T12DL6R7 | 1.090 | 27.686 | — | 2.160 | 54.864 |

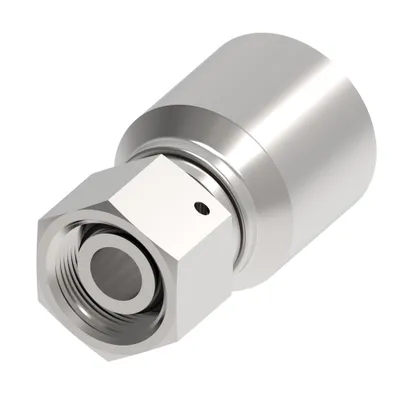

| 4T12DL10 | 1.050 | 26.700 | 2.210 | 2.283 | 58.000 |

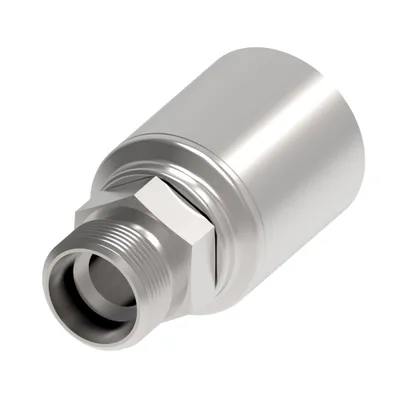

| 4T12DK8 | 1.040 | 26.300 | 2.200 | 2.204 | 56.000 |

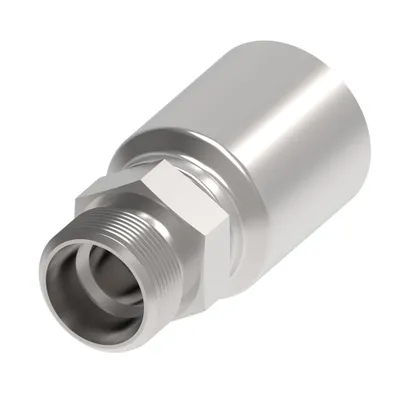

| 4T12DK6 | 0.990 | 25.200 | 1.990 | 1.988 | 50.500 |

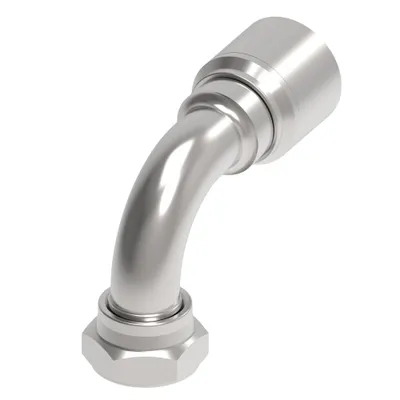

| 4T12BFB12 | 2.050 | 52.000 | 3.240 | 3.870 | 98.298 |

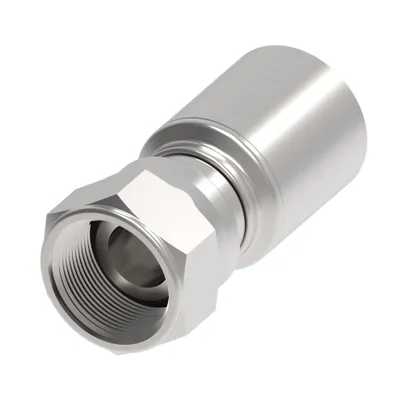

| 4T12BF8 | 0.980 | 25.000 | 2.150 | 2.362 | 60.000 |

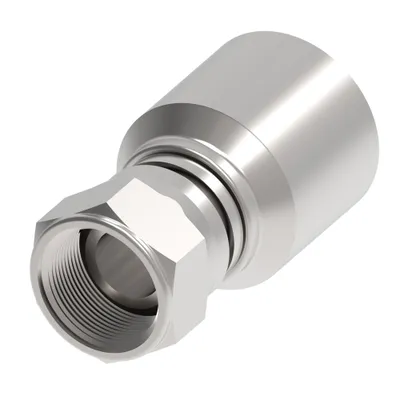

| 4T12BF12 | 1.000 | 25.300 | 2.190 | 2.401 | 61.000 |
| 4T12BF10 | 0.980 | 24.900 | 2.140 | 2.165 | 55.000 |
Common to all listed parts
| Construction Style | Crimp |
| Thread sealant | No |
