Danfoss 4T12DS8

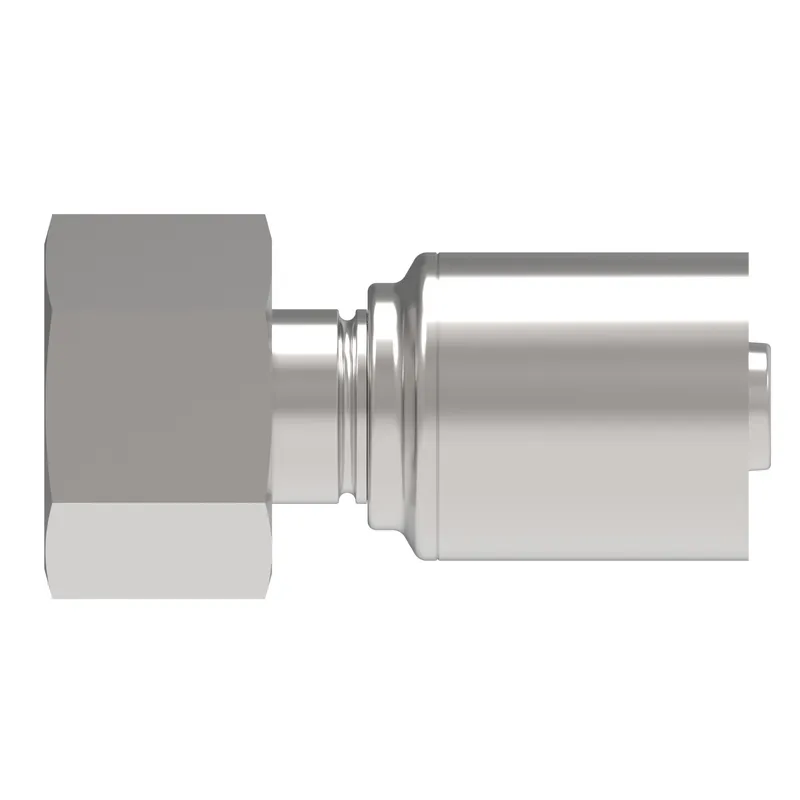

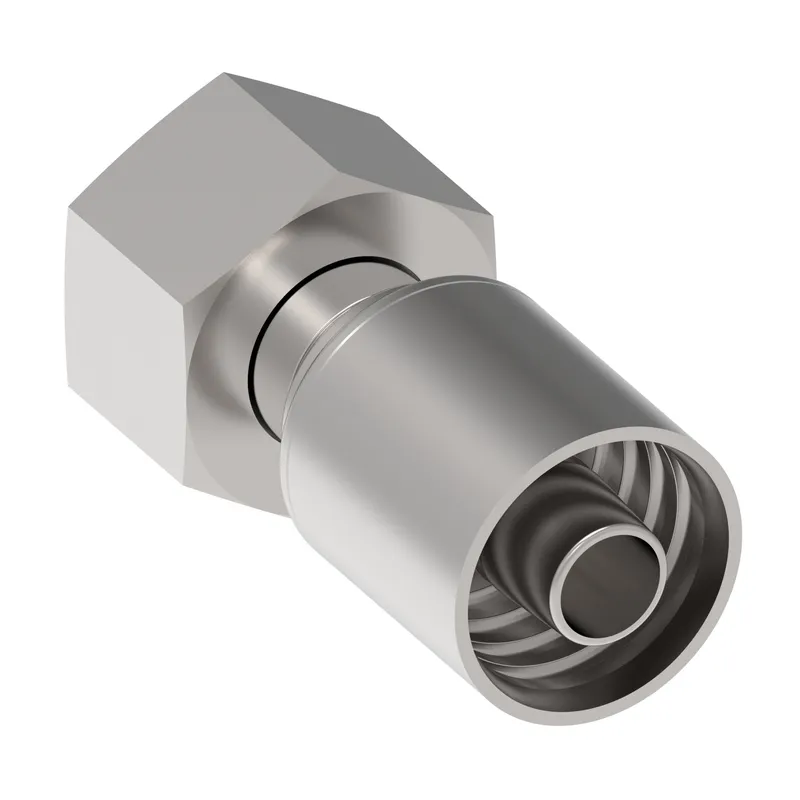

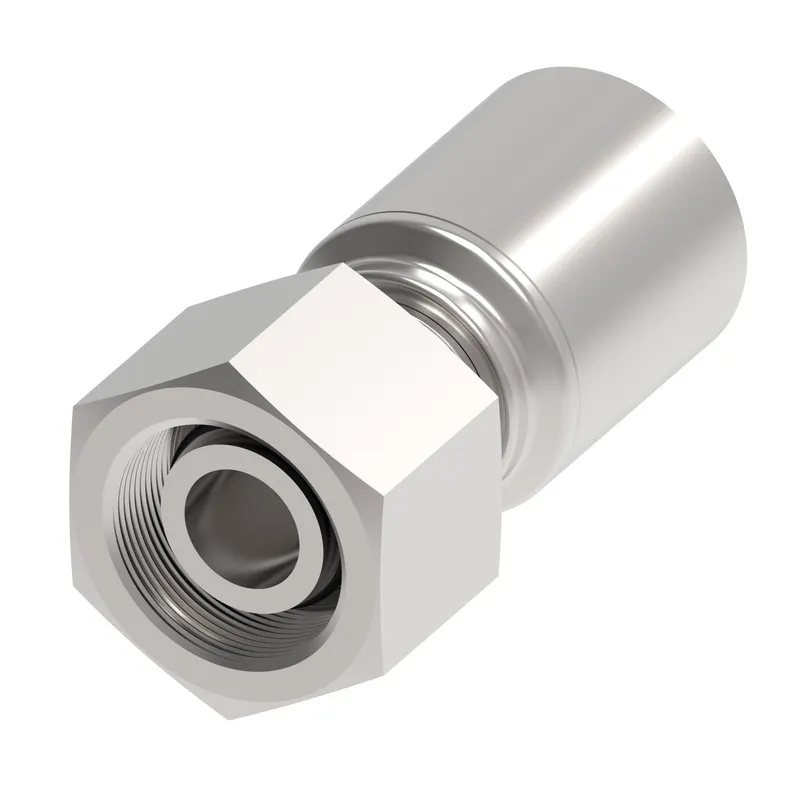

HOSE FTG, 4T/08, DKOH-B/12, CS, STR

MPN: 4T12DS8
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12DS8?

Danfoss HOSE FTG, 4T/08, DKOH-B/12, CS, STR, manufacturer part number 4T12DS8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.460
A dimension MM	62.400
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-12
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.188
Hex size 1 MM	30.000
Hose cut off factor IN	1.290
Hose cut off factor MM	32.700
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.181
Product height mm	30.000
Product length in	2.559
Product length mm	65.000
Product material	Carbon steel
Product width in	1.181
Product width mm	30.000 mm
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M24x1.5
Working pressure max BAR	330
Working pressure max PSI	4800
