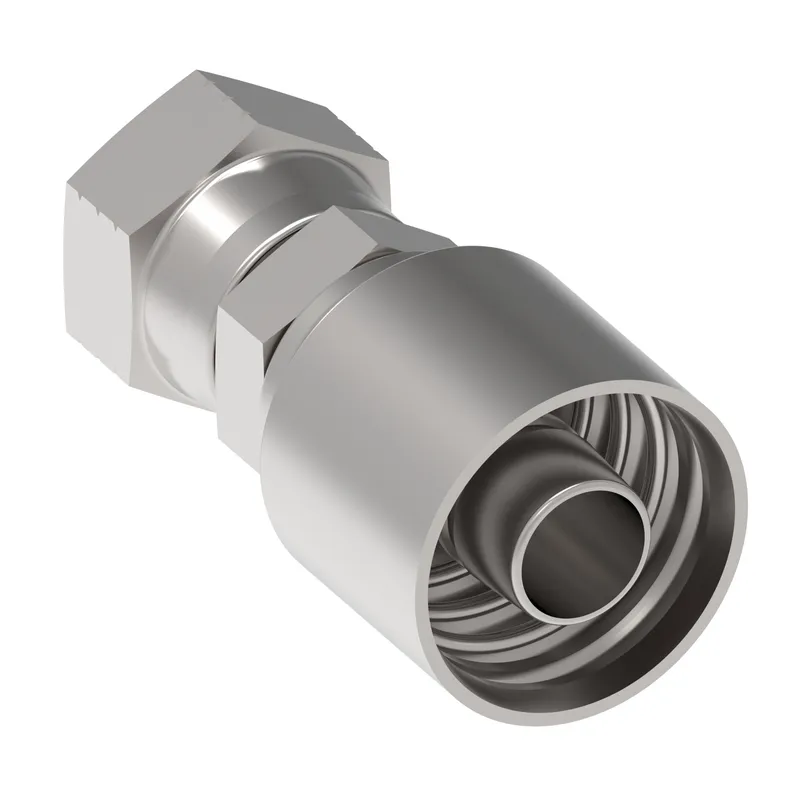

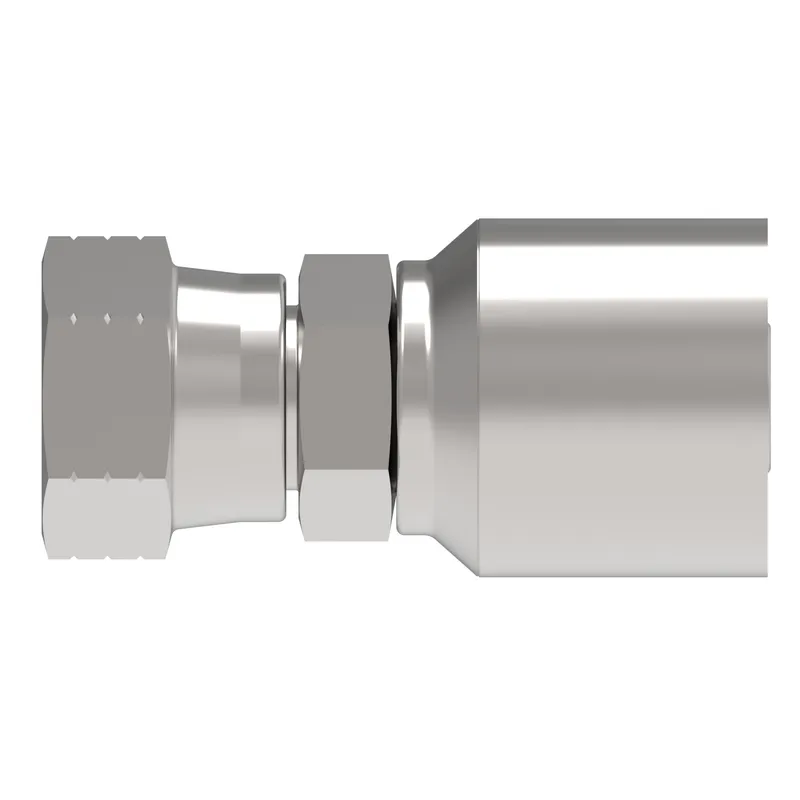

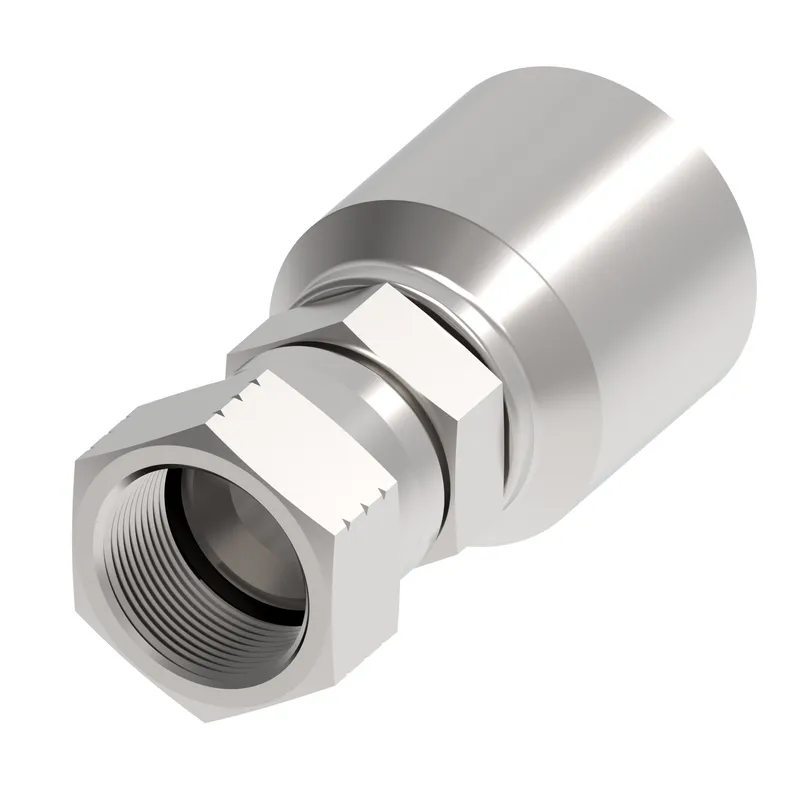

Danfoss 4T12FJ10

HOSE FTG, 4T/10, JIC-F/12, CS, STR

MPN: 4T12FJ10
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12FJ10?

Danfoss HOSE FTG, 4T/10, JIC-F/12, CS, STR, manufacturer part number 4T12FJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.710
A dimension MM	68.900
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	15.875
Construction Style	Crimp
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.0
Hex size 2 IN	1.062
Hex size 2 MM	27.0
Hose cut off factor IN	1.570
Hose cut off factor MM	39.800
Hose size	-10
Inside diameter IN	0.5000
Inside diameter MM	12.8000
Product height in	1.259
Product height mm	32.000
Product length in	2.716
Product length mm	69.000
Product material	Carbon steel
Product width in	1.259
Product width mm	32.000 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
