Danfoss 4T12BFB12

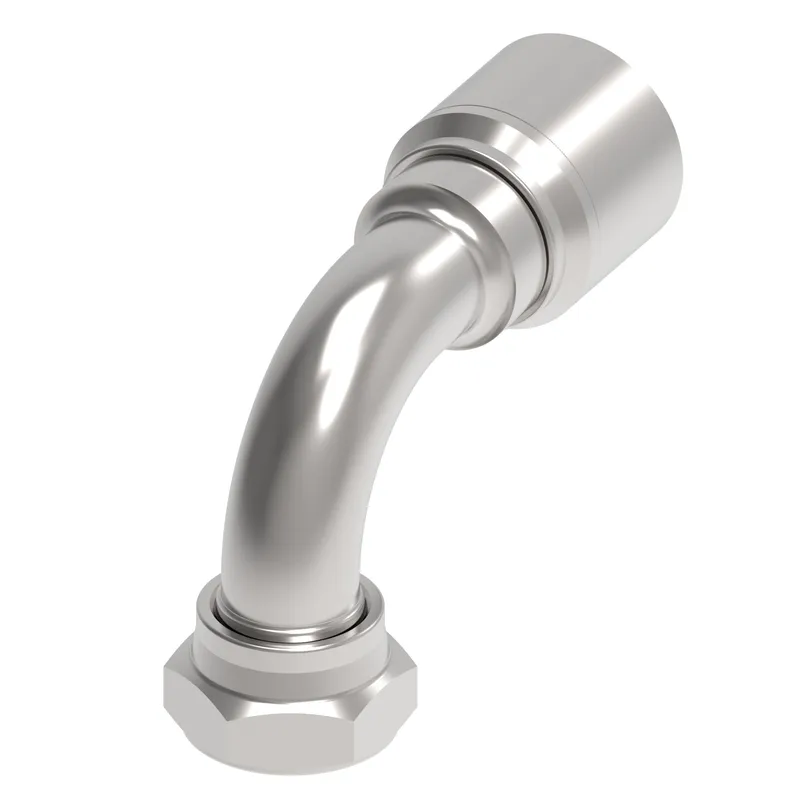

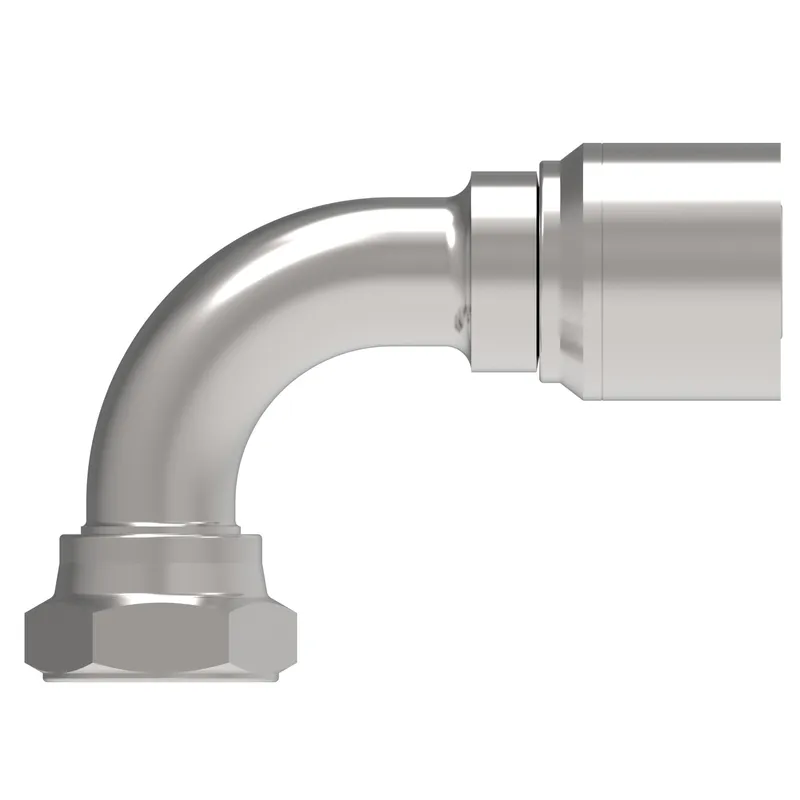

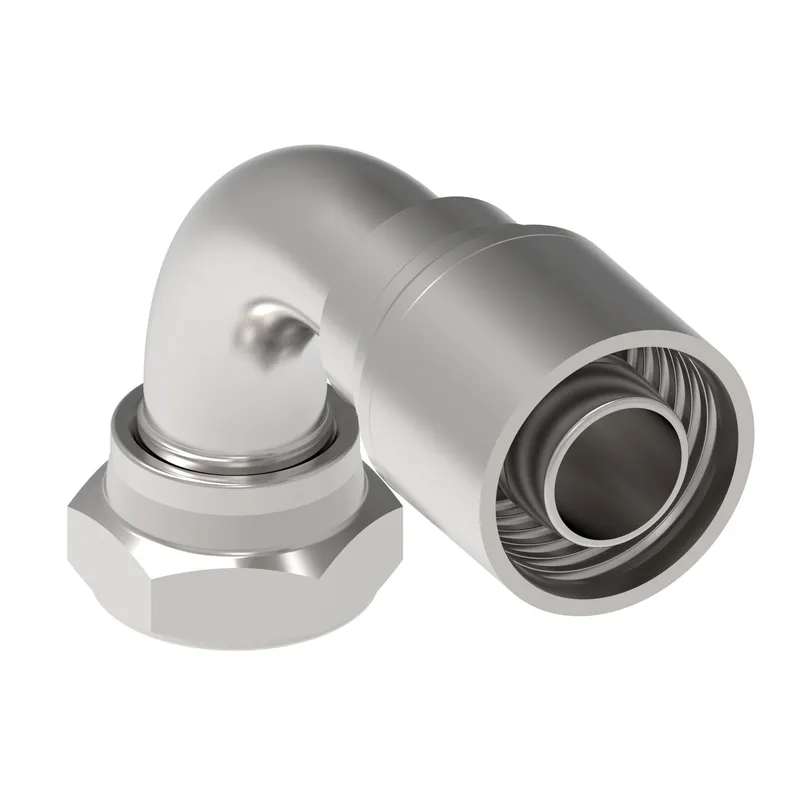

HOSE FTG, 4T/12, BF/12, CS, 90D

MPN: 4T12BFB12
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12BFB12?

Danfoss HOSE FTG, 4T/12, BF/12, CS, 90D, manufacturer part number 4T12BFB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.240
A dimension MM	82.200
Angle shape	90 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
Drop dimension IN	1.870
Drop dimension MM	47.50
End size 1	-12
End type 1	Female BSPP swivel
Finish plating	Protective oil
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hose cut off factor IN	2.050
Hose cut off factor MM	52.000
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	2.720
Product height mm	69.088
Product length in	3.870
Product length mm	98.298
Product material	Carbon steel
Product width in	1.300
Product width mm	33.020 mm
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	215
Working pressure max PSI	3125

4T12BFB12: frequently asked questions

When can 4T12BFB12 be shipped?

4T12BFB12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T12BFB12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T12BFB12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T12BFB12, subject to availability and destination.
