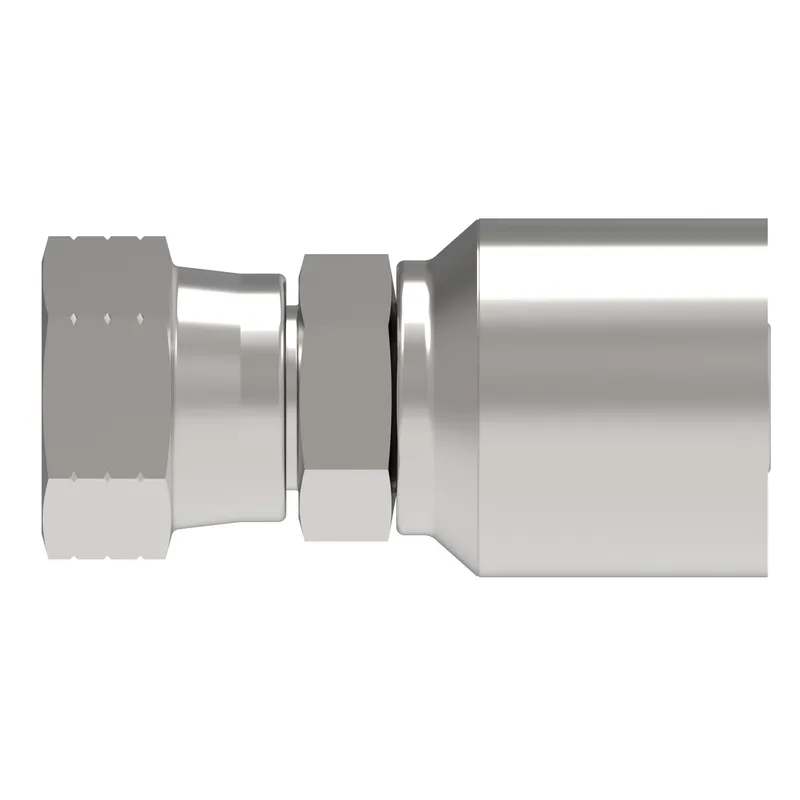

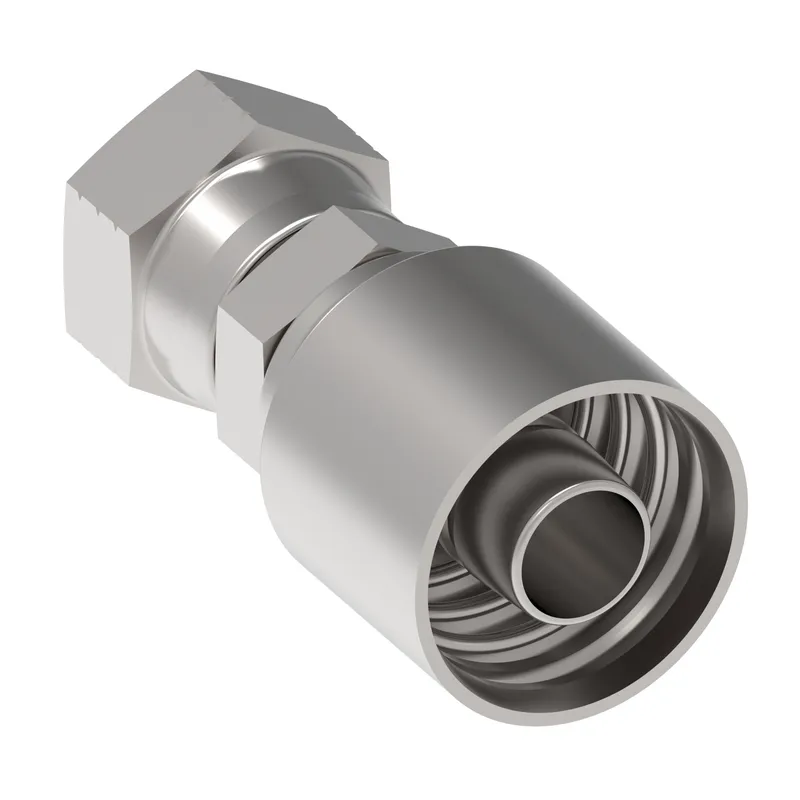

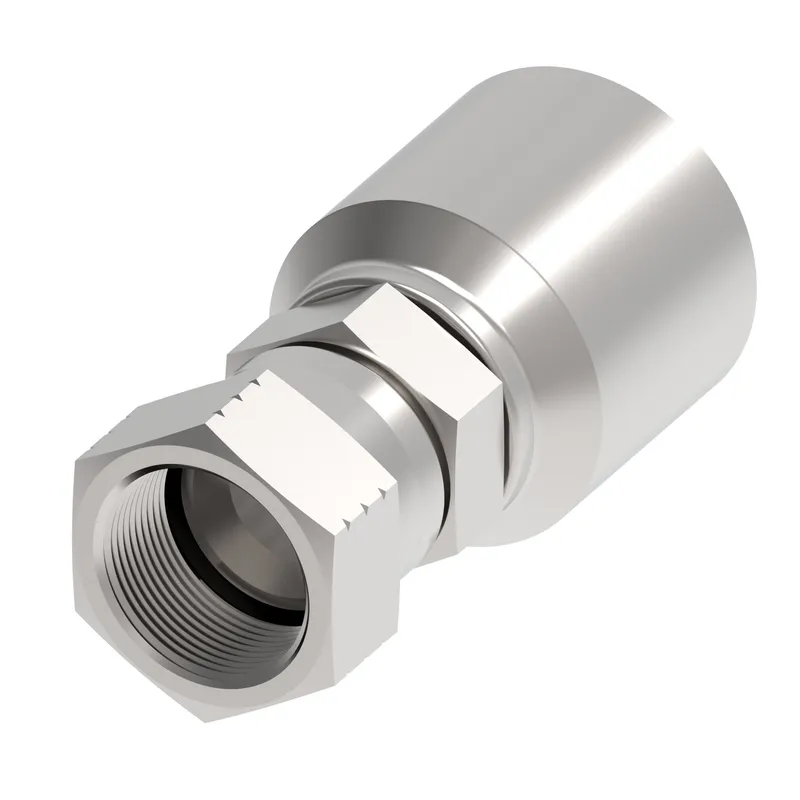

Danfoss 4T12FJ12

HOSE FTG, 4T/12, JIC-F/12, CS, STR

MPN: 4T12FJ12
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12FJ12?

Danfoss HOSE FTG, 4T/12, JIC-F/12, CS, STR, manufacturer part number 4T12FJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.800
A dimension MM	71.100
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hex size 2 IN	1.181
Hex size 2 MM	30.000
Hose cut off factor IN	1.650
Hose cut off factor MM	41.900
Hose size	-12
Inside diameter IN	0.6100
Inside diameter MM	15.5000
Product height in	1.259
Product height mm	32.000
Product length in	2.834
Product length mm	72.000
Product material	Carbon steel
Product width in	1.259
Product width mm	32.000 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330
Working pressure max PSI	4800

4T12FJ12: frequently asked questions

When can 4T12FJ12 be shipped?

4T12FJ12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T12FJ12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T12FJ12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T12FJ12, subject to availability and destination.
