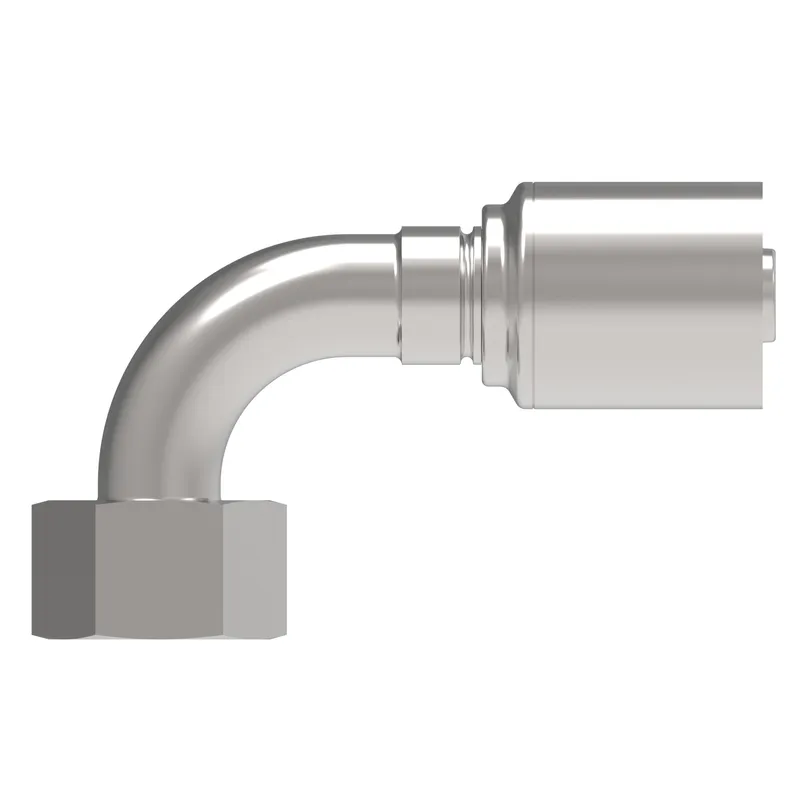

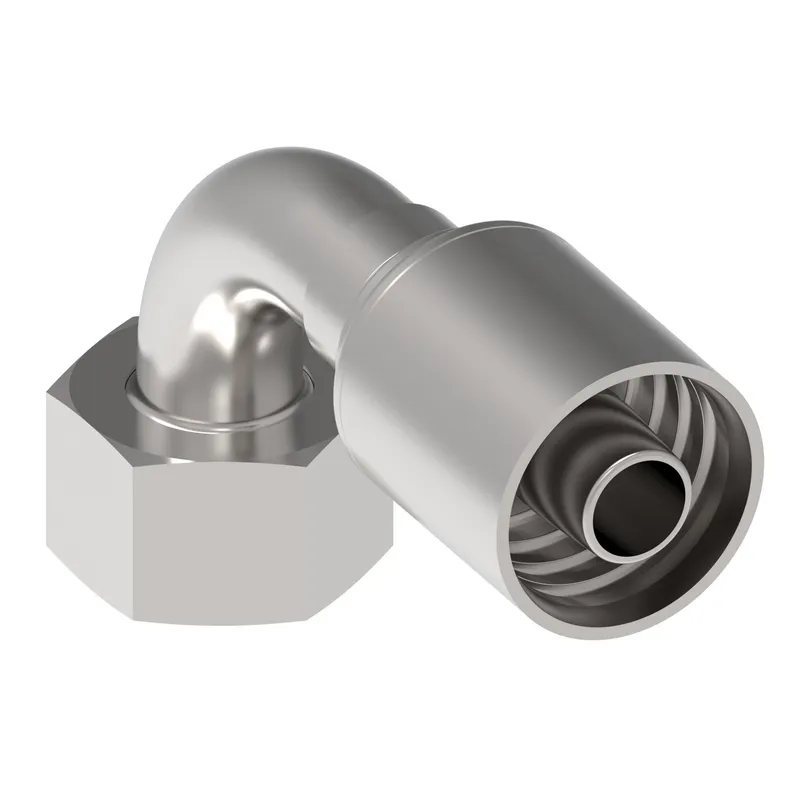

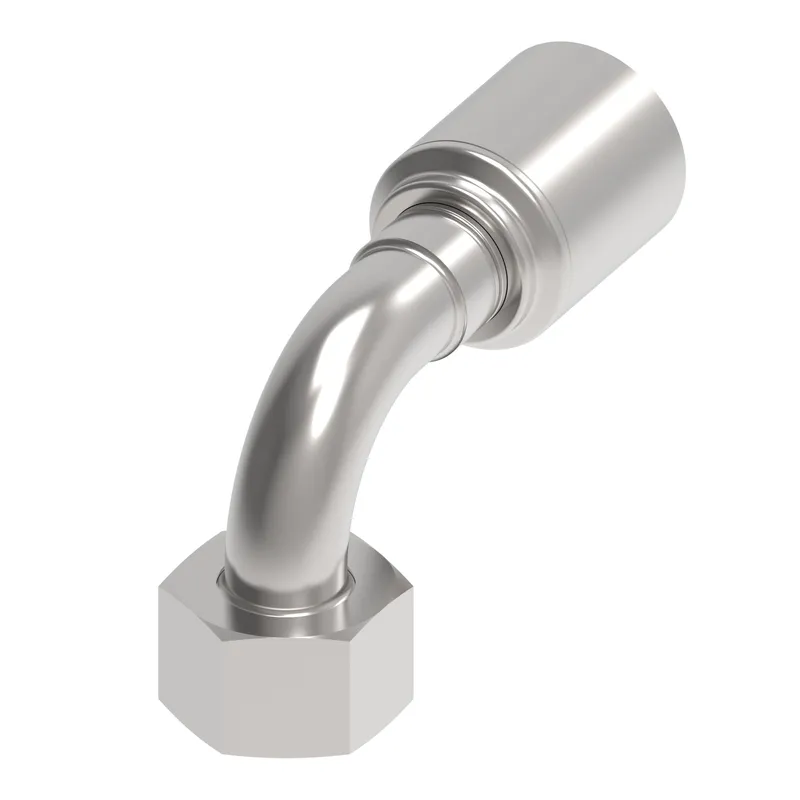

Danfoss 4T12DLB8

HOSE FTG, 4T/08, DKOL/12, CS, 90D

MPN: 4T12DLB8
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T12DLB8?

Danfoss HOSE FTG, 4T/08, DKOL/12, CS, 90D, manufacturer part number 4T12DLB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.960
A dimension MM	75.300
Angle shape	90 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.570
Drop dimension MM	40.00
End size 1	-12
End type 1	24 deg. DKO swivel light duty
Finish plating	Protective oil
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.800
Hose cut off factor MM	45.600
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	2.362
Product height mm	60.000
Product length in	3.818
Product length mm	97.000
Product material	Carbon steel
Product width in	0.787
Product width mm	20.000 mm
Thread sealant	No
Thread size 1	M22X1.5
Working pressure max BAR	215
Working pressure max PSI	3125

4T12DLB8: frequently asked questions

When can 4T12DLB8 be shipped?

4T12DLB8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T12DLB8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T12DLB8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T12DLB8, subject to availability and destination.
