Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product width in | Product width mm | Product length in |
|---|---|---|---|---|---|
| 2661-12-06000 | 0.750 | 19.000 | 0.750 | 19 | — |
| 2661-12 | 0.750 | 19.000 | 0.750 | 19 | — |
| 259-4103-8-4 | 1.010 | 25.654 | 0.880 | 22.352 | 2.420 |

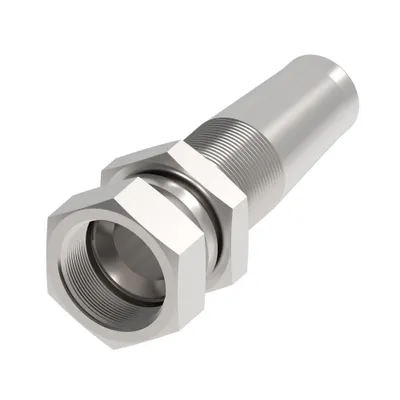

| 259-4103-4-6-4 | 0.790 | 20.066 | 0.690 | 17.526 | 2.730 |
| 259-4103-12 | 1.440 | 36.576 | 1.250 | 31.75 | 3.320 |
| 259-4010-8 | 1.290 | 32.766 | 1.130 | 28.702 | 2.010 |
| 259-4010-4 | 0.940 | 23.876 | 0.810 | 20.574 | 1.730 |
| 2583-8 | 0.500 | 12.700 | 0.500 | 12.7 | — |
| 2583-6 | 0.380 | 9.500 | 0.380 | 9.5 | — |
| 2583-4 | 0.250 | 6.400 | 0.250 | 6.4 | — |

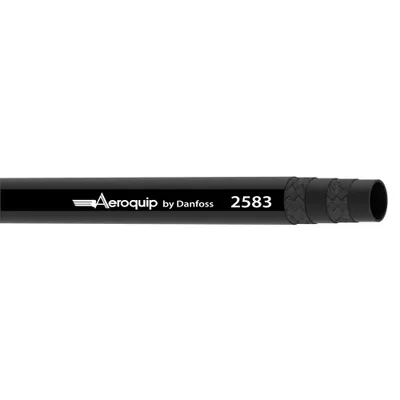

| 2583-20 | 1.250 | 31.800 | 1.250 | 31.8 | — |
| 2583-16 | 1.000 | 25.400 | 1.000 | 25.4 | — |
| 2583-12 | 0.750 | 19.000 | 0.750 | 19 | — |
| 24291Y-24-24TZ | 5.553 | 141.046 | 2.696 | 68.478 | 8.165 |
| 24291Y-20-20WZ | 3.937 | 100.000 | 2.322 | 59 | 5.787 |
| 24291Y-16-16TZ | 3.831 | 97.307 | 1.614 | 40.996 | 5.685 |
| 24291Y-12-12Z | 4.124 | 104.750 | 1.417 | 35.992 | 4.803 |
| 24291Y-12-12CNZ | 3.800 | 96.520 | 1.420 | 36.068 | 4.800 |
| 24291Y-12-10TZ | 2.027 | 51.500 | 1.299 | 33 | 3.543 |
| 24291Y-10-10Z | 3.563 | 90.500 | 1.181 | 29.997 | 4.134 |
| 24291Y-10-10CNZ | 3.240 | 82.296 | 1.180 | 29.972 | 4.130 |
| 24291Y-10-08TZ | 2.380 | 60.452 | 1.180 | 29.972 | 3.440 |
| 24291Y-08-08Z | 3.081 | 78.257 | 1.063 | 27 | 3.385 |
| 24291Y-08-08CNZ | 2.830 | 71.882 | 1.220 | 30.988 | 3.380 |
