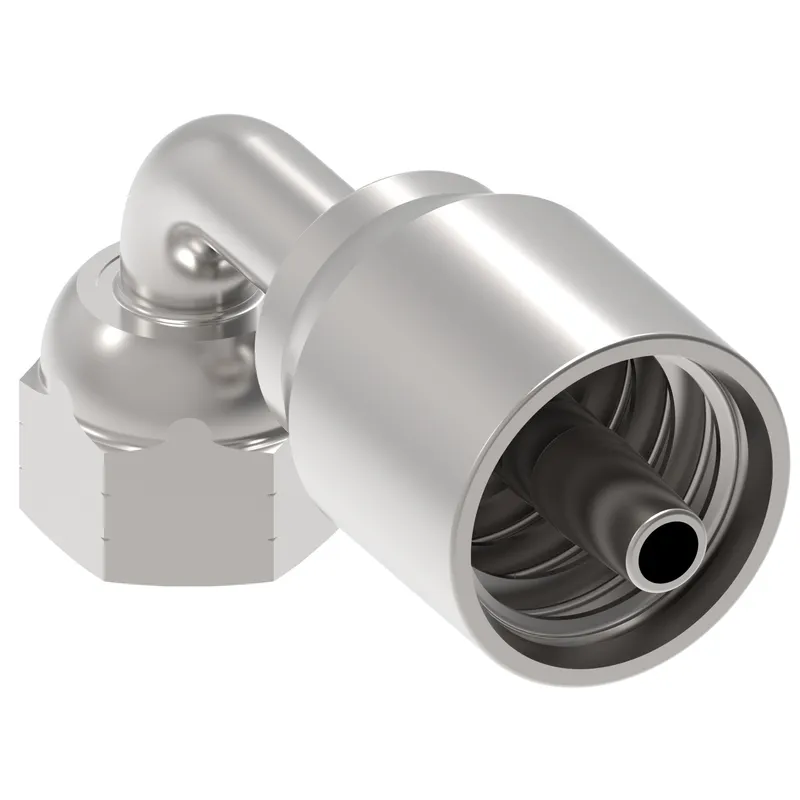

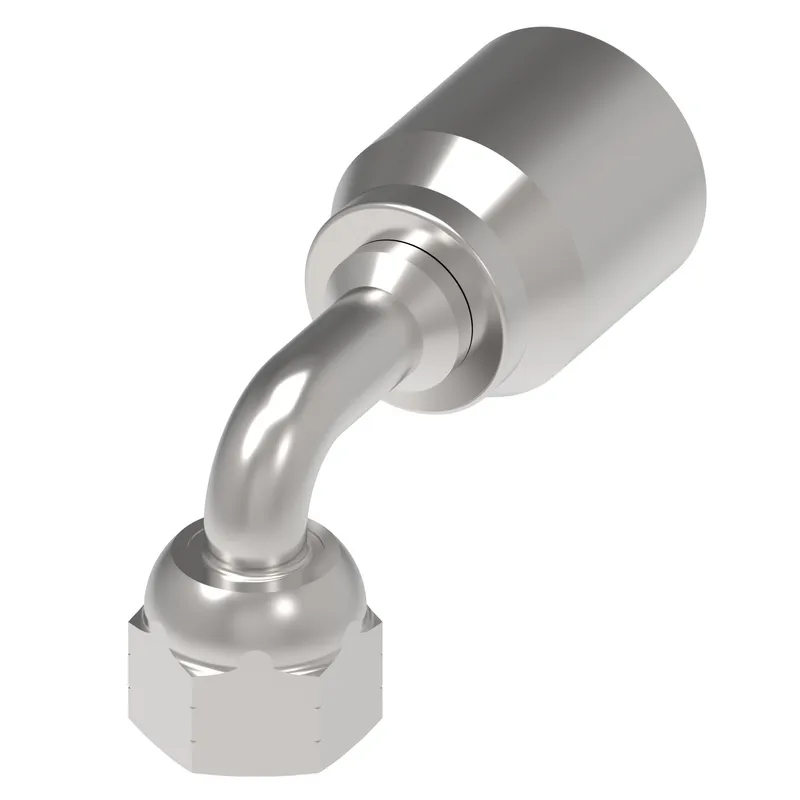

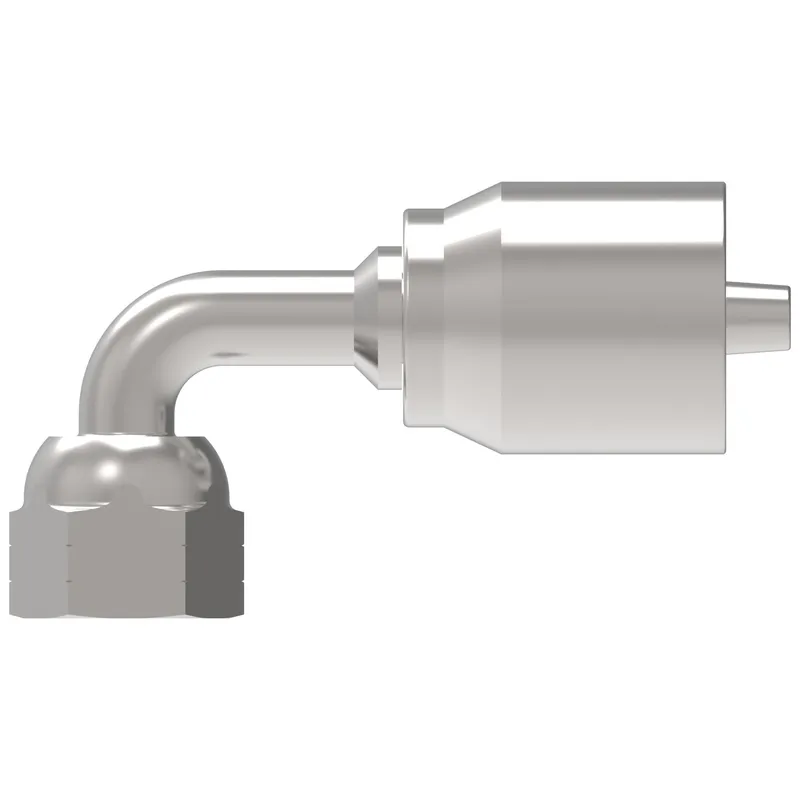

Danfoss 24291Y-08-08CNZ

HOSE NIPPLE, 2P/08, ORS-F/08, CS, 90D

MPN
24291Y-08-08CNZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291Y-08-08CNZ?

Danfoss HOSE NIPPLE, 2P/08, ORS-F/08, CS, 90D, manufacturer part number 24291Y-08-08CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.850
A dimension MM72.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
Drop dimension IN2.260
Drop dimension MM57.50
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hose cut off factor IN1.614
Hose cut off factor MM41.000
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in2.830
Product height mm71.882
Product length in3.380
Product length mm85.852
Product materialCarbon steel
Product width in1.220
Product width mm30.988
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100

24291Y-08-08CNZ: frequently asked questions

When can 24291Y-08-08CNZ be shipped?

24291Y-08-08CNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291Y-08-08CNZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291Y-08-08CNZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291Y-08-08CNZ, subject to availability and destination.
