Braided hose and fittings Parts

Danfoss

26711-08-08SV

HOSE NIPPLE ASSY,2P/08,JIC-F/08,AP,STR

Danfoss

26711-08-07Z

HOSE NIPPLE ASSY,2P/07,JIC-F/08,CS,STR

Danfoss

26711-08-06ZN

HOSE NIPPLE ASSY,2P/06,JIC-F/08,CS,STR

Danfoss

26711-08-06ZF

HOSE NIPPLE ASSY,2P/06,JIC-F/08,CS,STR

Danfoss

26711-08-06TZ

HOSE NIPPLE ASSY,2P/06,JIC-F/08,CS,STR

Danfoss

26711-08-04TZN

HOSE NIPPLE ASSY,2P/04,JIC-F/08,CS,STR

Danfoss

26711-08-04TZ

HOSE NIPPLE ASSY,2P/04,JIC-F/08,CS,STR

Danfoss

26711-06-08Z

HOSE NIPPLE ASSY,2P/08,JIC-F/06,CS,STR

Danfoss

26711-06-08WZ

HOSE NIPPLE ASSY,2P/08,JIC-F/06,CS,STR

Danfoss

26711-06-06ZN

HOSE NIPPLE ASSY,2P/06,JIC-F/06,CS,STR

Danfoss

26711-06-06ZF

HOSE NIPPLE ASSY,2P/06,JIC-F/06,CS,STR

Danfoss

26711-06-05Z

HOSE NIPPLE ASSY,2P/05,JIC-F/06,CS,STR

Danfoss

26711-06-04ZN

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

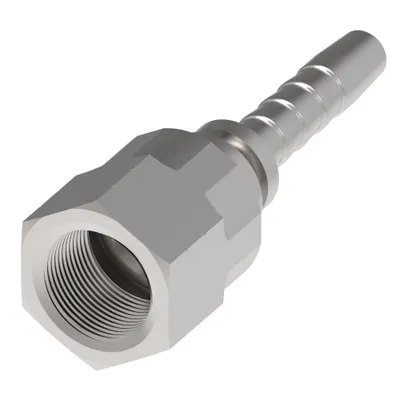

26711-06-04ZF

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

26711-06-04TZ

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

26711-05-06Z

HOSE NIPPLE ASSY,2P/06,JIC-F/05,CS,STR

Danfoss

26711-05-05Z

HOSE NIPPLE ASSY,2P/05,JIC-F/05,CS,STR

Danfoss

26711-05-03TZ

HOSE NIPPLE ASSY,2P/03,JIC-F/05,CS,STR

Danfoss

26711-04-06Z

HOSE NIPPLE ASSY,2P/06,JIC-F/04,CS,STR

Danfoss

26711-04-05Z

HOSE NIPPLE ASSY,2P/05,JIC-F/04,CS,STR

Danfoss

26711-04-04ZN

HOSE NIPPLE ASSY,2P/04,JIC-F/04,CS,STR

Danfoss

26711-04-04ZF

HOSE NIPPLE ASSY,2P/04,JIC-F/04,CS,STR

Danfoss

26711-04-03Z

HOSE NIPPLE ASSY,2P/03,JIC-F/04,CS,STR

Danfoss

26710-12-12Z

HOSE NIPPLE ASSY,2P/12,JIC-F/12,CS,STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
26711-08-08SV	1.969	50.000	0.728	2.370	60.198
26711-08-07Z	1.870	47.500	0.688	2.303	58.490
26711-08-06ZN	1.870	47.500	0.688	2.283	57.988
26711-08-06ZF	1.867	47.500	0.688	1.870	47.498
26711-08-06TZ	1.850	47.000	0.669	2.283	57.988
26711-08-04TZN	1.712	43.500	0.610	1.710	43.434
26711-08-04TZ	1.712	43.500	0.610	2.145	54.483
26711-06-08Z	1.870	47.500	0.629	2.263	57.480
26711-06-08WZ	2.019	51.300	0.779	2.413	61.290
26711-06-06ZN	1.791	45.500	0.610	2.185	55.499
26711-06-06ZF	1.790	45.500	0.610	1.790	45.466
26711-06-05Z	1.712	43.500	0.610	2.106	53.492
26711-06-04ZN	1.712	43.500	0.610	1.710	43.434
26711-06-04ZF	1.710	43.500	0.609	1.710	43.434
26711-06-04TZ	1.673	42.500	0.570	2.066	52.476
26711-05-06Z	1.791	45.500	0.610	1.800	45.720
26711-05-05Z	1.712	43.500	0.610	2.086	52.984
26711-05-03TZ	1.417	36.000	0.590	1.791	45.491
26711-04-06Z	1.751	44.500	0.570	2.106	53.492
26711-04-05Z	1.692	43.000	0.590	1.690	42.926
26711-04-04ZN	1.692	43.000	0.590	2.047	51.994
26711-04-04ZF	1.690	43.000	0.590	1.690	42.926
26711-04-03Z	1.397	35.500	0.551	1.751	44.475
26710-12-12Z	2.188	55.600	0.669	2.759	70.079

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
End Type 1	Female 37 degree swivel
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
