HOSE NIPPLE, 2R/03, JIC-F/03, AP, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 259-4103-12 be shipped?
259-4103-12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 259-4103-12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 259-4103-12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 259-4103-12, subject to availability and destination.

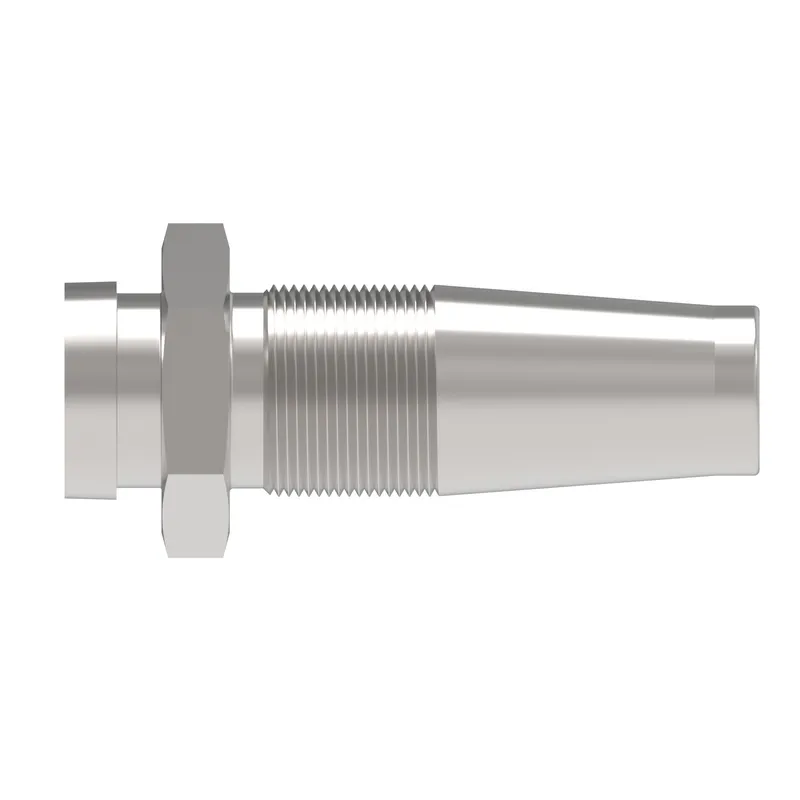

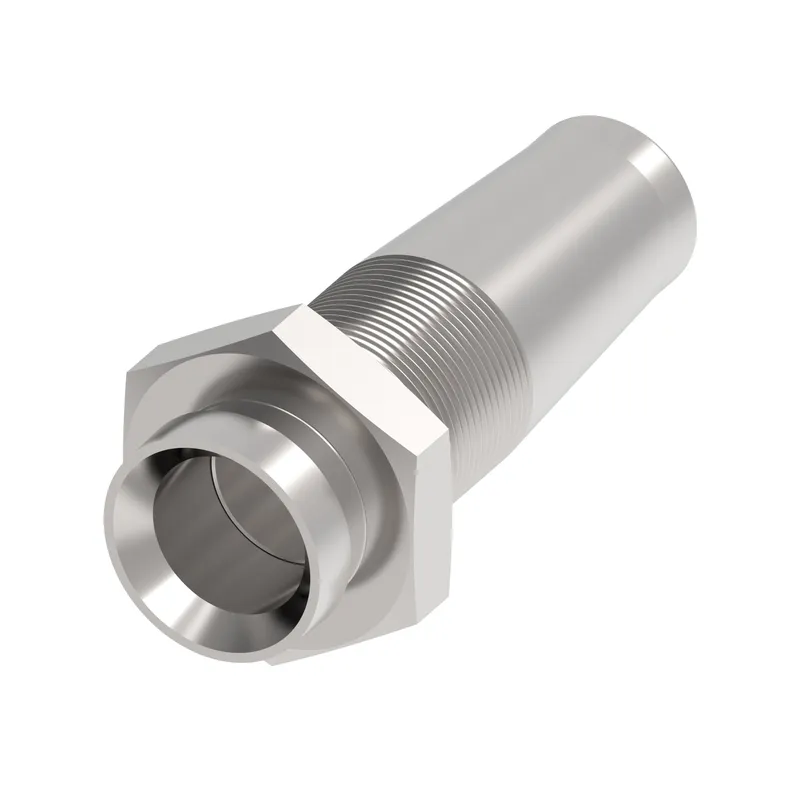

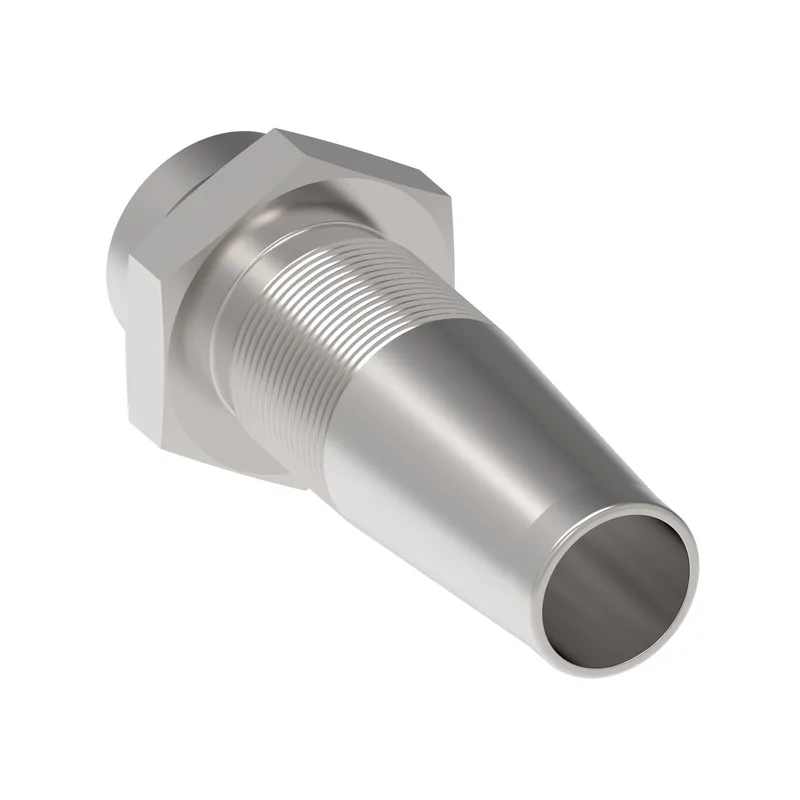

Danfoss HOSE NIPPLE, 2R/03, JIC-F/03, AP, STR, manufacturer part number 259-4103-12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.320 |
| A dimension MM | 84.320 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.190 |
| Compatible hose ID MM | 19.050 |
| Compatible hoses | 1509 |
| Construction Style | Reusable |
| End size 1 | -3 |
| End size 2 | -10 |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Passivate |
| Hex size 1 IN | 1.259 |
| Hex size 1 MM | 32.000 |
| Hose cut off factor IN | 0.813 |
| Hose cut off factor MM | 20.650 |
| Hose size | -12 |
| Inside diameter IN | 0.600 |
| Inside diameter MM | 15.240 |
| Product height in | 1.440 |
| Product height mm | 36.576 |
| Product length in | 3.320 |
| Product length mm | 84.328 |
| Product material | 316 Stainless steel |
| Product width in | 1.250 |
| Product width mm | 31.75 |
| Thread sealant | No |
