Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product width in | Product width mm | Bend radius min (inch) |
|---|---|---|---|---|---|
| 26710-12-12SR | 1.450 | 36.830 | 1.260 | 32.004 | — |
| 26710-10-10Z | 1.220 | 30.988 | 1.062 | 26.975 | — |
| 26710-10-08Z | 1.220 | 30.988 | 1.062 | 26.975 | — |
| 26710-08-08Z | 1.080 | 27.432 | 0.944 | 23.978 | — |
| 26710-08-06TZ | 1.080 | 27.432 | 0.944 | 23.978 | — |
| 26710-06-06Z | 1.000 | 25.400 | 0.750 | 19.05 | — |
| 26710-06-06SV | 0.748 | 18.999 | 0.748 | 18.999 | — |
| 26710-06-04Z | 1.000 | 25.400 | 0.750 | 19.05 | — |

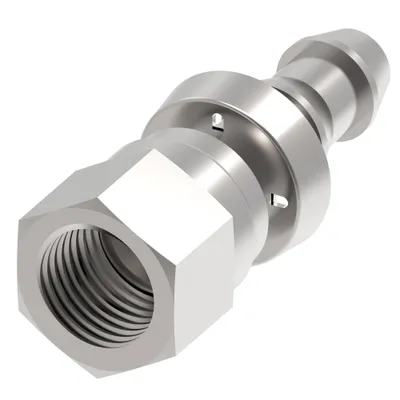

| 26710-04-04Z | 0.640 | 16.256 | 0.551 | 13.995 | — |

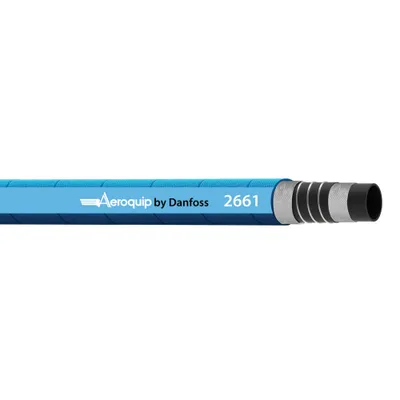

| 2661-64 | 4.000 | 101.600 | 4.000 | 101.6 | 24.020 |
| 2661-48-00960 | 3.000 | 76.200 | 3.000 | 76.2 | 17.990 |
| 2661-48 | 3.000 | 76.200 | 3.000 | 76.2 | 17.990 |
| 2661-40 | 2.500 | 63.500 | 2.500 | 63.5 | 13.980 |
| 2661-32 | 2.000 | 50.800 | 2.000 | 50.8 | 11.810 |
| 2661-24-12000 | 1.500 | 38.100 | 1.500 | 38.1 | 10.040 |
| 2661-24-06000 | 1.500 | 38.100 | 1.500 | 38.1 | 10.040 |
| 2661-24 | 1.500 | 38.100 | 1.500 | 38.1 | 10.040 |
| 2661-20-06000 | 1.250 | 31.800 | 1.250 | 31.8 | 7.870 |
| 2661-20-03600 | 1.250 | 31.800 | 1.250 | 31.8 | 7.870 |
| 2661-20 | 1.250 | 31.800 | 1.250 | 31.8 | 7.870 |
| 2661-16-18000 | 1.000 | 25.400 | 1.000 | 25.4 | 5.910 |
| 2661-16-12000 | 1.000 | 25.400 | 1.000 | 25.4 | 5.910 |
| 2661-16-03600 | 1.000 | 25.400 | 1.000 | 25.4 | 5.910 |
| 2661-16 | 1.000 | 25.400 | 1.000 | 25.4 | 5.910 |
