Danfoss 259-4103-4-6-4

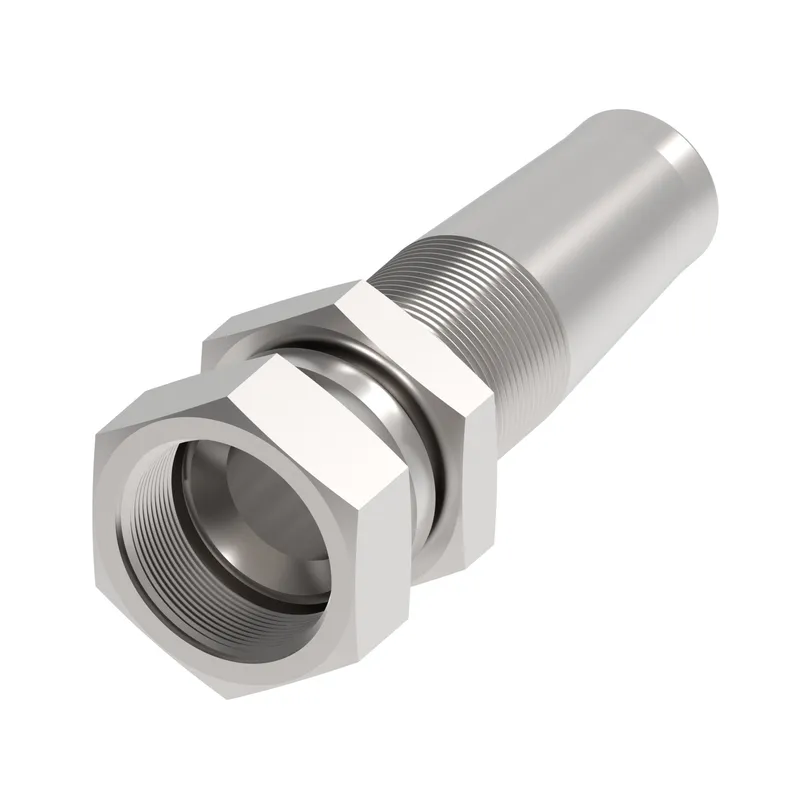

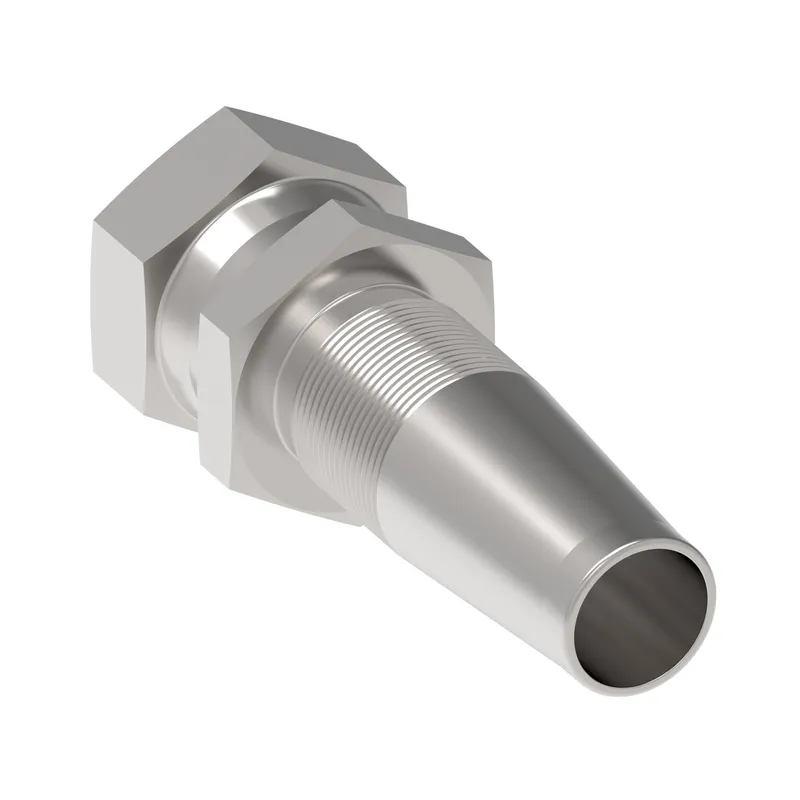

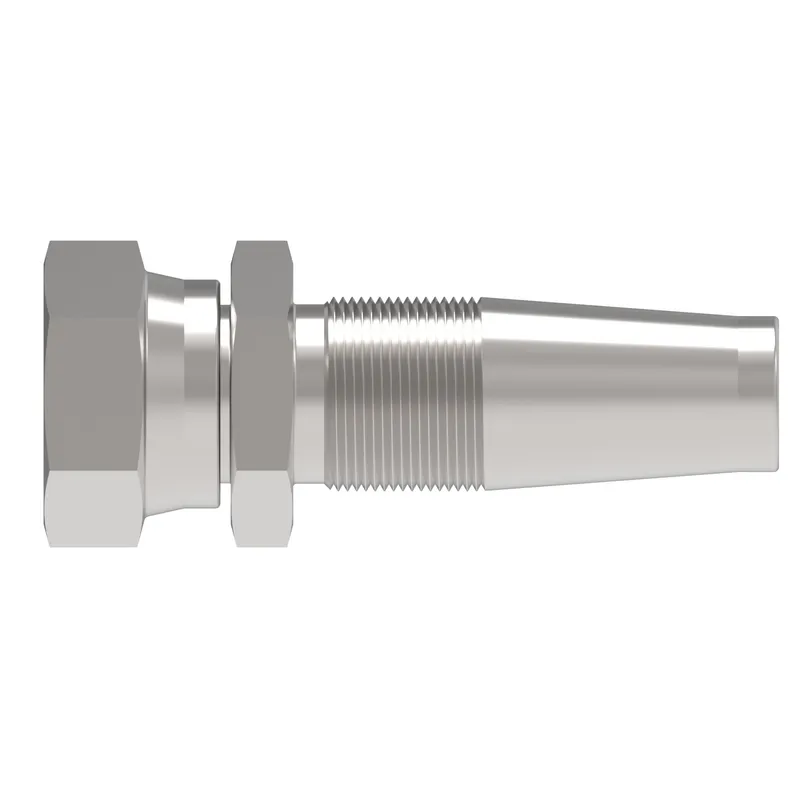

HOSE NIPPLE ASSY,2R/06,JIC-F/06,AP,STR

MPN: 259-4103-4-6-4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 259-4103-4-6-4?

Danfoss HOSE NIPPLE ASSY,2R/06,JIC-F/06,AP,STR, manufacturer part number 259-4103-4-6-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.730
A dimension MM	69.300
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	6.350
Compatible hoses	1509
Construction Style	Reusable
End size 1	-6
End size 2	-4
End Type 1	Female 37 degree swivel
Finish plating	Passivate
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hex size 2 IN	0.669
Hex size 2 MM	17.000
Hose cut off factor IN	1.690
Hose cut off factor MM	42.930
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.300
Product height in	0.790
Product height mm	20.066
Product length in	2.730
Product length mm	69.342
Product material	316 Stainless steel
Product width in	0.690
Product width mm	17.526
Thread sealant	No
Thread size 1	9/16-18 UNF
