Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Inside diameter (mm) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC115-05L | 2.170 | 55.000 | 0.31 | 7.90 | 13.72 |

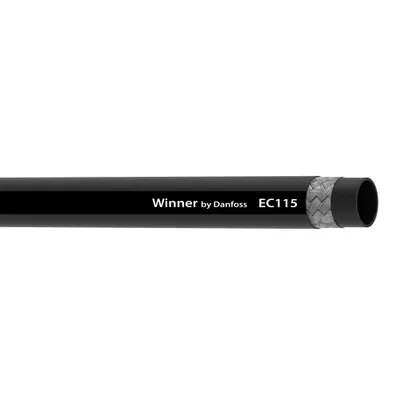

| EC115-05EL | 2.170 | 55.000 | 0.31 | 7.90 | 13.72 |
| EC115-04LRL | 1.970 | 50.000 | 0.25 | 6.40 | 12.70 |
| EC115-04LMT50 | 1.970 | 50.000 | 0.25 | 6.40 | 12.70 |
| EC115-04ELRL | 1.970 | 50.000 | 0.25 | 6.40 | 12.70 |
| EC115-04EL | 1.970 | 50.000 | 0.25 | 6.40 | 12.70 |
| EC110S-04L | 3.940 | 100.000 | 0.25 | 6.40 | 13.70 |
| EC110-48L | 35.430 | 900.000 | 3.00 | 76.20 | 88.80 |
| EC110-40L | 30.000 | 762.000 | 2.50 | 63.50 | 76.50 |

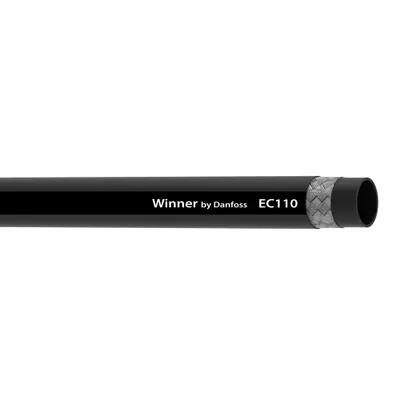

| EC110-32LMT46 | 24.800 | 630.000 | 2.00 | 50.80 | 63.50 |
| EC110-32EL | 24.800 | 630.000 | 2.00 | 50.80 | 63.50 |
| EC110-32 | 24.800 | 630.000 | 2.00 | 50.80 | 63.50 |
| EC110-24LMT46 | 19.690 | 500.000 | 1.50 | 38.10 | 50.50 |
| EC110-24L | 19.690 | 500.000 | 1.50 | 38.10 | 50.50 |
| EC110-24EL | 19.690 | 500.000 | 1.50 | 38.10 | 50.50 |
| EC110-24 | 19.690 | 500.000 | 1.50 | 38.10 | 50.50 |
| EC110-20LMT46 | 16.540 | 420.000 | 1.25 | 31.80 | 43.70 |
| EC110-20EL | 16.540 | 420.000 | 1.25 | 31.80 | 43.70 |
| EC110-20 | 16.540 | 420.000 | 1.25 | 31.80 | 43.70 |
| EC110-16LMT50 | 11.810 | 300.000 | 1.00 | 25.40 | 35.60 |
| EC110-16L | 11.810 | 300.000 | 1.00 | 25.40 | 35.60 |
| EC110-16EL | 11.810 | 300.000 | 1.00 | 25.40 | 35.60 |
| EC110-12LMT50 | 9.450 | 240.000 | 0.75 | 19.00 | 27.70 |
| EC110-12L | 9.450 | 240.000 | 0.75 | 19.00 | 27.70 |
Common to all listed parts
| Abrasion resistance | Standard |
| Color | Black |
| Conductivity | Conductive |
| Construction | 1 Wire Braid |
| Cover material | Nitrile (NBR) |
| Reinforcement material | Brass plated steel wire |
| Tube material | Nitrile (NBR) |
| Working temperature max (C) | 100 |
