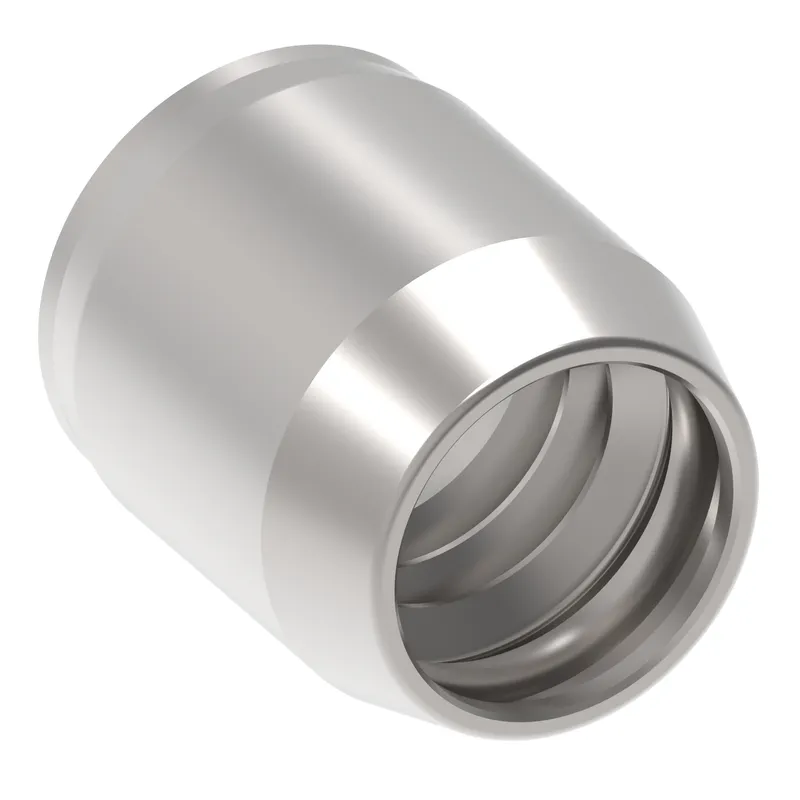

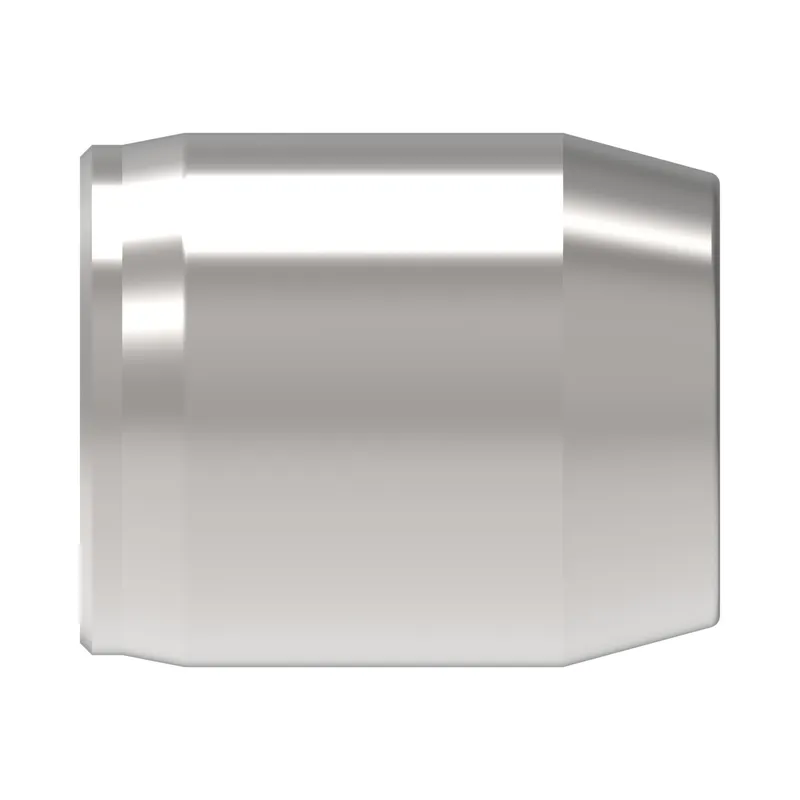

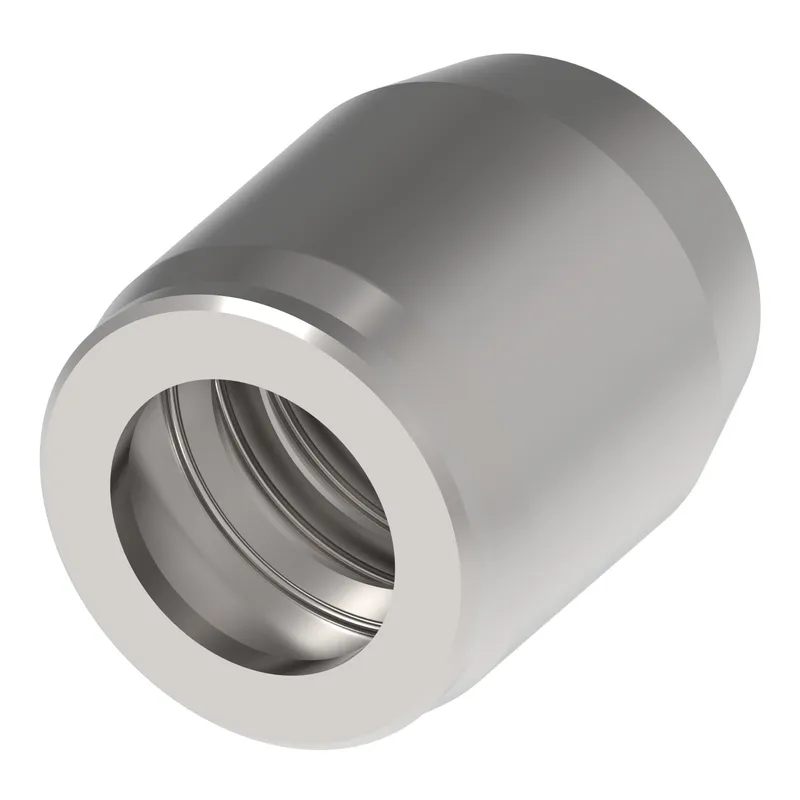

SOCKET-PERM, SSAVER/04, CS

Name: SOCKET-PERM, SSAVER/04, CS
Brand: Danfoss (Drives)
SKU: DBU04

MPN: DBU04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can DBU04 be shipped?

DBU04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DBU04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DBU04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DBU04, subject to availability and destination.

Danfoss SOCKET-PERM, SSAVER/04, CS, manufacturer part number DBU04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.060
A dimension MM	26.924
Angle shape	Straight
Brand	Winner Duffield by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible hoses	D1600
Construction Style	Swage
End Type 1	Female compression
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hose size	-4
Inside diameter IN	0.555
Inside diameter MM	14.097
Product height in	0.885
Product height mm	22.479
Product length in	106.000
Product length mm	2692.400
Product material	Carbon steel
Product width in	0.885
Product width mm	22.479
Thread sealant	No
Working temperature max C	126
Working temperature min C	46
Working temperature min F	50
