Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product length in | Product length mm | Product width mm |
|---|---|---|---|---|---|

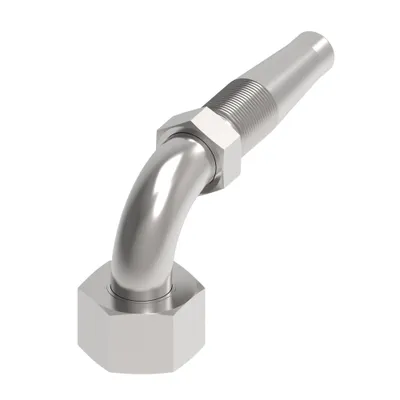

| GA15063-6 | 1.670 | 42.418 | 3.430 | 87.122 | 19.05 |
| G4721-8-6DR | 0.870 | 22.098 | 3.200 | 81.280 | 22.098 |

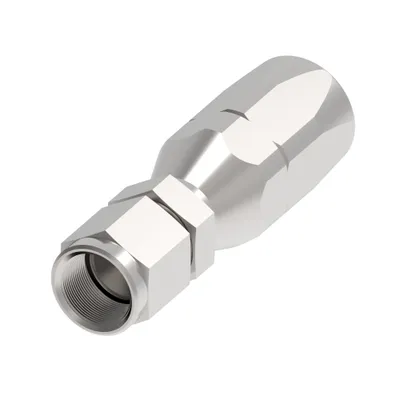

| G4721-6-4DR | 0.810 | 20.574 | 2.790 | 70.866 | 20.574 |
| G4721-10-10DR | 1.450 | 36.830 | 2.940 | 74.676 | 32.004 |
| G4103-4-8-6DR | 1.000 | 25.400 | 2.830 | 71.882 | 22.098 |
| G4103-4-6-6DR | 0.770 | 19.558 | 2.900 | 73.660 | 17.018 |
| G4103-4-6-4DR | 0.770 | 19.558 | 2.680 | 68.072 | 17.018 |
| G4103-4-4-4DR | 0.640 | 16.256 | 2.600 | 66.040 | 13.97 |
| G4103-4-24-24DR | 2.730 | 69.342 | 5.290 | 134.366 | 59.944 |
| G4103-4-20-20DR | 1.970 | 50.038 | 4.970 | 126.238 | 50.038 |
| G4103-4-16-16DR | 1.860 | 47.244 | 4.460 | 113.284 | 40.894 |
| G4103-4-12-12DR | 1.450 | 36.830 | 3.810 | 96.774 | 32.004 |
| G4103-4-12-10DR | 1.450 | 36.830 | 3.700 | 93.980 | 32.004 |
| G4103-4-10-8DR | 1.230 | 31.242 | 3.410 | 86.614 | 26.924 |
| G4103-4-10-10DR | 1.230 | 31.242 | 3.330 | 84.582 | 26.924 |
| FJ8732-0808S | 1.080 | 27.432 | 3.870 | 98.298 | 23.876 |
| FC849B-12RL | 0.750 | 19.000 | — | — | 19 |
| FC849B-12 | 0.750 | 19.000 | — | — | 19 |
| FC849B-10RL | 0.620 | 15.900 | — | — | 15.9 |
| FC849B-10 | 0.620 | 15.900 | — | — | 15.9 |
| FC849B-08RL | 0.500 | 12.700 | — | — | 12.7 |
| FC849B-08 | 0.500 | 12.700 | — | — | 12.7 |
| FC849B-06RL | 0.380 | 9.500 | — | — | 9.5 |
| FC849B-06-18000 | 0.380 | 9.500 | — | — | 9.5 |
