Danfoss G4103-4-10-8DR

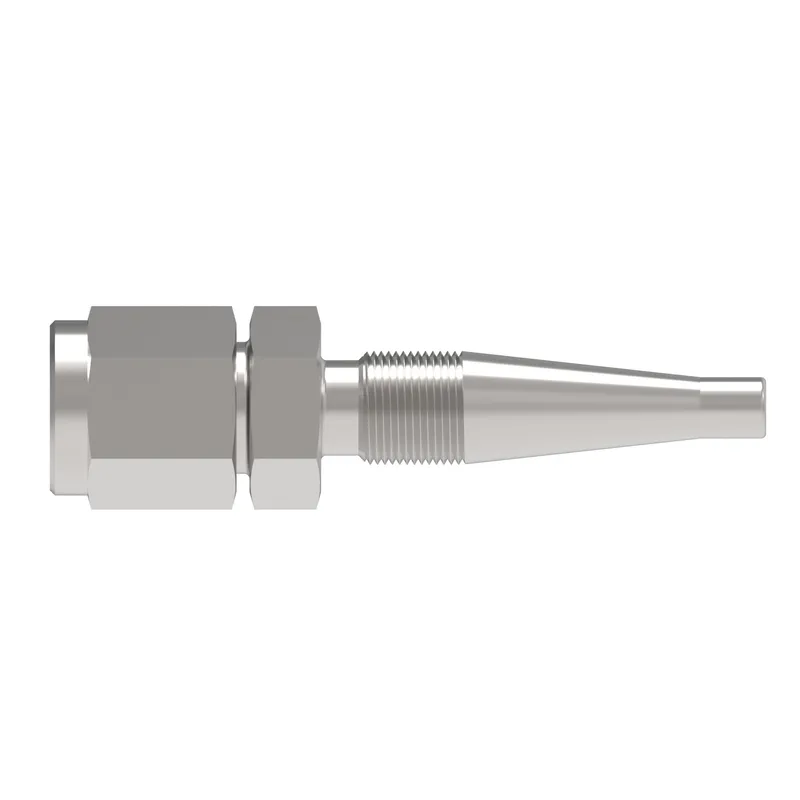

HOSE NIPPLE ASSY,1W/08,JIC-F/10,CS,STR

MPN
G4103-4-10-8DR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss G4103-4-10-8DR?

Danfoss HOSE NIPPLE ASSY,1W/08,JIC-F/10,CS,STR, manufacturer part number G4103-4-10-8DR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.900
A dimension MM73.700
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses2755, 2781
Construction StyleReusable
End size 1-10
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.063
Hex size 1 MM27.000
Hex size 2 IN1.062
Hex size 2 MM27.000
Hose cut off factor IN1.430
Hose cut off factor MM36.200
Hose size-8
Inside diameter IN0.350
Inside diameter MM8.900
Product height in1.230
Product height mm31.242
Product length in3.410
Product length mm86.614
Product materialCarbon steel
Product width in1.060
Product width mm26.924
Thread sealantNo
Thread size 17/8-14 UNF
Working pressure max BAR379
Working pressure max PSI5500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

G4103-4-10-8DR: frequently asked questions

When can G4103-4-10-8DR be shipped?

G4103-4-10-8DR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up G4103-4-10-8DR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for G4103-4-10-8DR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for G4103-4-10-8DR, subject to availability and destination.
