Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| GH194-10RL | 8.070 | 205.000 | 560 | 0.94 | 23.80 |
| GH194-10 | 8.070 | 205.000 | 560 | 0.94 | 23.80 |
| GH180-48MT40 | 7.090 | 180.000 | 16 | 3.46 | 87.88 |
| GH180-48 | 7.090 | 180.000 | 16 | 3.46 | 87.88 |
| GH180-40 | 5.510 | 140.000 | 16 | 2.97 | 75.44 |
| GH180-32MT40 | 3.940 | 100.000 | 28 | 2.44 | 61.98 |
| GH180-32 | 3.940 | 100.000 | 28 | 2.44 | 61.98 |
| GH180-24MT40 | 2.560 | 65.000 | 40 | 1.93 | 49.02 |
| GH180-24 | 2.560 | 65.000 | 40 | 1.93 | 49.02 |
| GH180-20MT40 | 2.360 | 60.000 | 56 | 1.65 | 41.91 |
| GH180-20 | 2.360 | 60.000 | 56 | 1.65 | 41.91 |
| GH180-16MT40 | 1.770 | 45.000 | 68 | 1.38 | 35.05 |
| GH180-16-00240 | 1.770 | 45.000 | 68 | 1.38 | 35.05 |
| GH180-16 | 1.770 | 45.000 | 68 | 1.38 | 35.05 |

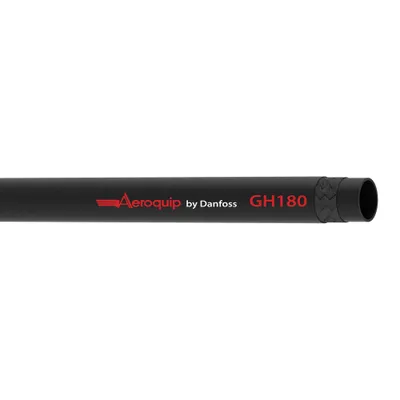

| GH180-12MT40 | 1.570 | 40.000 | 84 | 1.14 | 28.96 |
| GH180-12 | 1.570 | 40.000 | 84 | 1.14 | 28.96 |
| GH120-8R500 | 3.500 | 89.000 | 1240 | 0.82 | 20.83 |

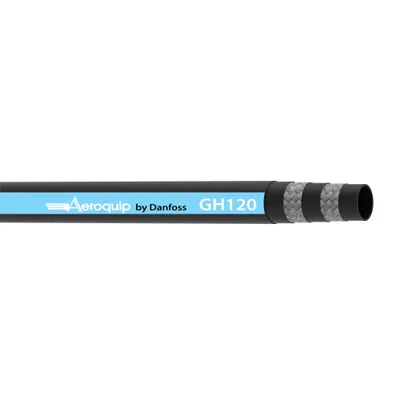

| GH120-8 | 3.500 | 89.000 | 1240 | 0.82 | 20.83 |
| GH120-6R500 | 2.500 | 64.000 | 1380 | 0.69 | 17.53 |
| GH120-6 | 2.500 | 64.000 | 1380 | 0.69 | 17.53 |
| GH120-4R500 | 2.000 | 51.000 | 1656 | 0.54 | 13.72 |
| GH120-4 | 2.000 | 51.000 | 1656 | 0.54 | 13.72 |
| GH120-32 | 12.500 | 318.000 | 412 | 2.51 | 63.75 |
| GH120-24-12000 | 10.000 | 254.000 | 552 | 2.03 | 51.56 |
Common to all listed parts
| Conductivity | Conductive |
| Lay line style | Ink transfer |
