Danfoss G4103-4-20-20DR

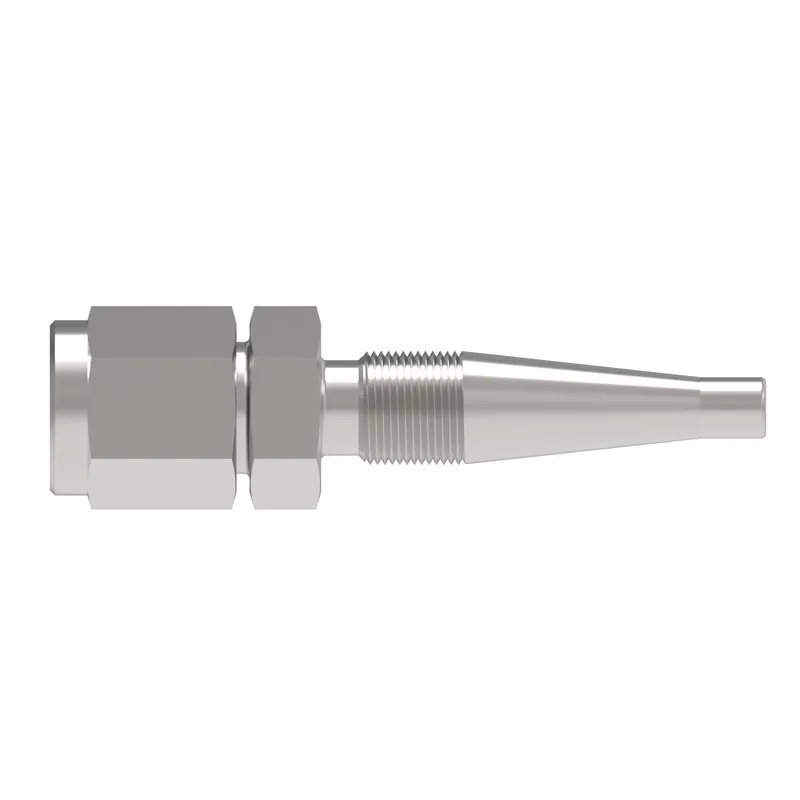

HOSE NIPPLE ASSY,1W/20,JIC-F/20,CS,STR

MPN
G4103-4-20-20DR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss G4103-4-20-20DR?

Danfoss HOSE NIPPLE ASSY,1W/20,JIC-F/20,CS,STR, manufacturer part number G4103-4-20-20DR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.410
A dimension MM112.000
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hoses2781
Construction StyleReusable
End size 1-20
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.969
Hex size 1 MM50.000
Hex size 2 IN1.969
Hex size 2 MM50.000
Hose cut off factor IN2.130
Hose cut off factor MM54.000
Hose size-20
Inside diameter IN0.980
Inside diameter MM25.000
Product height in1.970
Product height mm50.038
Product length in4.970
Product length mm126.238
Product materialCarbon steel
Product width in1.970
Product width mm50.038
Thread sealantNo
Thread size 11 5/8-12 UN
Working pressure max BAR241
Working pressure max PSI3500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

G4103-4-20-20DR: frequently asked questions

When can G4103-4-20-20DR be shipped?

G4103-4-20-20DR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up G4103-4-20-20DR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for G4103-4-20-20DR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for G4103-4-20-20DR, subject to availability and destination.
