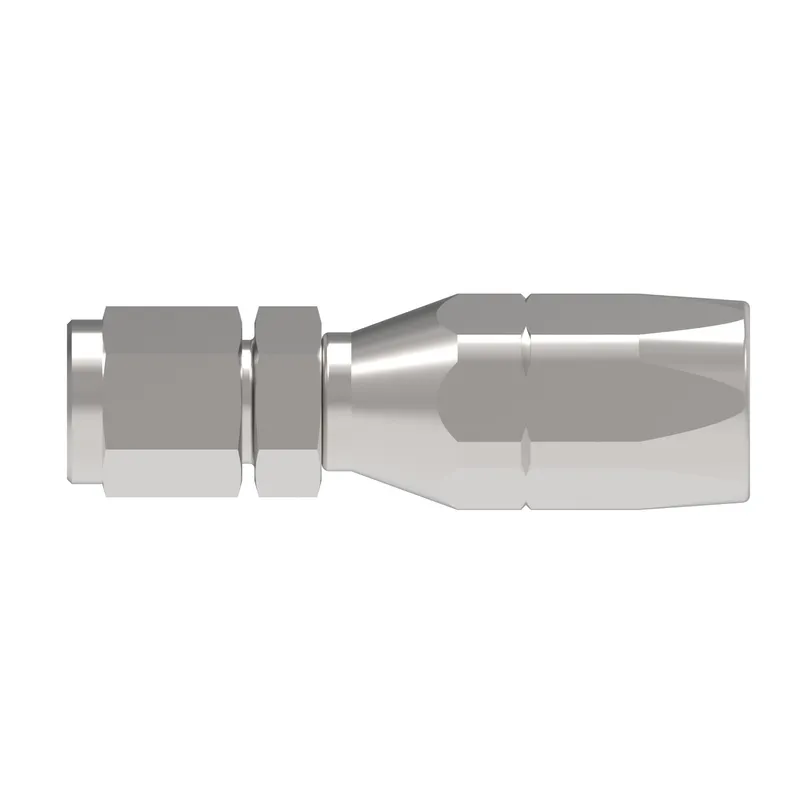

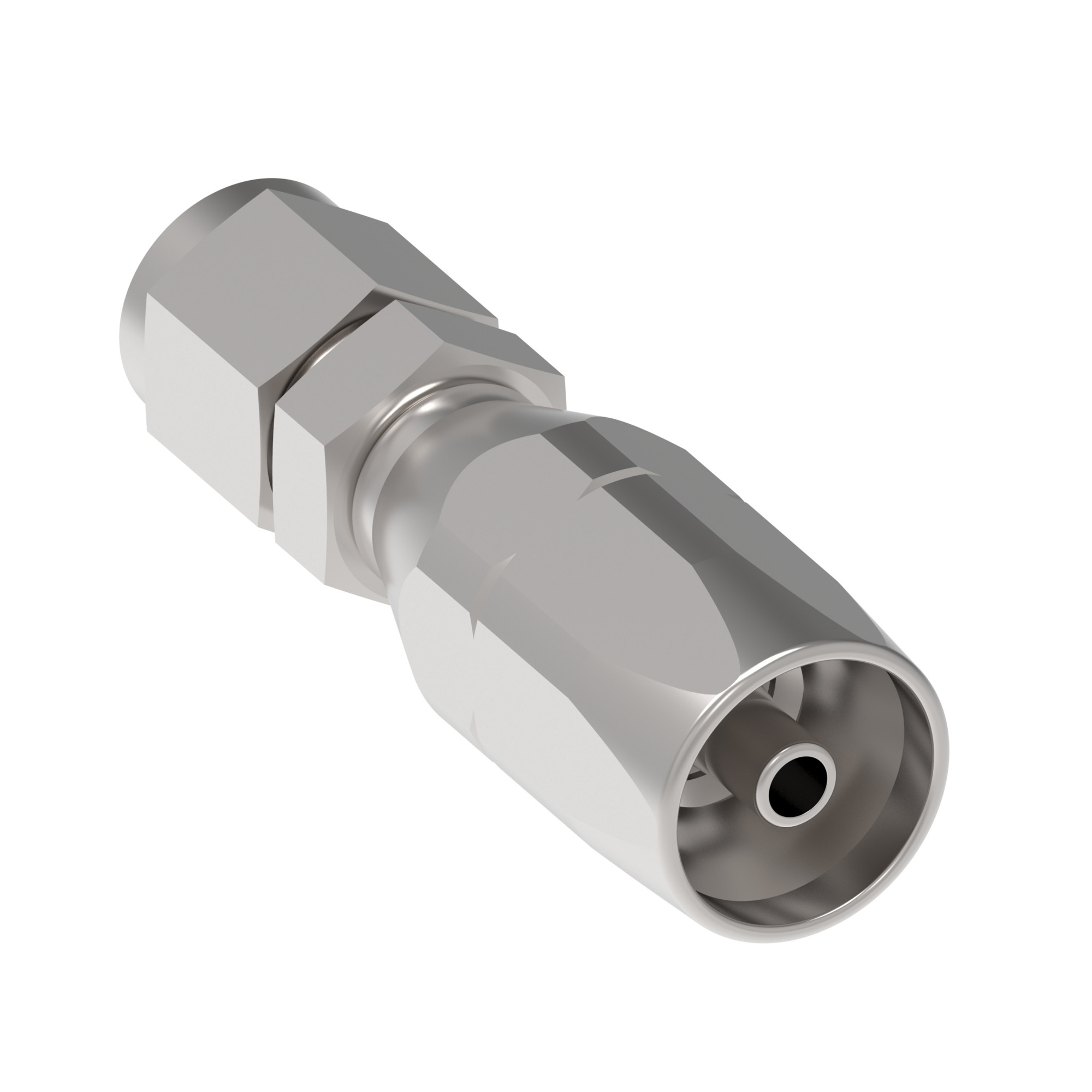

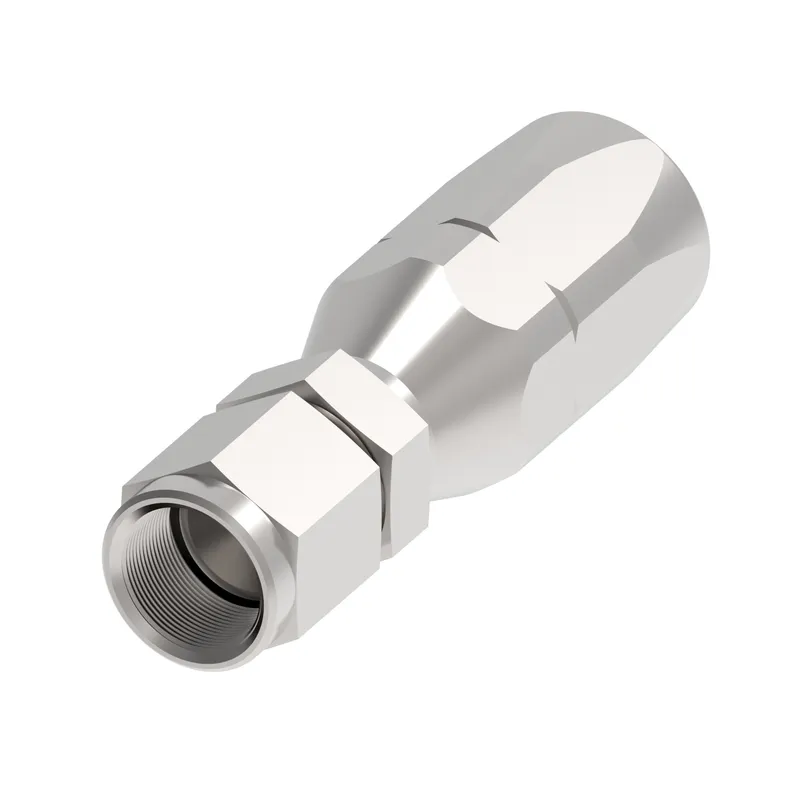

Danfoss G4721-10-10DR

HOSE FTG, 2R/10, JIC-F/10, CS, STR

MPN
G4721-10-10DR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss G4721-10-10DR?

Danfoss HOSE FTG, 2R/10, JIC-F/10, CS, STR, manufacturer part number G4721-10-10DR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.940
A dimension MM74.600
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.620
Compatible hoses2781
Construction StyleReusable
End size 1-10
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.063
Hex size 1 MM27.000
Hex size 2 IN1.062
Hex size 2 MM27.000
Hose cut off factor IN1.460
Hose cut off factor MM37.100
Hose size-10
Inside diameter IN0.460
Inside diameter MM11.700
Product height in1.450
Product height mm36.830
Product length in2.940
Product length mm74.676
Product materialCarbon steel
Product width in1.260
Product width mm32.004
Reusable socket hex MM32.000
Thread sealantNo
Thread size 17/8-14 UNF
Working pressure max BAR379
Working pressure max PSI5500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

G4721-10-10DR: frequently asked questions

When can G4721-10-10DR be shipped?

G4721-10-10DR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up G4721-10-10DR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for G4721-10-10DR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for G4721-10-10DR, subject to availability and destination.

More Danfoss (Drives) parts

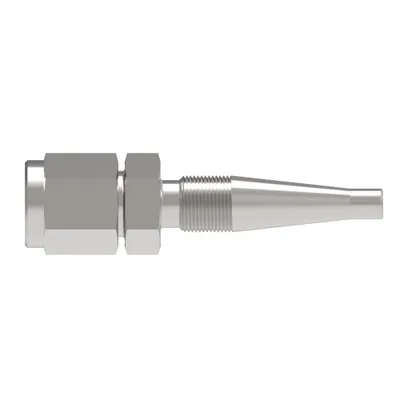

Danfoss G4103-4-8-6DR – HOSE NIPPLE ASSY,2R/06,JIC-F/08,CS,STR
