Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Product height in | Product height mm | Product width in |
|---|---|---|---|---|---|
| 03310-16NZF | 1.840 | 46.700 | 1.840 | 46.736 | 1.840 |
| 03310-16NZ | 1.840 | 46.700 | 1.840 | 46.736 | 1.840 |
| 03310-16EWZF | 1.840 | 46.700 | 1.840 | 46.736 | 1.840 |
| 03310-16EWZ | 1.840 | 46.700 | 1.839 | 46.700 | 1.839 |
| 03310-16CSV | 1.811 | 46.000 | 1.839 | 46.700 | 1.838 |
| 03310-12ZN | 1.650 | 42.000 | 1.460 | 37.084 | 1.460 |

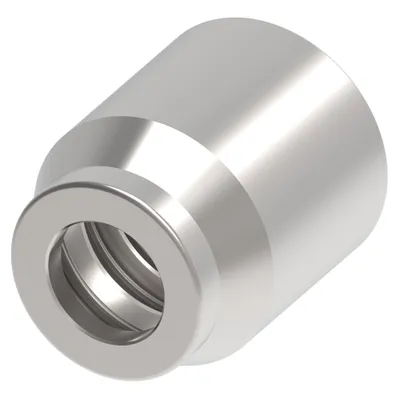

| 03310-12Z | — | — | — | — | — |
| 03310-12SV | 1.650 | 42.000 | 1.457 | 37.000 | 1.457 |

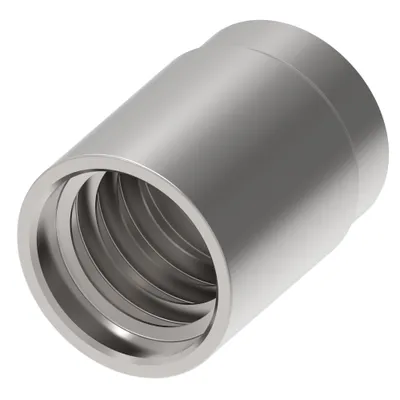

| 03310-12SR | 1.650 | 42.000 | 1.457 | 37.000 | 1.457 |
| 03310-12NZF | 1.650 | 42.000 | 1.460 | 37.084 | 1.460 |
| 03310-12NZ | 1.650 | 42.000 | 1.460 | 37.084 | 1.460 |
| 03310-12EWZF | 1.650 | 42.000 | 1.460 | 37.084 | 1.460 |
| 03310-12EWZ | 1.650 | 42.000 | 1.457 | 37.000 | 1.457 |
| 03310-10Z | 1.456 | 37.000 | 1.358 | 34.500 | 1.358 |
| 03310-10DAZ | 1.456 | 37.000 | 1.358 | 34.500 | 1.358 |
| 03310-10CZ | 1.340 | 34.000 | 1.400 | 35.560 | 1.400 |
| 03310-10AZN | 1.360 | 34.500 | 1.360 | 34.544 | 1.360 |
| 03310-10AZ | 1.377 | 35.000 | 1.358 | 34.500 | 1.358 |
| 03310-10ASR | 1.377 | 35.000 | 1.358 | 34.500 | 1.358 |
| 03310-10ANZF | 1.360 | 34.500 | 1.360 | 34.544 | 1.360 |
| 03310-10ANZ | 1.360 | 34.500 | 1.360 | 34.544 | 1.360 |
| 03310-10AEWZF | 1.360 | 34.500 | 1.360 | 34.544 | 1.360 |

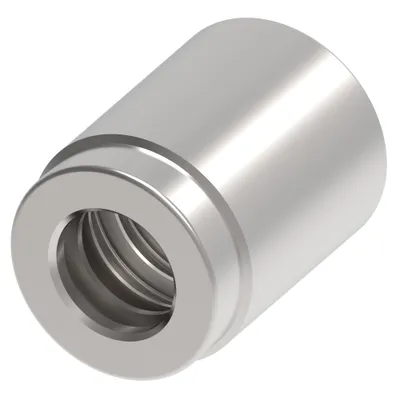

| 03310-10AEWZ | 1.360 | 34.500 | 1.358 | 34.500 | 1.358 |
Common to all listed parts
| Angle shape | Straight |
| Construction Style | Crimp |
