Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Inside diameter IN | Inside diameter MM | Product length in | Product length mm | Product width mm |
|---|---|---|---|---|---|
| 03920K-120 | 1.0200 | 25.9080 | — | — | — |
| 03916K-676 | 0.8200 | 20.8280 | — | — | — |
| 03916K-116 | 0.8100 | 20.5740 | — | — | — |

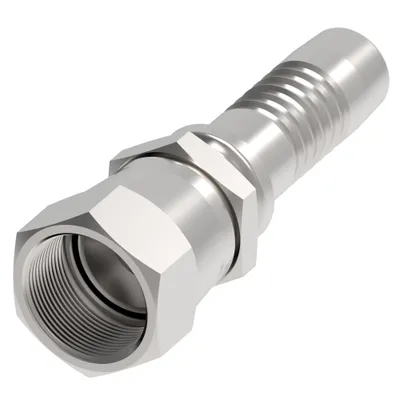

| 03912K-612 | 0.6100 | 15.4940 | — | — | — |

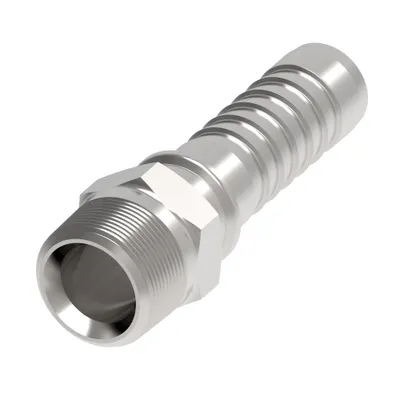

| 03912K-112 | 0.6100 | 15.4940 | — | — | — |

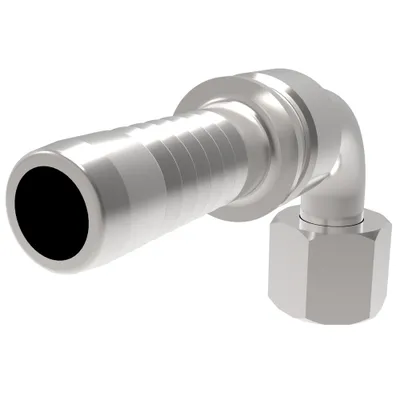

| 03908K-668 | 0.3700 | 9.3980 | — | — | — |

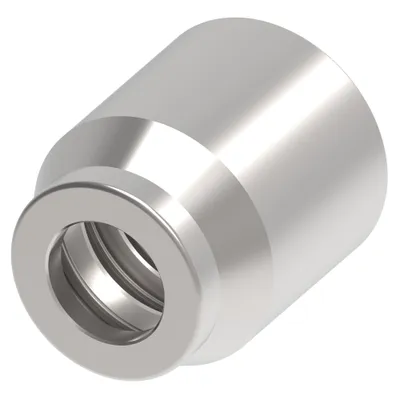

| 03310-32Z | — | — | — | — | — |
| 03310-32SV | 2.2750 | 57.8000 | 2.835 | 72.000 | 80.000 mm |
| 03310-32SR | 2.275 | 57.800 | 2.835 | 72.000 | 80.000 mm |
| 03310-32CZ | 2.2360 | 56.8000 | 2.790 | 70.866 | 81.788 mm |
| 03310-32AZ | 2.2360 | 56.8000 | 2.835 | 72.000 | 80.000 mm |

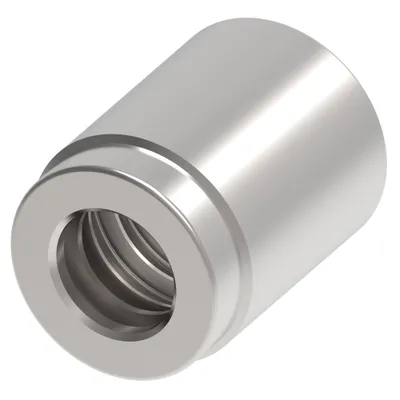

| 03310-24SV | 1.732 | 44.000 | 2.638 | 67.000 | 67.000 mm |
| 03310-24SR | 1.732 | 44.000 | 2.598 | 66.000 | 67.000 mm |

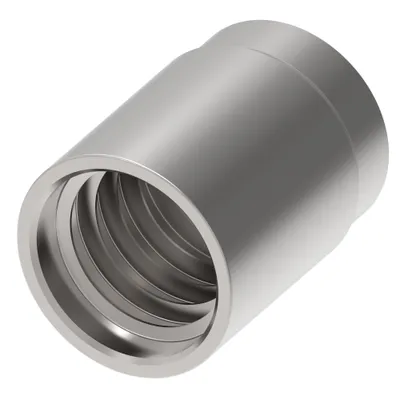

| 03310-24AZ | 1.7320 | 44.0000 | 2.598 | 66.000 | 2.598 mm |
| 03310-24ANZ | 1.7320 | 44.0000 | 2.600 | 66.040 | 67.056 mm |
| 03310-24AEWZD | 1.7320 | 44.0000 | 2.600 | 66.040 | 67.056 mm |
| 03310-20AZN | 1.4700 | 37.5000 | 2.165 | 55.000 | 59.000 mm |
| 03310-20AZ | 1.4700 | 37.5000 | 2.165 | 55.000 | 59.000 mm |
| 03310-20ANZ | 1.4700 | 37.5000 | 2.160 | 54.864 | 58.928 mm |
| 03310-20AEWZ | 1.4700 | 37.5000 | 2.165 | 55.000 | 59.000 mm |
| 03310-16ZN | 1.2040 | 30.6000 | 2.010 | 51.054 | 46.736 mm |
| 03310-16Z | — | — | — | — | — |
| 03310-16SV | 1.2040 | 30.6000 | 2.008 | 51.000 | 46.700 mm |
| 03310-16SR | 1.2040 | 30.6000 | 2.008 | 51.000 | 46.700 mm |
Common to all listed parts
| Thread sealant | No |
