Braided hose and fittings Parts

Danfoss

04Z-106-BG

Hose End (perm) 1S/1R

Danfoss

04Z-106

Hose End (perm) 1S/1R Str -06 M Pipe

Danfoss

04Z-104-BG

Hose End (perm) 1S/1R

Danfoss

04Z-104

Hose End (perm) 1S/1R Str -04 M Pipe

Danfoss

04Z-102-BG

Hose End (perm) 1S/1R

Danfoss

04Z-102

Hose End (perm) 1S/1R Str -02 M Pipe

Danfoss

04Z-08F

Hose End (perm) 1S/1R Str M Metric Heavy

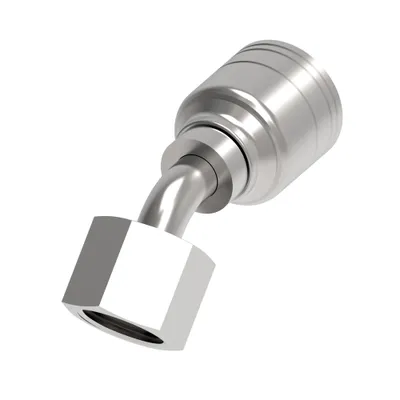

Danfoss

04Z-08E

Ftng (perm), DKOS R2 MM

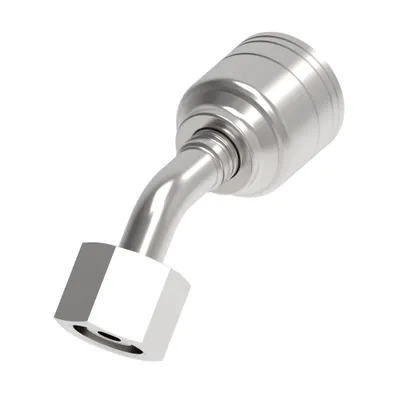

Danfoss

04Z-08D-BG

Ftng (perm), DKOL

Danfoss

04Z-08D

Ftng (perm), DKOL 45d F swivel

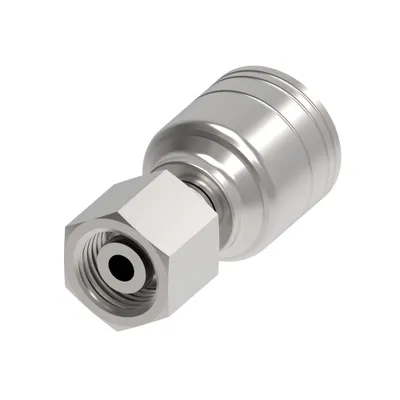

Danfoss

04Z-08C-BG

Hose End (perm) 1S/1R

Danfoss

04Z-08C

Hose End (perm) 1S/1R Str F Metric Lgt

Danfoss

04Z-08A-BG

Hose End (perm) 1S/1R

Danfoss

04Z-08A

Hose End (perm) 1S/1R Str M Metric Light

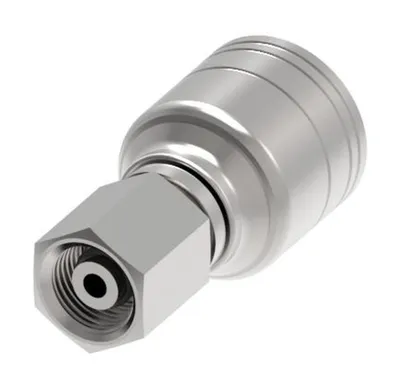

Danfoss

04Z-06C-BG

Hose End (perm) 1S/1R

Danfoss

04Z-06C

Hose End (perm) 1S/1R Str F Metric Lgt

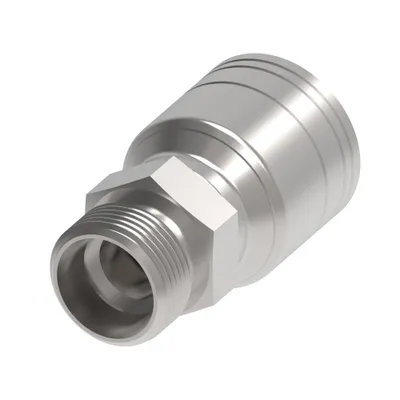

Danfoss

04Z-06A-BG

Hose End (perm) 1S/1R

Danfoss

04Z-06A

Hose End (perm) 1S/1R Str M Metric Light

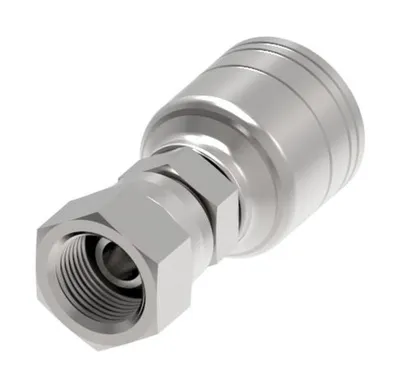

Danfoss

04Z-054-BG

Ftng (perm), NPSM

Danfoss

04Z-054

Ftng (perm), NPSM STR FEM SWIVEL

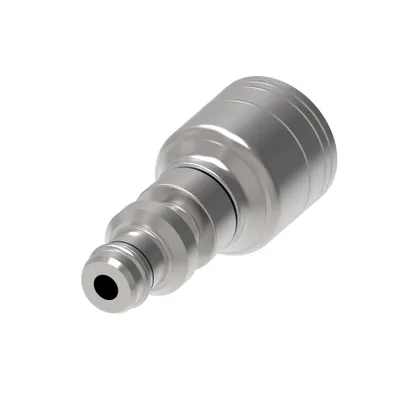

Danfoss

04Z-04S

Hose End (perm) 1S/1R Str M. Ready-Lok

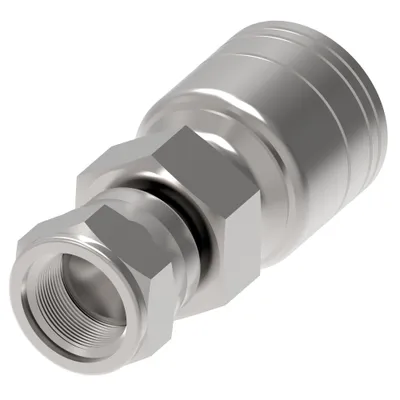

Danfoss

04Z-04L-BG

Hose End (perm) 1S/1R

Danfoss

04Z-04L

Hose End (perm) 1S/1R Str F. JIS SWVL

Danfoss

03920K-620

NIPPLE (REUS) R4 STR F SAE37 SWIVEL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
04Z-106-BG	810075334746	0.690	17.5	0.980	24.892
04Z-106	639789292490	0.690	17.5	0.980	24.892
04Z-104-BG	810075334739	0.560	14.2	1.140	28.956
04Z-104	639789292483	0.560	14.2	1.140	28.956
04Z-102-BG	810075334722	0.560	14.2	0.920	23.368
04Z-102	639789292476	0.560	14.2	0.920	23.368
04Z-08F	639789294241	0.670	17.0	0.950	24.130
04Z-08E	639789320896	0.740	18.8	1.300	33.020
04Z-08D-BG	—	0.670	17.0	1.540	39.116
04Z-08D	639789320056	0.670	17.0	1.540	39.116
04Z-08C-BG	810075334715	0.670	17.0	0.890	22.606
04Z-08C	639789294234	0.670	17.0	0.890	22.606
04Z-08A-BG	810075334708	0.550	14.0	0.830	21.082
04Z-08A	639789294227	0.550	14.0	0.830	21.082
04Z-06C-BG	810075334692	0.550	14.0	0.970	24.638
04Z-06C	639789294210	0.550	14.0	0.970	24.638
04Z-06A-BG	—	0.550	14.0	0.840	21.336
04Z-06A	639789295606	0.550	14.0	0.840	21.336
04Z-054-BG	810075334685	0.690	17.5	1.090	27.686
04Z-054	639789321350	0.690	17.5	1.090	27.686
04Z-04S	639789294203	—	—	1.260	32.004
04Z-04L-BG	810075334678	0.750	19.1	1.290	32.766
04Z-04L	639789294197	0.750	19.1	1.290	32.766
03920K-620	725975057070	1.690	42.900	2.560	65.024

Common to all listed parts

Finish plating	Dura-Kote
Product material	Carbon steel
Thread sealant	No
