Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Inside diameter IN | Inside diameter MM | Product height in | Product height mm | Product length mm |
|---|---|---|---|---|---|
| 03310-08ZN | 0.7320 | 18.6000 | 1.140 | 28.956 | 34.036 |

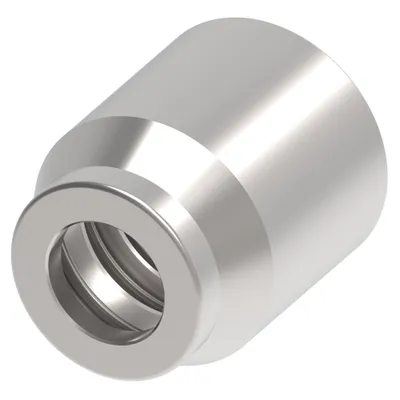

| 03310-08Z | — | — | — | — | — |
| 03310-08SV | 0.7320 | 18.6000 | 1.142 | 29.000 | 34.000 |
| 03310-08SR | 0.732 | 18.600 | 1.142 | 29.000 | 34.000 |

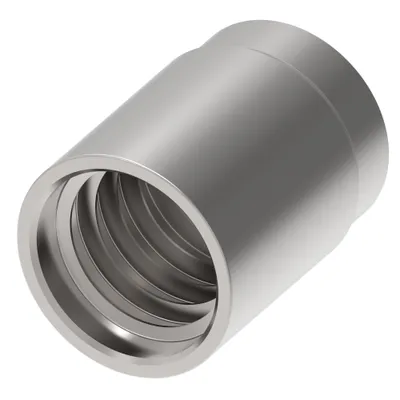

| 03310-08NZF | 0.7320 | 18.6000 | 1.140 | 28.956 | 34.036 |
| 03310-08NZ | 0.7320 | 18.6000 | 1.140 | 28.956 | 34.036 |
| 03310-08EWZF | 0.7320 | 18.6000 | 1.140 | 28.956 | 34.036 |
| 03310-08EWZ | 0.7320 | 18.6000 | 1.142 | 29.000 | 34.000 |
| 03310-08CSV | 0.732 | 18.600 | 1.200 | 30.480 | 30.988 |
| 03310-06ZN | 0.5660 | 14.4000 | 1.020 | 25.908 | 32.004 |
| 03310-06Z | — | — | — | — | — |
| 03310-06WSZ | 0.5660 | 14.4000 | 1.024 | 26.000 | 32.000 |
| 03310-06SR | 0.566 | 14.400 | 1.024 | 26.000 | 32.000 |
| 03310-06NZF | 0.4300 | 11.0000 | 1.020 | 25.908 | 32.004 |
| 03310-06NZ | 0.5700 | 14.4000 | 1.020 | 25.908 | 32.004 |
| 03310-06EWZF | 0.5660 | 14.4000 | 1.020 | 25.908 | 32.004 |
| 03310-06EWZ | 0.5660 | 14.4000 | 1.024 | 26.000 | 32.000 |
| 03310-05ZN | 0.5000 | 12.7000 | 0.940 | 23.876 | 29.972 |
| 03310-05Z | — | — | — | — | — |
| 03310-05SV | 0.5000 | 12.7000 | 0.940 | 23.876 | 29.972 |
| 03310-05SR | 0.500 | 14.000 | 0.945 | 24.000 | 30.000 |

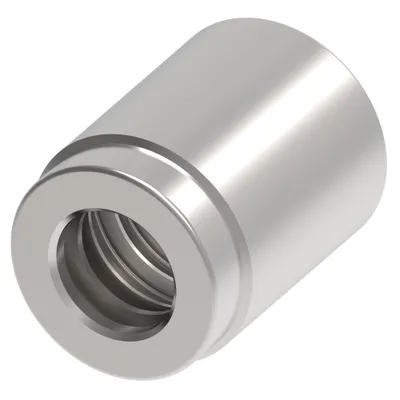

| 03310-05JRSV | 0.500 | 12.700 | 0.940 | 23.876 | 29.972 |
| 03310-05EWZF | 0.5000 | 12.7000 | 0.940 | 23.876 | 29.997 |
Common to all listed parts
| Construction Style | Crimp |
