What is the Danfoss 03310-12SV?

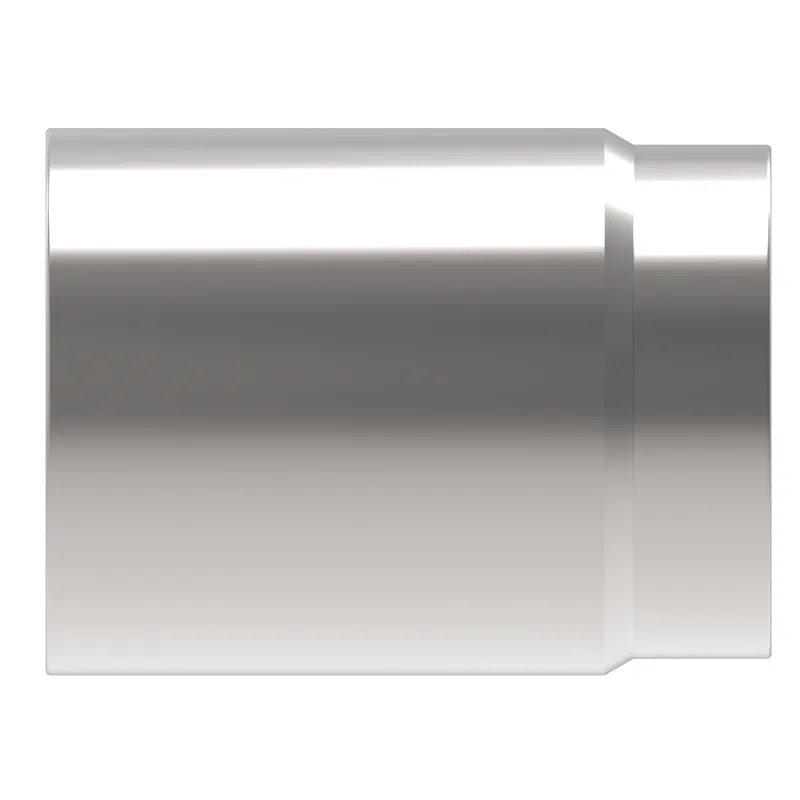

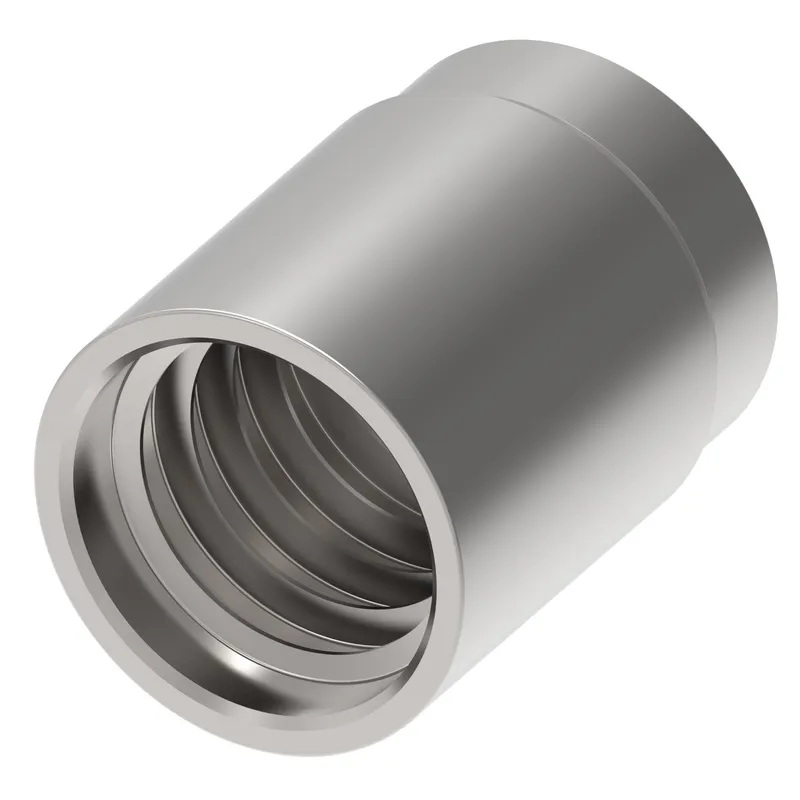

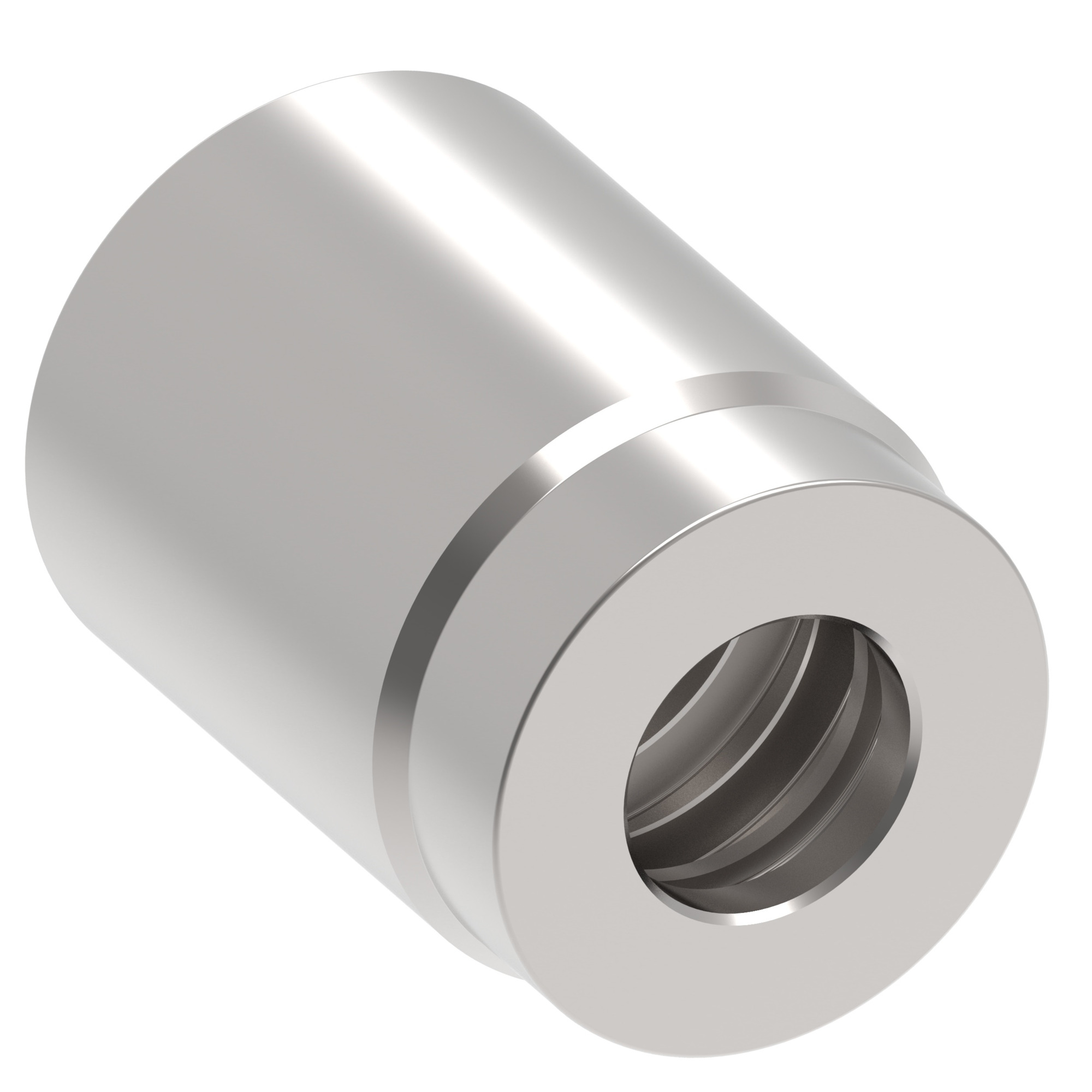

Danfoss SOCKET-PERM, 2P/12, AP, manufacturer part number 03310-12SV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.650
A dimension MM	42.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Finish plating	Zinc plating
Hose size	-12
Inside diameter IN	0.9700
Inside diameter MM	24.6000
Product height in	1.457
Product height mm	37.000
Product length in	1.654
Product length mm	42.000
Product material	Carbon steel
Product width in	1.457
Product width mm	37.000 mm
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
