Danfoss 03310-16CSV

SOCKET-PERM, 2P/16, AP

MPN: 03310-16CSV
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 03310-16CSV?

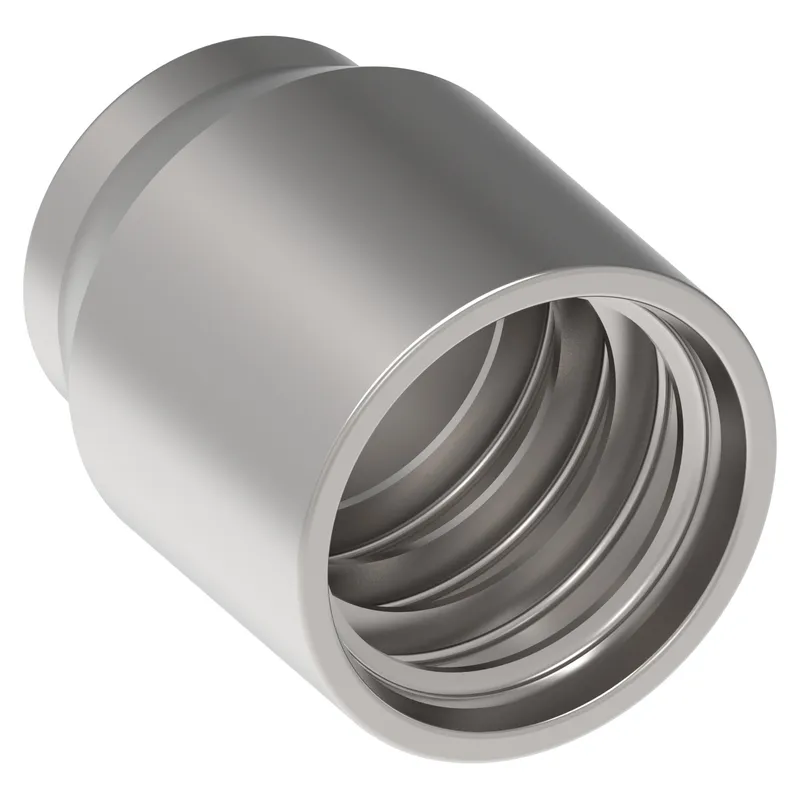

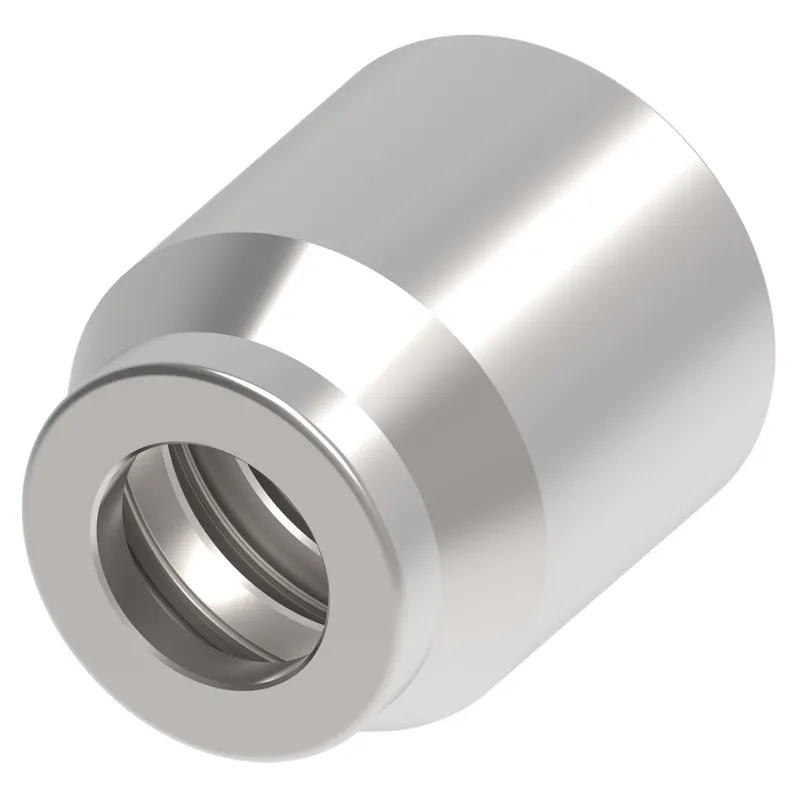

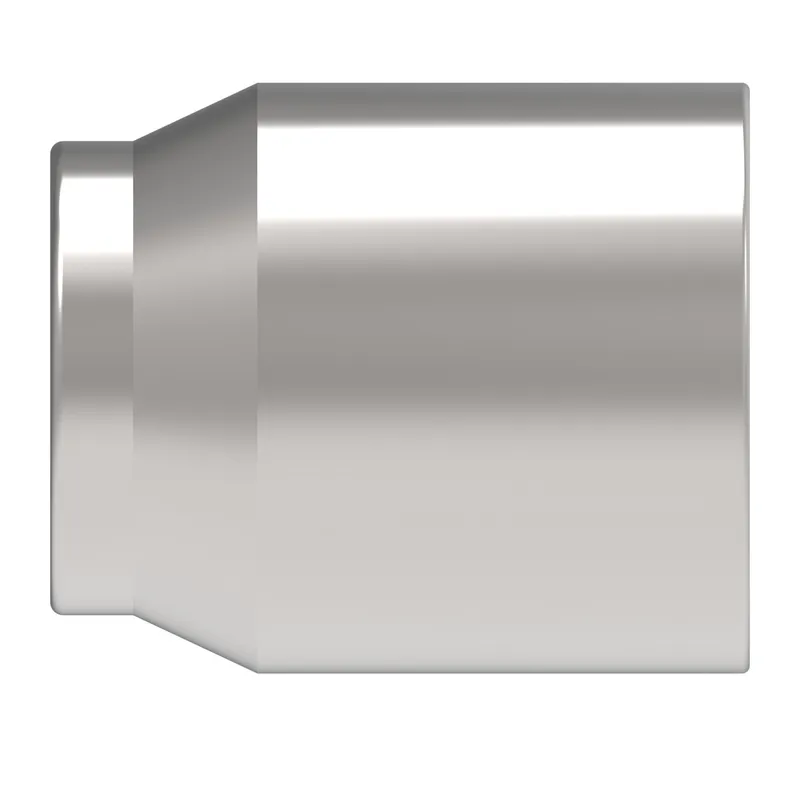

Danfoss SOCKET-PERM, 2P/16, AP, manufacturer part number 03310-16CSV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.811
A dimension MM	46.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Finish plating	Zinc plating
Hose size	-16
Inside diameter IN	1.204
Inside diameter MM	30.600
Product height in	1.839
Product height mm	46.700
Product length in	2.008
Product length mm	51.000
Product material	Carbon steel
Product width in	1.838
Product width mm	46.700 mm
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

03310-16CSV: frequently asked questions

When can 03310-16CSV be shipped?

03310-16CSV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 03310-16CSV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 03310-16CSV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 03310-16CSV, subject to availability and destination.
