Danfoss 08Z-15D

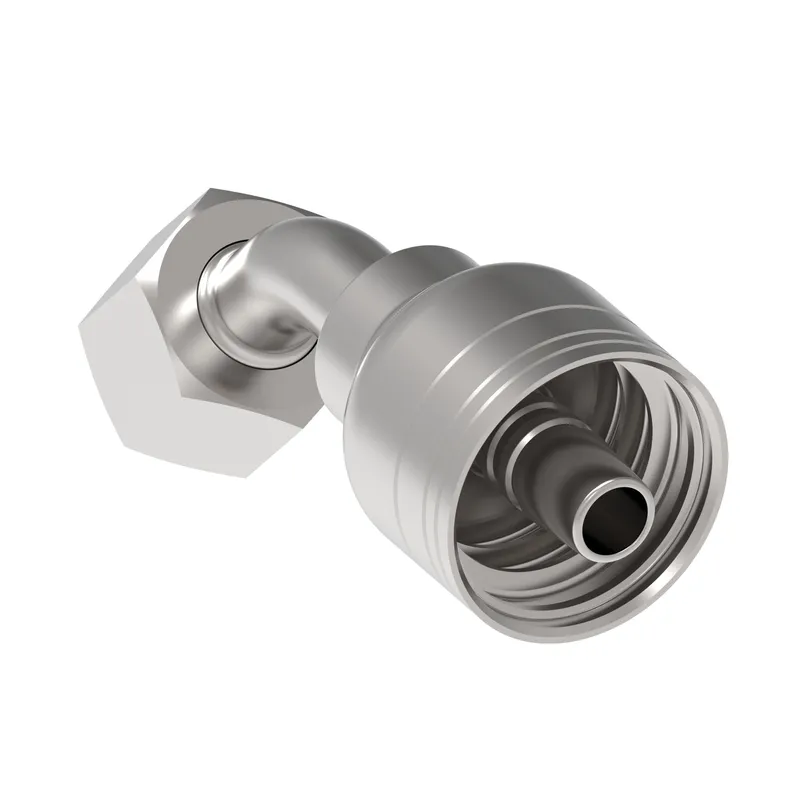

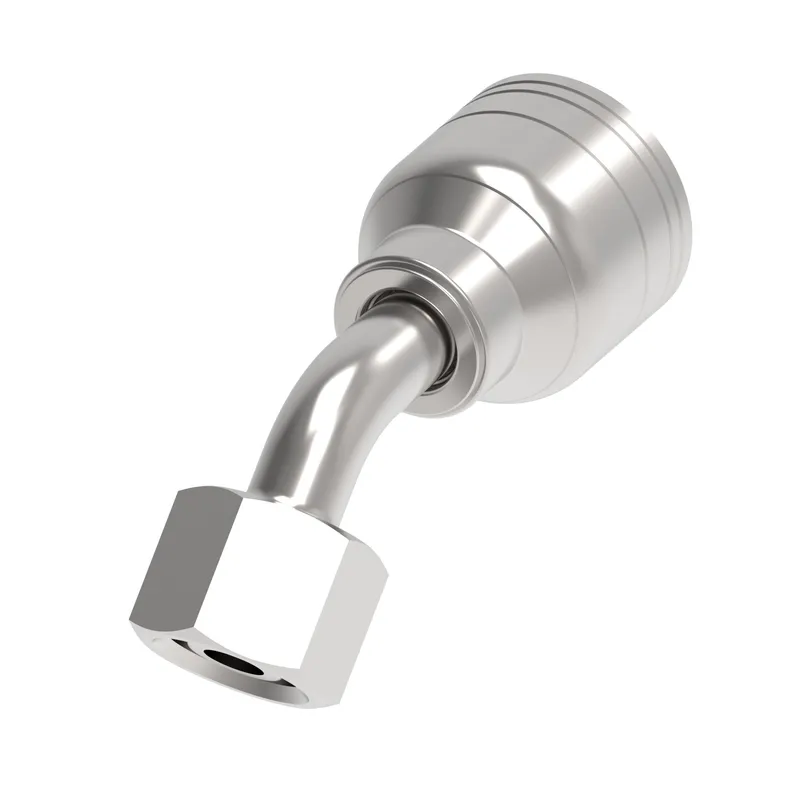

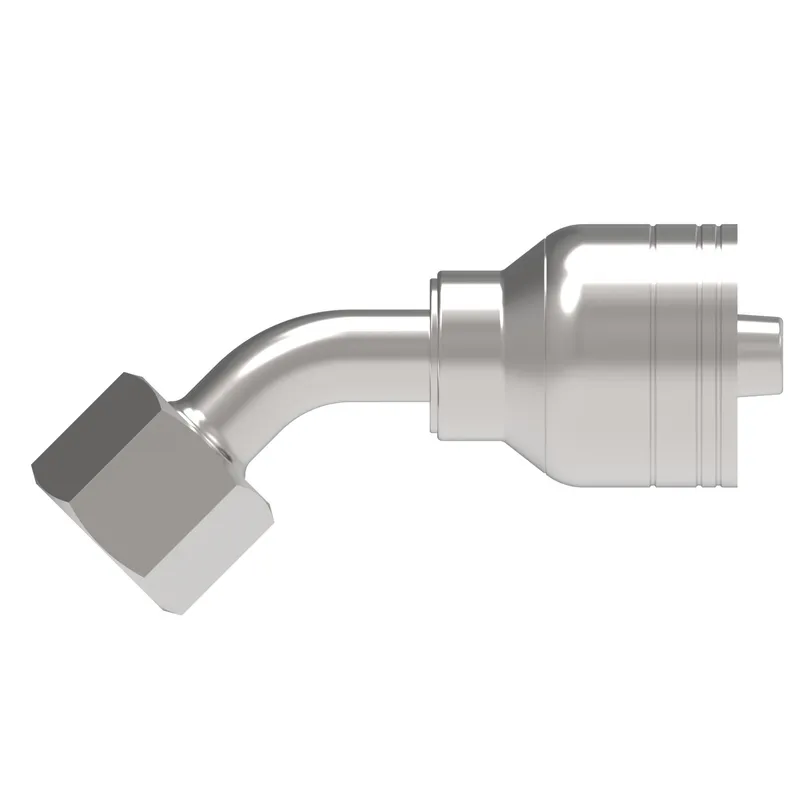

Ftng (perm), DKOL 45D M22x1.5 F SWVL

MPN: 08Z-15D
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-15D?

Danfoss Ftng (perm), DKOL 45D M22x1.5 F SWVL, manufacturer part number 08Z-15D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789320223
Angle shape	45 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible tube OD IN	0.63
Compatible tube OD MM	15.875
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	0.810
Drop dimension MM	20.6
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.9
Hex size 2 IN	1.060
Hex size 2 MM	26.9
Hose cut off factor IN	2.100
Hose cut off factor MM	53.340
Hose size	-8
Inside diameter IN	0.350
Inside diameter MM	8.890
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.625
Tube OD 1 MM	15.875

08Z-15D: frequently asked questions

When can 08Z-15D be shipped?

08Z-15D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-15D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-15D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-15D, subject to availability and destination.
