Braided hose and fittings Parts

Danfoss

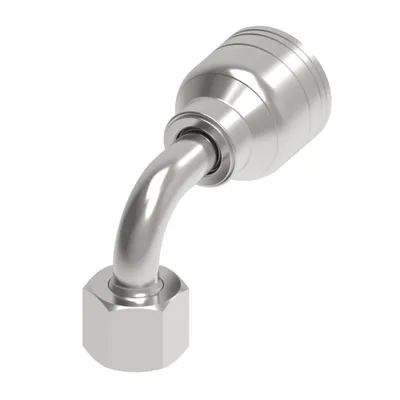

08Z-65D

Ftng (perm), DKOL 90D M22x1.5 F SWVL

Danfoss

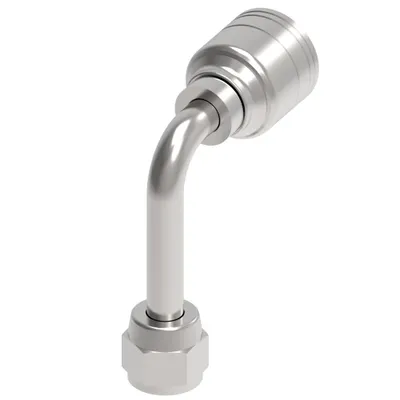

08Z-650-BG

Hose End (perm) 1S/1R

Danfoss

08Z-650

Hose End (perm) 90 D F SAE 37 Swivel

Danfoss

08Z-64C-BG

Hose End (perm) 1S/1R

Danfoss

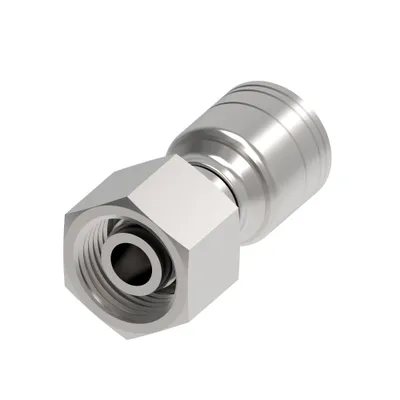

08Z-64C

Hose End (perm) 1S/1R Str F Metric Heavy

Danfoss

08Z-648-BG

Ftng (perm), SAE 37 R2

Danfoss

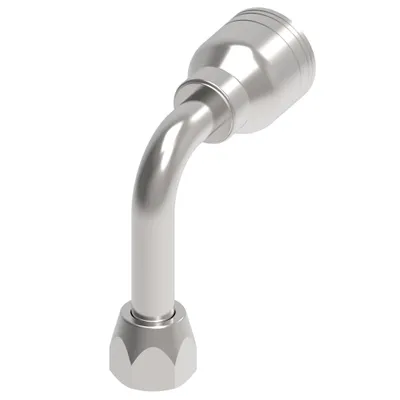

08Z-648

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Danfoss

08Z-616-BG

Hose End (perm) 1S/1R

Danfoss

08Z-616

Hose End (perm) Str F SAE 37 Swivel

Danfoss

08Z-612-BG

Hose End (perm) 1S/1R

Danfoss

08Z-612

Hose End (perm) 1S/1R Str F SAE 37 Swi

Danfoss

08Z-610-BG

Hose End (perm) 1S/1R

Danfoss

08Z-610

HOSE FTG, 1Z/8, JIC-F/10, -S

Danfoss

08Z-608-TZ

Ftng (perm), SAE 37 R2 Zinc Nickel

Danfoss

08Z-608-BG

Hose End (perm) 1S/1R

Danfoss

08Z-608-150BX

End perm 1S 1R F JIC Straight

Danfoss

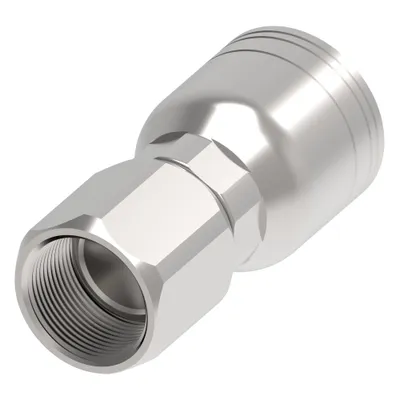

08Z-608

Hose End (perm) Str F SAE 37 Swivel

Danfoss

08Z-606-BG

Hose End (perm) SAE 37

Danfoss

08Z-606

Hose End (perm) SAE 37 STR FEM SWIVEL

Danfoss

08Z-512-BG

Hose End (perm) 1S/1R

Danfoss

08Z-512

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

08Z-510-BG

Hose End (perm) 1S/1R

Danfoss

08Z-510

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

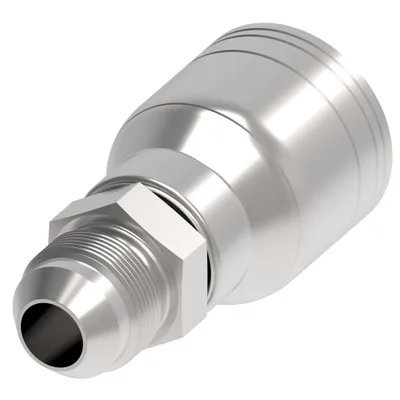

08Z-508-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
08Z-65D	639789320254	1.060	26.9	1.800	45.720
08Z-650-BG	810075336467	1.000	25.4	1.610	40.894
08Z-650	639789293138	1.000	25.4	1.610	40.894
08Z-64C-BG	—	1.060	26.9	1.240	31.496
08Z-64C	639789294807	1.060	26.9	1.240	31.496
08Z-648-BG	810075336450	0.875	22.2	1.540	39.116
08Z-648	639789293121	0.870	22.1	1.540	39.116
08Z-616-BG	810075336443	1.500	38.1	1.890	48.006
08Z-616	639789294791	1.500	38.1	1.890	48.006
08Z-612-BG	810075336436	1.250	31.8	1.560	39.624
08Z-612	639789293114	1.250	31.8	1.560	39.624
08Z-610-BG	810075336429	0.810	20.6	1.470	37.338
08Z-610	639789293107	1.000	22.1	1.470	37.338
08Z-608-TZ	810075334098	0.810	20.6	1.460	37.084
08Z-608-BG	810075336412	0.810	20.6	1.460	37.084
08Z-608-150BX	639789327147	—	22.0	1.440	36.700
08Z-608	639789293091	0.875	20.6	1.460	37.084
08Z-606-BG	810075336405	0.810	20.6	1.360	34.544
08Z-606	639789320247	0.810	20.6	1.360	34.544
08Z-512-BG	810075336399	1.130	28.7	1.420	36.068
08Z-512	639789294784	1.125	28.6	1.420	36.068
08Z-510-BG	810075336382	0.940	23.9	1.260	32.004
08Z-510	639789293084	0.940	23.9	1.260	32.004
08Z-508-BG	810075336375	0.810	20.600	1.400	35.560

Common to all listed parts

Construction Style	Crimp
Hose size	-8
Product material	Carbon steel
Thread sealant	No
