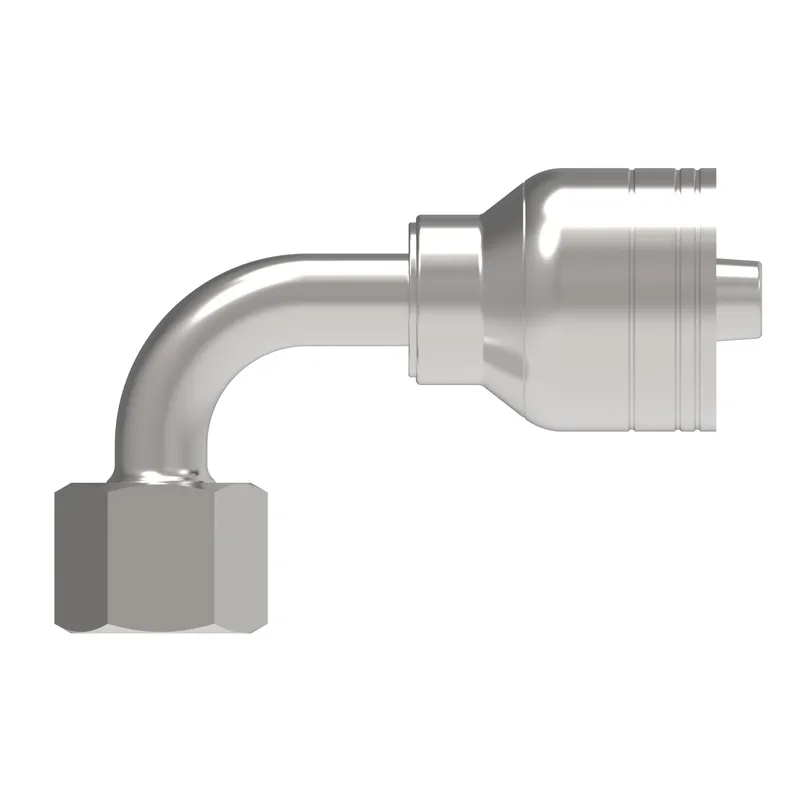

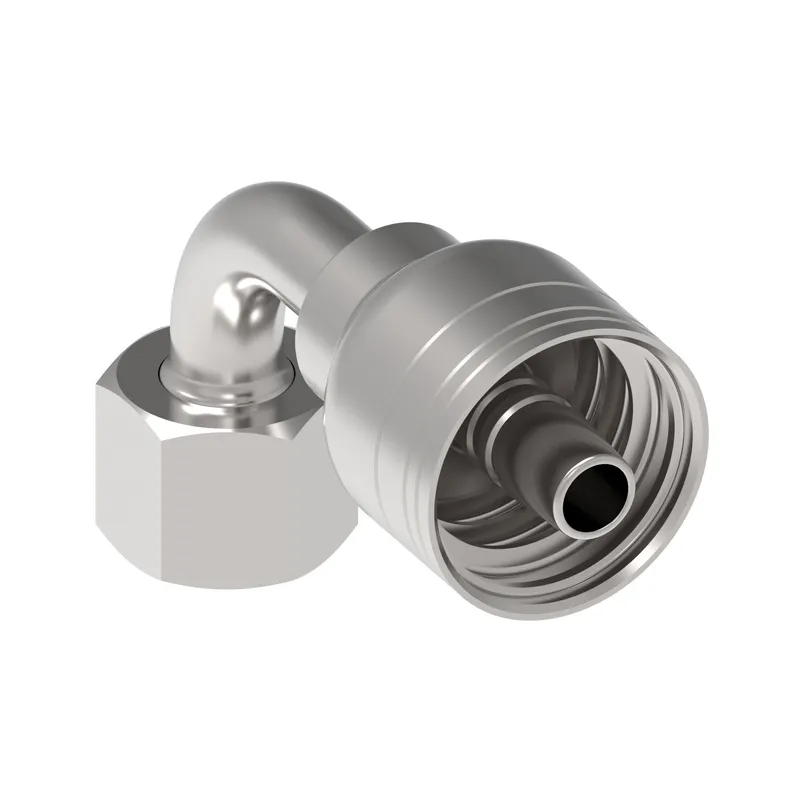

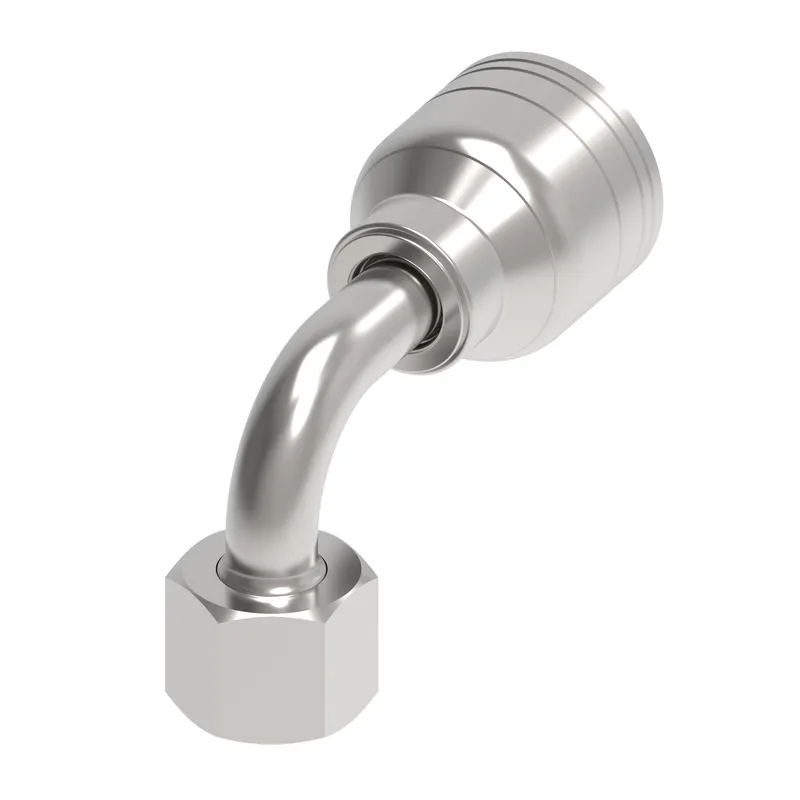

Ftng (perm), DKOL 90D M22x1.5 F SWVL

Name: Ftng (perm), DKOL 90D M22x1.5 F SWVL
Brand: Danfoss (Drives)
SKU: 08Z-65D

MPN: 08Z-65D · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 08Z-65D be shipped?

08Z-65D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-65D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-65D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-65D, subject to availability and destination.

Danfoss Ftng (perm), DKOL 90D M22x1.5 F SWVL, manufacturer part number 08Z-65D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789320254
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible tube OD IN	0.63
Compatible tube OD MM	15.875
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.570
Drop dimension MM	39.9
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.9
Hose cut off factor IN	1.800
Hose cut off factor MM	45.720
Hose size	-8
Inside diameter IN	0.350
Inside diameter MM	8.890
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.625
Tube OD 1 MM	15.875
