Danfoss 08Z-608-150BX

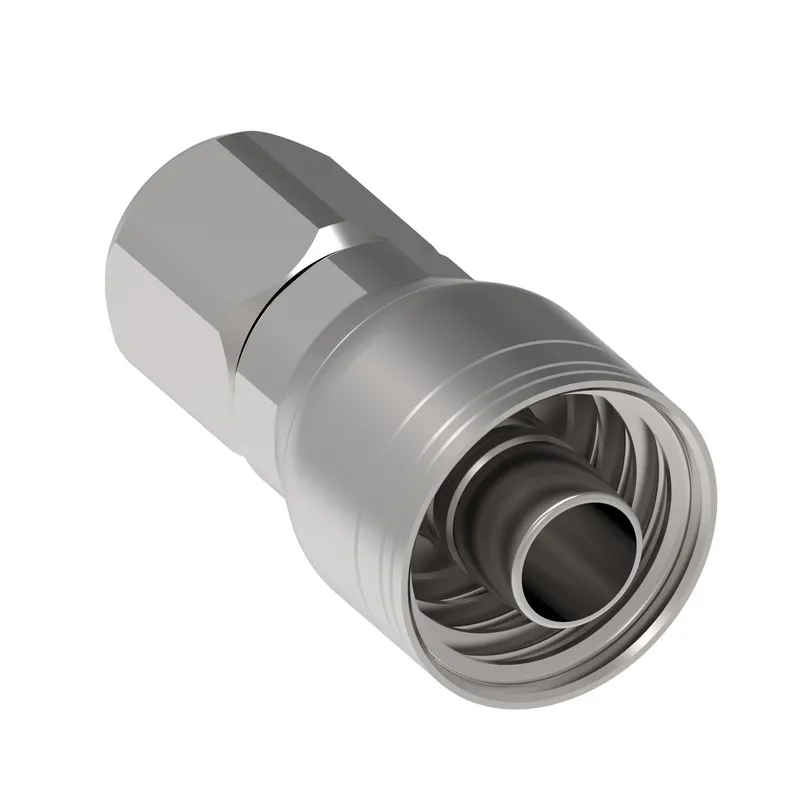

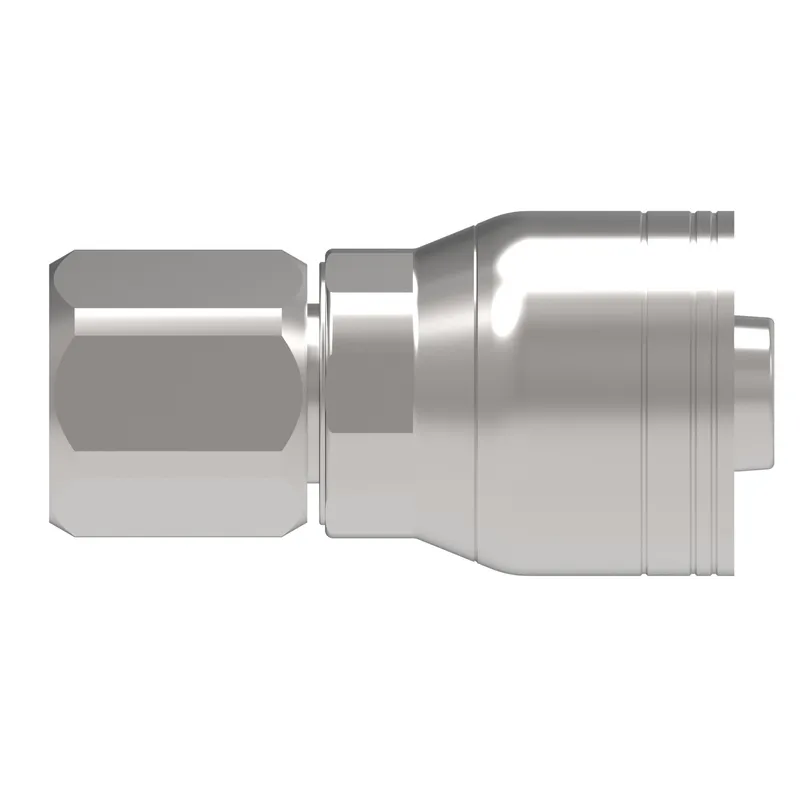

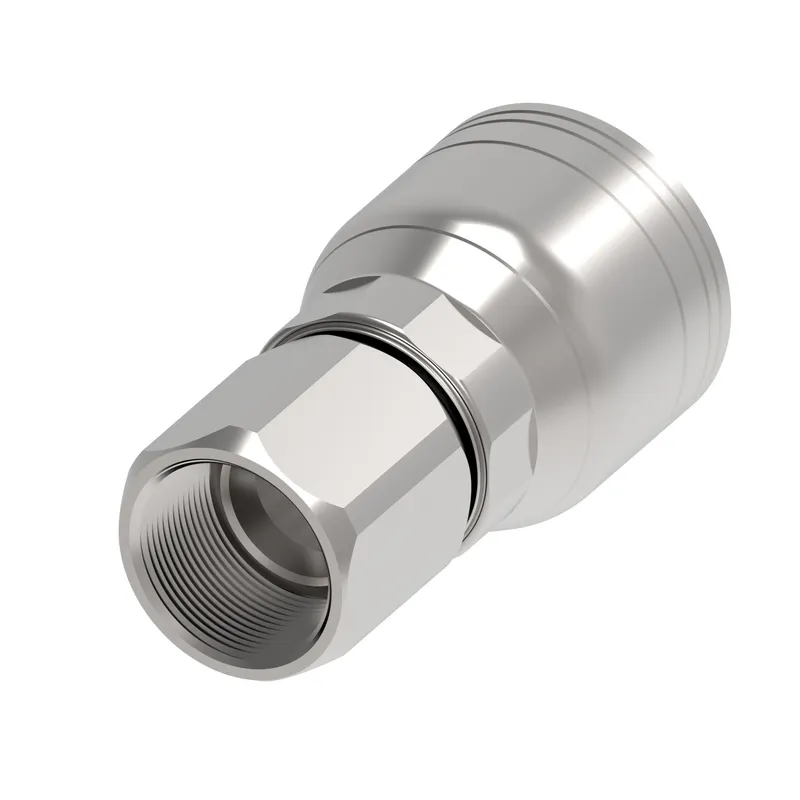

End perm 1S 1R F JIC Straight

MPN
08Z-608-150BX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-608-150BX?

Danfoss End perm 1S 1R F JIC Straight, manufacturer part number 08Z-608-150BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789327147
A dimension IN2.490
A dimension MM63.246
Angle shapeStraight
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesH881
Construction StyleCrimp
End connection torque38-42 lb-ft(52-58 Nm)
End size 1-8
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 MM22.0
Hex size 2 IN0.875
Hex size 2 MM22.0
Hose cut off factor IN1.440
Hose cut off factor MM36.700
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.600
Product height in1.220
Product height mm31.000
Product materialCarbon steel
Series1A/Z Series
Thread sealantNo
Thread size 13/4-16 UNF
Working pressure max BAR360
Working pressure max PSI5300
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

08Z-608-150BX: frequently asked questions

When can 08Z-608-150BX be shipped?

08Z-608-150BX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-608-150BX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-608-150BX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-608-150BX, subject to availability and destination.
