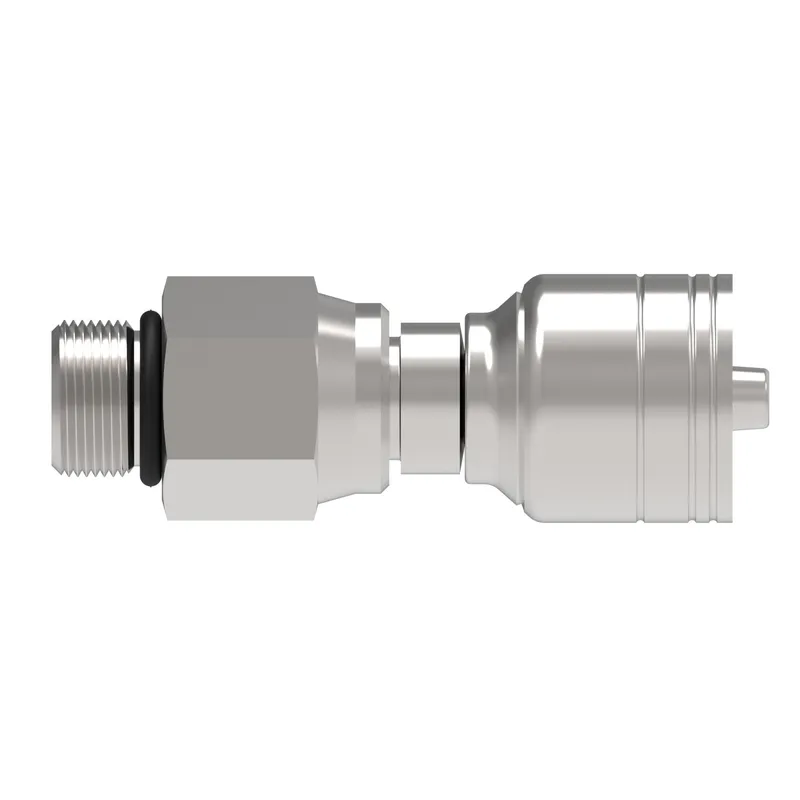

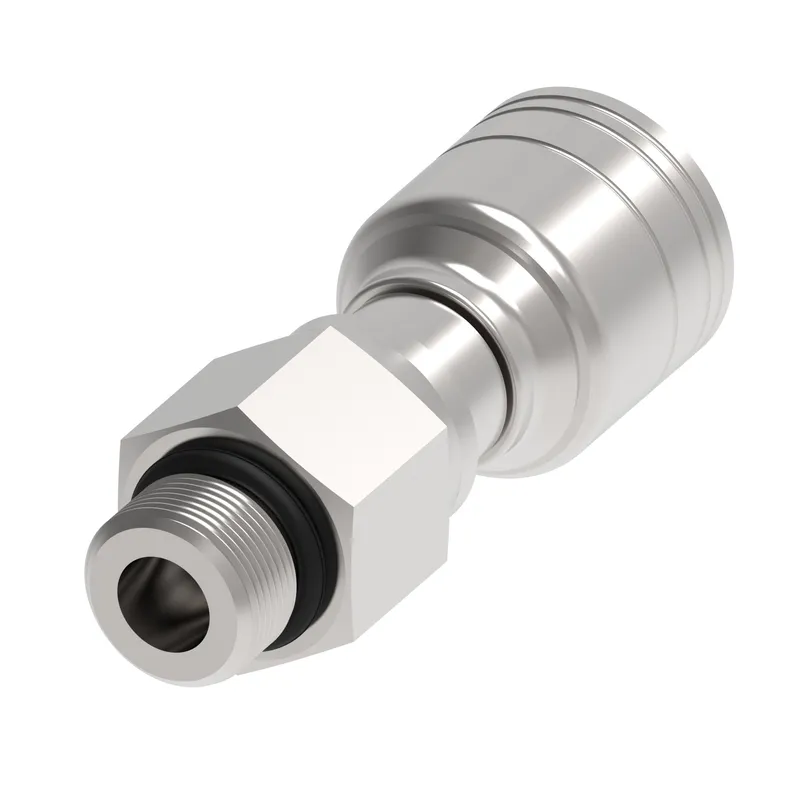

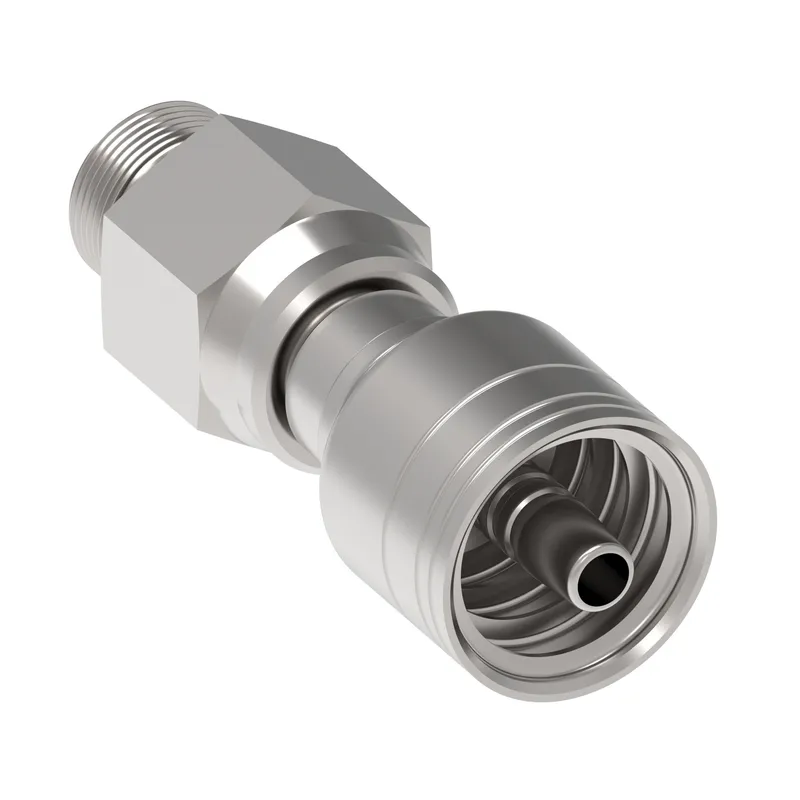

Danfoss 08Z-R10-BG

Ftng (perm), SAE ORB

MPN
08Z-R10-BG
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-R10-BG?

Danfoss Ftng (perm), SAE ORB, manufacturer part number 08Z-R10-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC810075336863
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.63
Compatible tube OD MM15.875
CompliancesSAE J1176
Construction StyleCrimp
End size 1-10
End type 1Male ORB ISO 11926-3
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.4
Hose cut off factor IN1.860
Hose cut off factor MM47.244
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.625
Tube OD 1 MM15.875
