Danfoss 08Z-R12

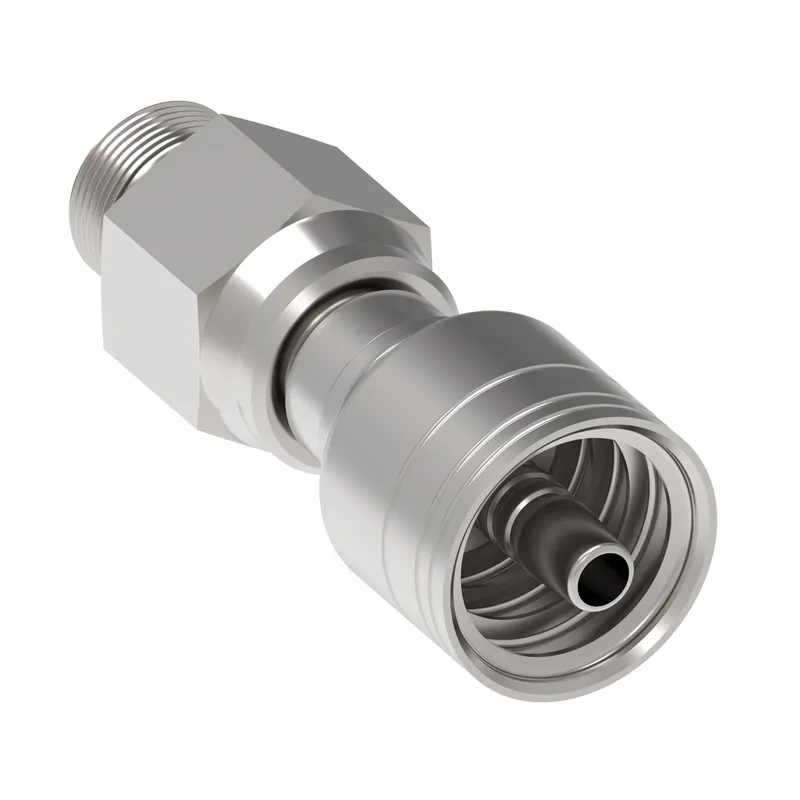

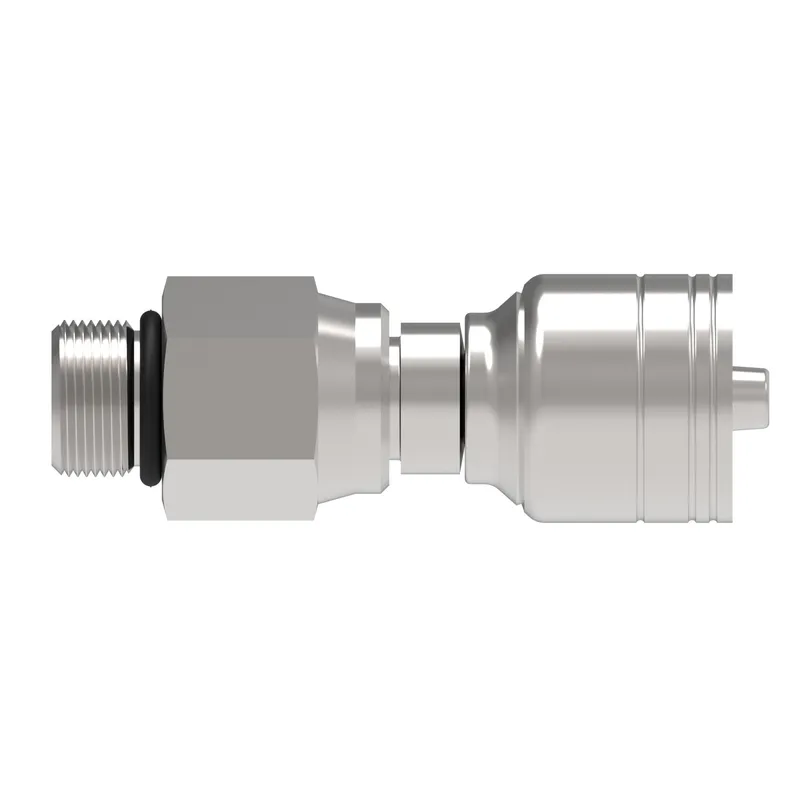

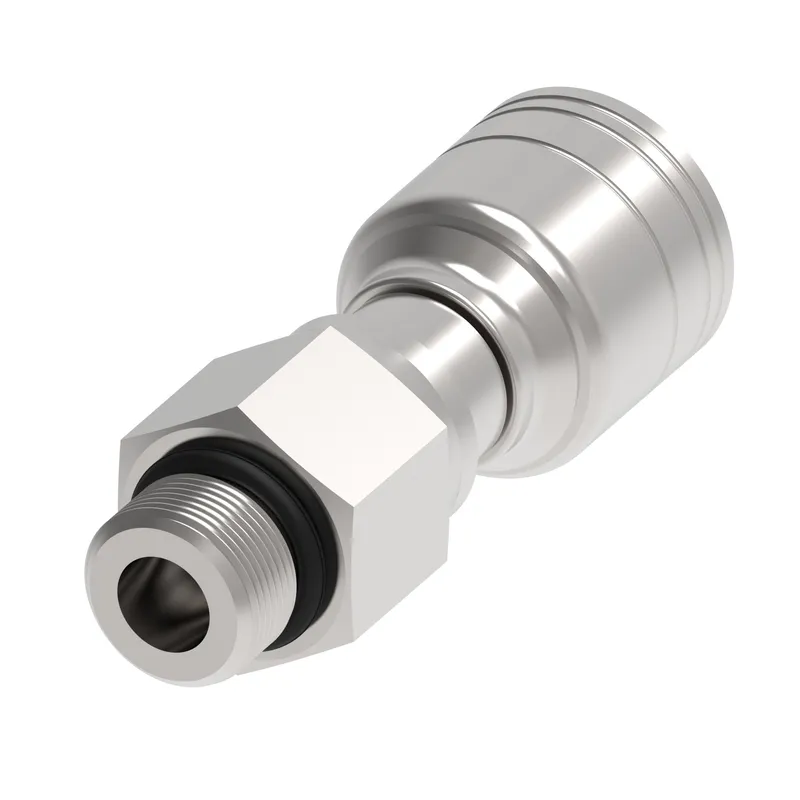

Ftng (perm), SAE ORB STR MALE SWIVEL

MPN
08Z-R12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-R12?

Danfoss Ftng (perm), SAE ORB STR MALE SWIVEL, manufacturer part number 08Z-R12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789321442
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
CompliancesSAE J1176
Construction StyleCrimp
End size 1-12
End type 1Male ORB ISO 11926-3
Finish platingDura-Kote
Hex size 1 IN1.440
Hex size 1 MM36.6
Hose cut off factor IN2.320
Hose cut off factor MM58.928
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo

08Z-R12: frequently asked questions

When can 08Z-R12 be shipped?

08Z-R12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-R12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-R12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-R12, subject to availability and destination.
