Danfoss 08Z-R70

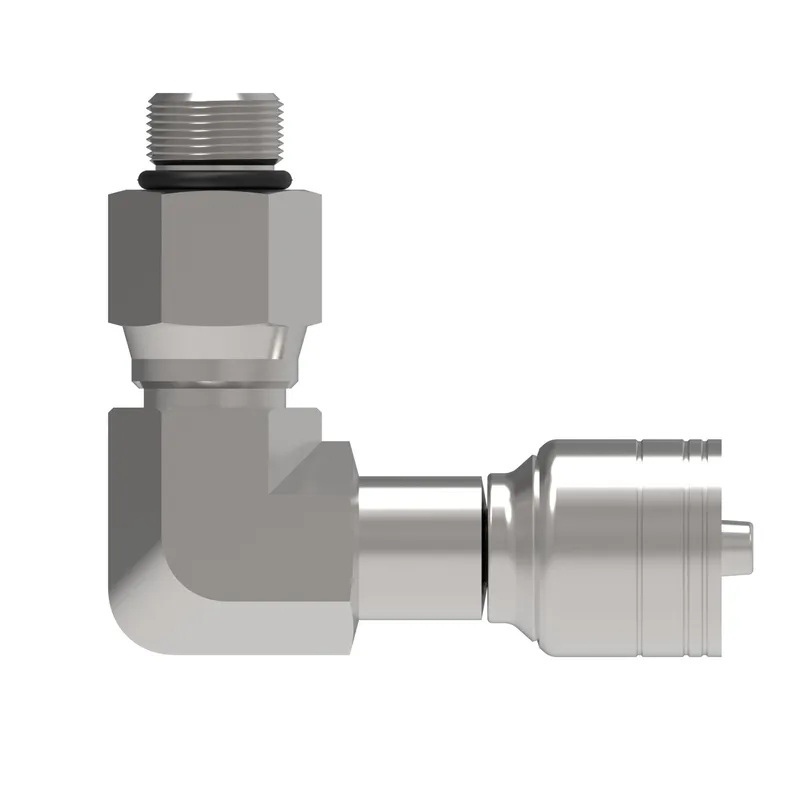

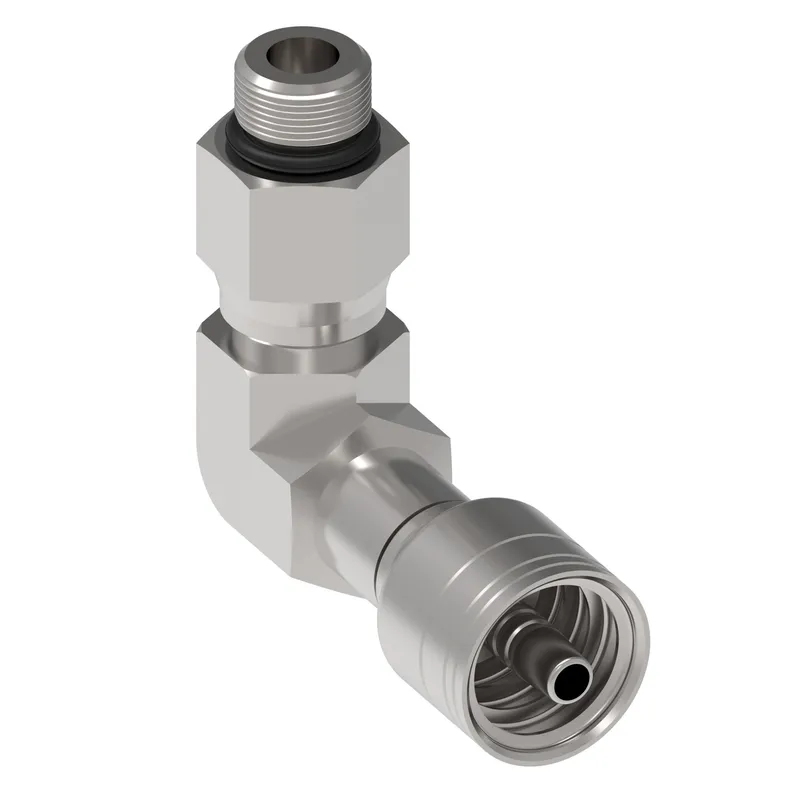

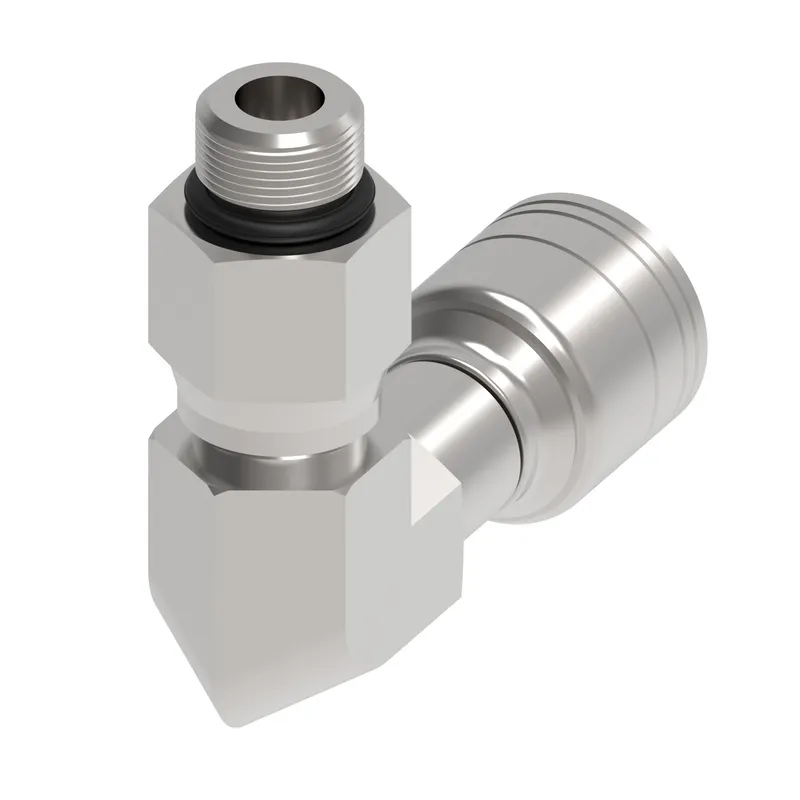

HOSE FTG, 1A/08, ORB-M/10, CS, 90D

MPN
08Z-R70
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-R70?

Danfoss HOSE FTG, 1A/08, ORB-M/10, CS, 90D, manufacturer part number 08Z-R70. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789321107
A dimension IN2.680
A dimension MM68.100
Angle shape90 Degree
Construction StyleCrimp
Drop dimension IN1.970
Drop dimension MM50.0
End type 1Male ORB ISO 11926-3
Hose cut off factor IN1.510
Hose cut off factor MM38.400
Hose size-10
Inside diameter IN0.380
Inside diameter MM9.600
Product height in2.580
Product height mm65.532
Product length in3.180
Product length mm80.772
Product materialCarbon steel
Product width in1.220
Product width mm30.988 mm
Seal materialNitrile (NBR)
Thread size 17/8-14 UNF

08Z-R70: frequently asked questions

When can 08Z-R70 be shipped?

08Z-R70 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-R70 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-R70 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-R70, subject to availability and destination.
