Danfoss 10411-20-06Z

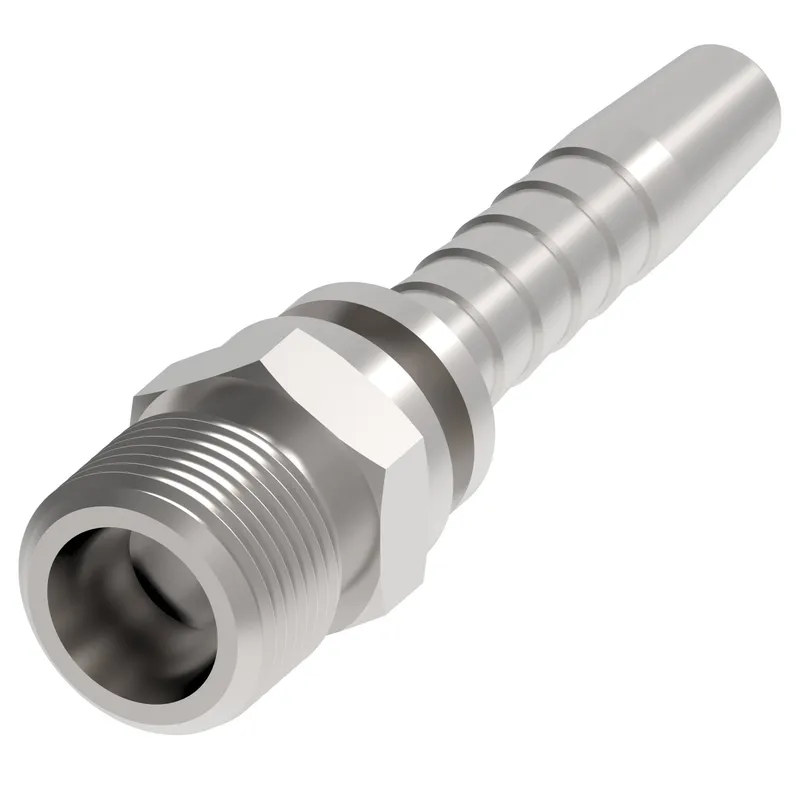

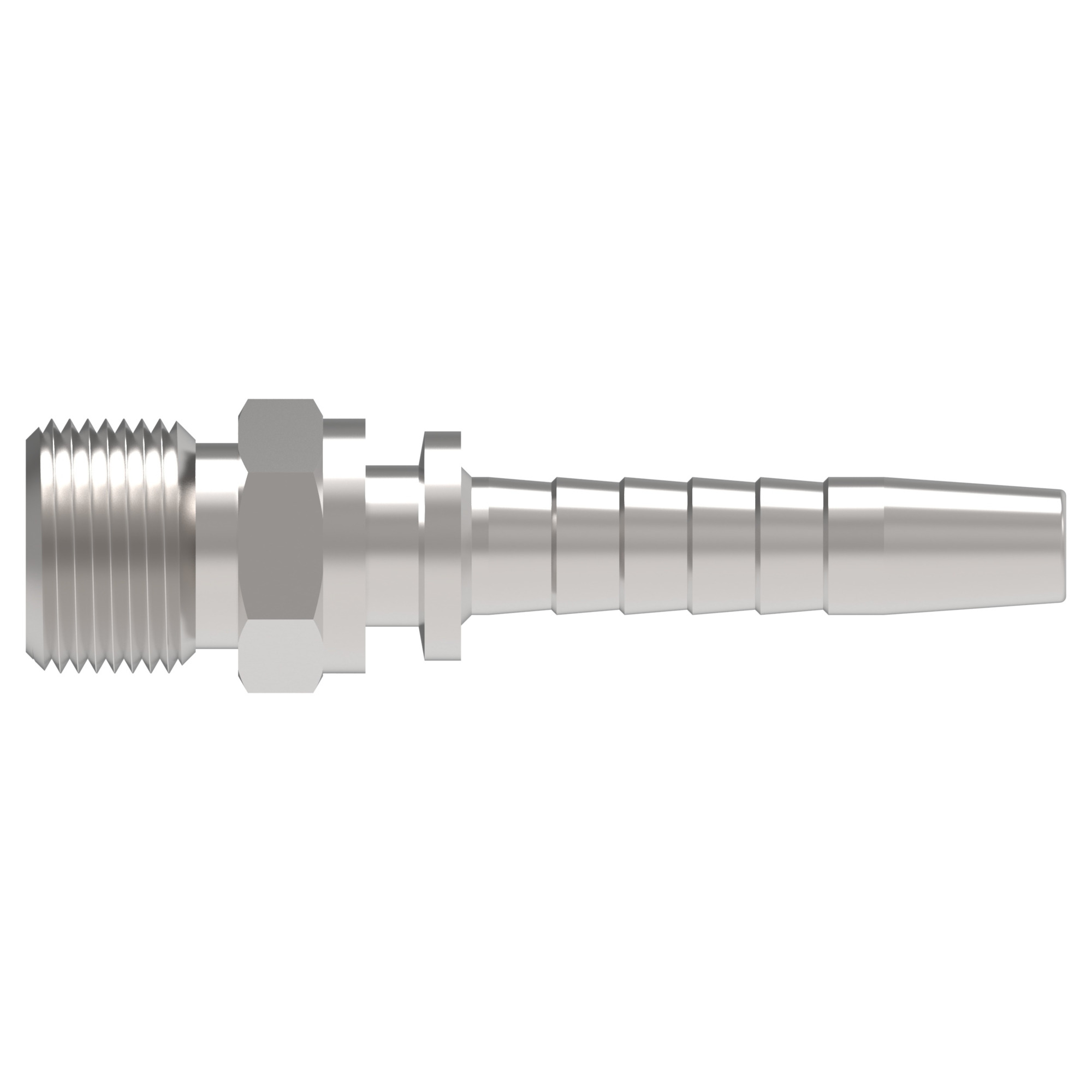

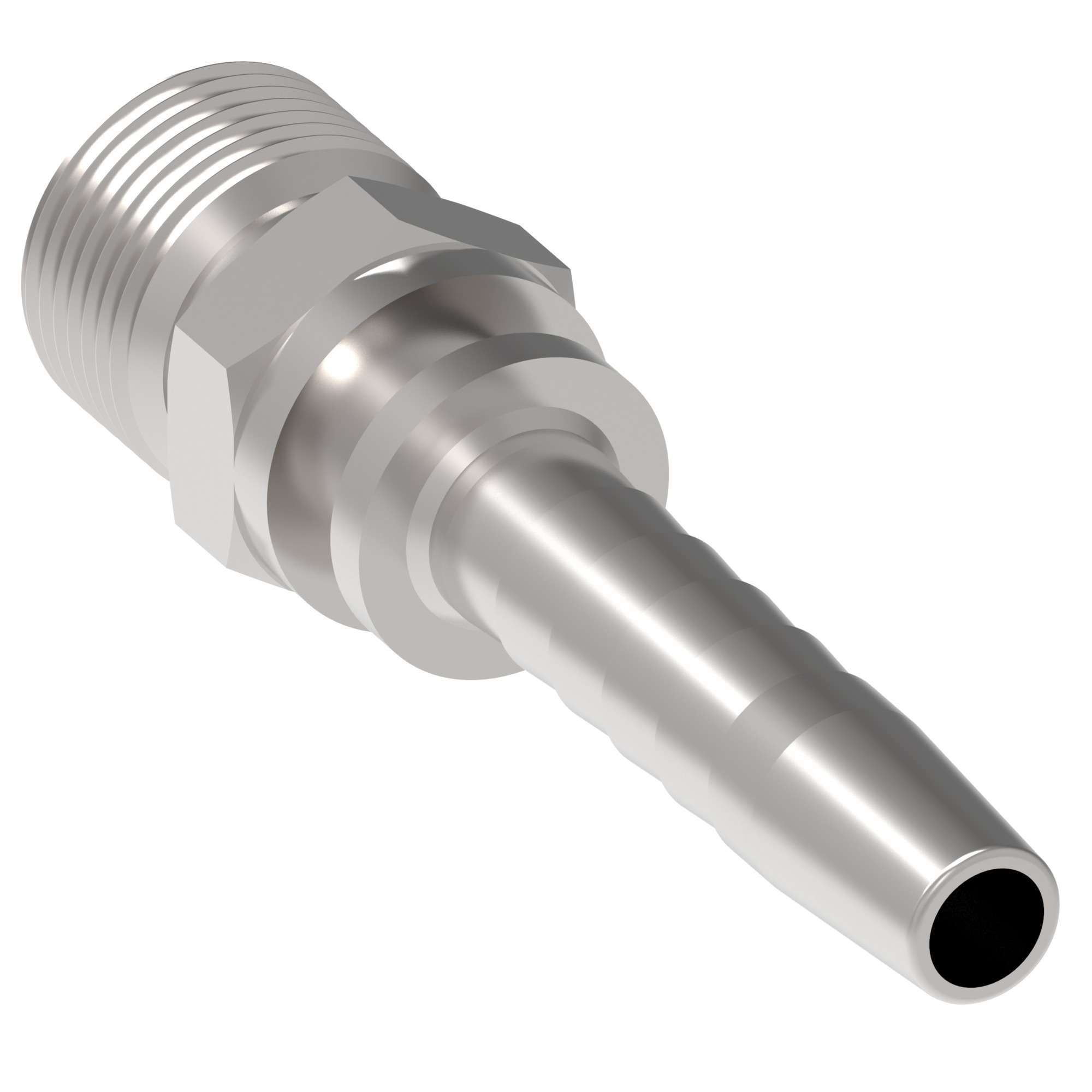

HOSE NIPPLE ASSY,2P/06,DKOL/20,CS,STR

MPN: 10411-20-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10411-20-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOL/20,CS,STR, manufacturer part number 10411-20-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.240
A dimension MM	57.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End size 1	-20
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hose cut off factor IN	1.060
Hose cut off factor MM	27.000
Hose size	-6
Inside diameter IN	0.2700
Inside diameter MM	7.0000
Product height in	1.000
Product height mm	25.400
Product length in	2.240
Product length mm	56.896
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098 mm
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M20X1.5
Working pressure max BAR	125
Working pressure max PSI	1800
