Danfoss 10411-22-08ZF

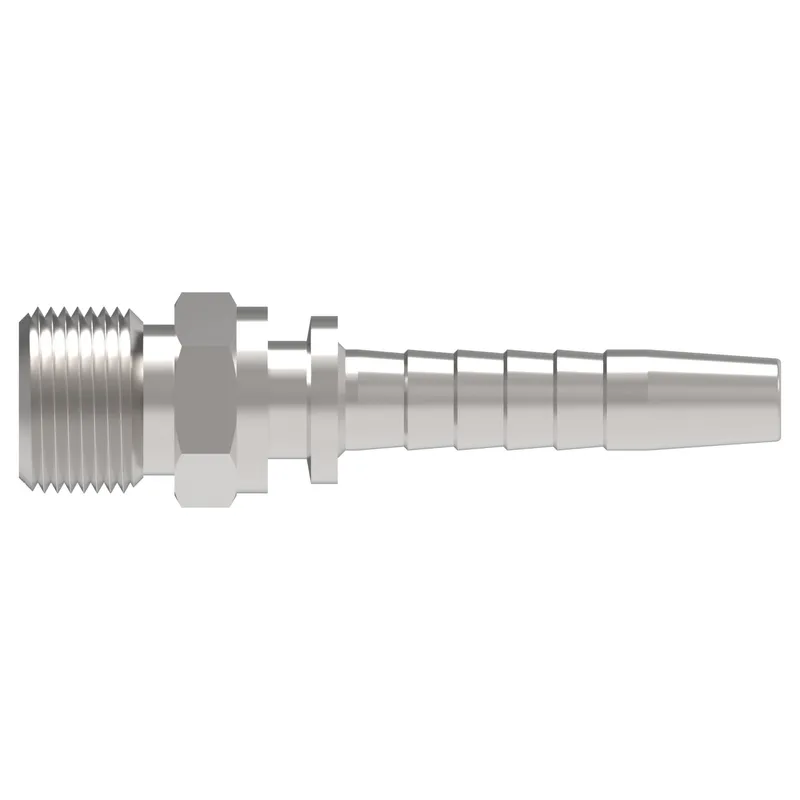

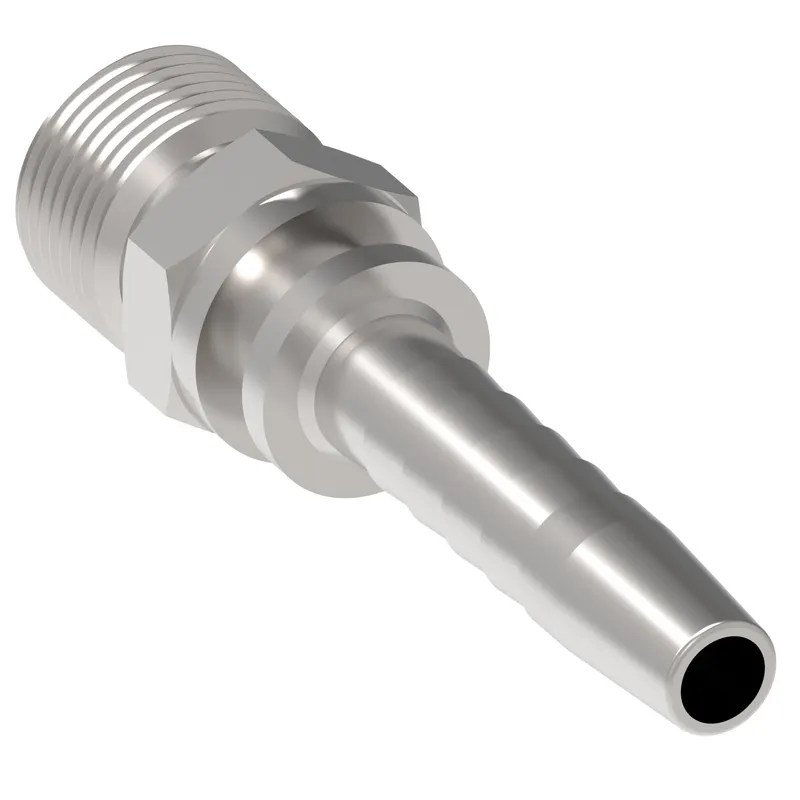

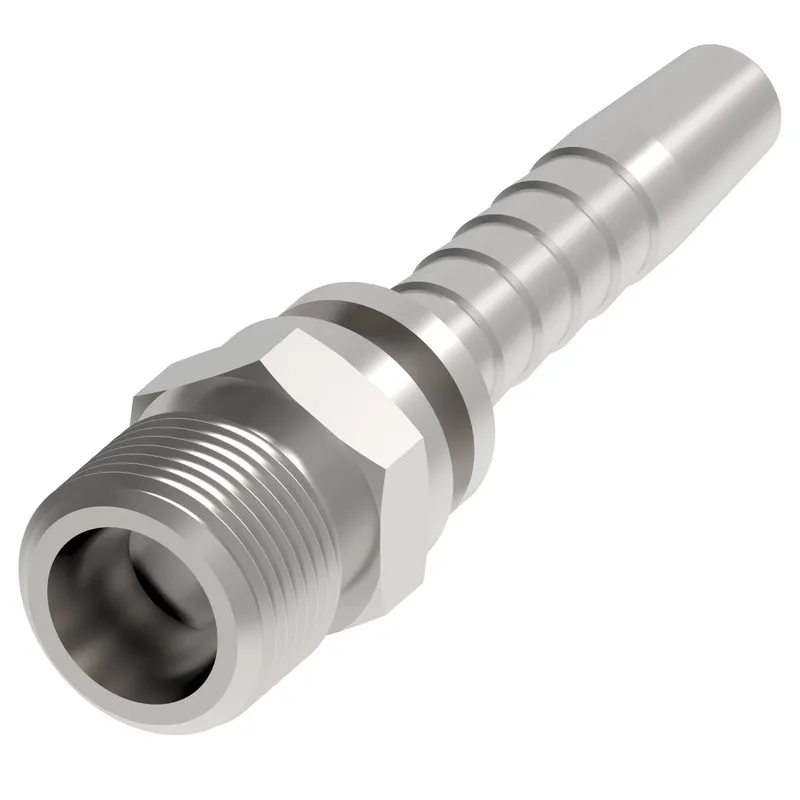

HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR

MPN: 10411-22-08ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10411-22-08ZF?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR, manufacturer part number 10411-22-08ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.260
A dimension MM	57.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	1.020
Hose cut off factor MM	26.000
Hose size	-8
Inside diameter IN	0.3900
Inside diameter MM	10.0000
Product height in	1.091
Product height mm	27.701
Product length in	2.264
Product length mm	57.501
Product material	Carbon steel
Product width in	0.945
Product width mm	24.000 mm
Series	Winner 2-Piece
Thread size 1	M22X1.5
