Braided hose and fittings Parts

Danfoss

14211-08-08ZF

HOSE NIPPLE ASSY,2P/08,ORS-M/08,CS,STR

Danfoss

14211-08-06ZF

HOSE NIPPLE ASSY,2P/06,ORS-M/08,CS,STR

Danfoss

14211-06-06ZF

HOSE NIPPLE ASSY,2P/06,ORS-M/06,CS,STR

Danfoss

14211-06-04ZF

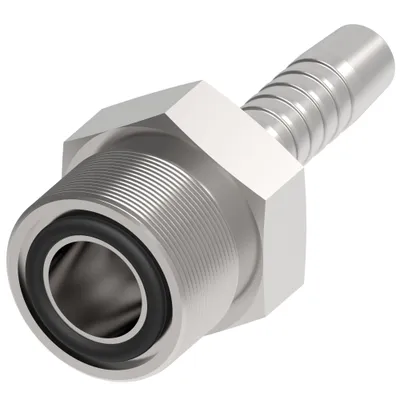

HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR

Danfoss

13011Y-24-24SPZ

HOSE NIPPLE ASSY,2P/24,BSPT-M/24,CS,STR

Danfoss

13011Y-16-16SPZ

HOSE NIPPLE ASSY,2P/16,BSPT-M/16,CS,STR

Danfoss

13011Y-12-12SPZ

HOSE NIPPLE ASSY,2P/12,BSPT-M/12,CS,STR

Danfoss

13011Y-08-08SPZ

HOSE NIPPLE ASSY,2P/08,BSPT-M/08,CS,STR

Danfoss

13011Y-06-06SPZ

HOSE NIPPLE ASSY,2P/06,BSPT-M/06,CS,STR

Danfoss

13011Y-04-04SPZ

HOSE NIPPLE ASSY,2P/04,BSPT-M/04,CS,STR

Danfoss

13011Y-02-04SPZ

HOSE NIPPLE ASSY,2P/04,BSPT-M/02,CS,STR

Danfoss

13011-32-32SPZ

HOSE NIPPLE ASSY,2P/32,BSPT-M/32,CS,STR

Danfoss

13011-24-24SPZ

HOSE NIPPLE ASSY,2P/24,BSPT-M/24,CS,STR

Danfoss

13011-20-20SPZ

HOSE NIPPLE ASSY,2P/20,BSPT-M/20,CS,STR

Danfoss

13011-16-20SPZ

FITTING-NIPPLE

Danfoss

13011-16-16SPZ

HOSE NIPPLE ASSY,2P/16,BSPT-M/16,CS,STR

Danfoss

13011-16-12SPZ

HOSE NIPPLE ASSY,2P/12,BSPT-M/16,CS,STR

Danfoss

13011-12-16SPZ

HOSE NIPPLE ASSY,2P/16,BSPT-M/12,CS,STR

Danfoss

13011-12-12SPZF

HOSE NIPPLE ASSY,2P/12,BSPT-M/12,CS,STR

Danfoss

13011-12-12SPZ

HOSE NIPPLE ASSY,2P/12,BSPT-M/12,CS,STR

Danfoss

13011-12-10SPZ

HOSE NIPPLE ASSY,2P/10,BSPT-M/12,CS,STR

Danfoss

13011-12-08SPZ

HOSE NIPPLE ASSY,2P/08,BSPT-M/12,CS,STR

Danfoss

13011-10-10SPZ

HOSE NIPPLE ASSY,2P/10,BSPT-M/10,CS,STR

Danfoss

13011-08-12SPZ

HOSE NIPPLE ASSY,2P/12,BSPT-M/08,CS,STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Product height in	Product height mm	Product length in	Product length mm
14211-08-08ZF	60.000	1.000	25.400	2.362	60.000
14211-08-06ZF	57.500	1.000	25.400	2.263	57.500
14211-06-06ZF	54.000	0.862	21.900	2.126	54.000
14211-06-04ZF	52.000	0.862	21.900	2.047	52.000
13011Y-24-24SPZ	120.500	2.697	68.500	4.744	120.500
13011Y-16-16SPZ	92.000	1.929	49.000	3.622	92.000
13011Y-12-12SPZ	77.000	1.555	39.500	3.031	77.000
13011Y-08-08SPZ	66.500	1.213	30.800	2.618	66.500
13011Y-06-06SPZ	57.500	1.074	27.300	2.263	57.500
13011Y-04-04SPZ	55.000	0.897	22.800	2.165	55.000
13011Y-02-04SPZ	50.500	0.540	13.716	1.980	50.292
13011-32-32SPZ	129.000	2.953	75.000	5.078	129.000
13011-24-24SPZ	120.500	2.271	57.700	4.744	120.500
13011-20-20SPZ	103.500	2.090	53.100	4.074	103.500
13011-16-20SPZ	63.500	1.864	47.345	4.035	102.480
13011-16-16SPZ	92.000	1.637	41.600	3.622	92.000
13011-16-12SPZ	82.000	1.637	41.600	3.228	82.000
13011-12-16SPZ	87.500	1.450	36.830	3.440	87.376
13011-12-12SPZF	77.000	1.228	31.200	3.031	77.000
13011-12-12SPZ	77.000	1.228	31.200	3.031	77.000
13011-12-10SPZ	72.000	1.227	31.165	2.830	71.882
13011-12-08SPZ	68.500	1.228	31.200	2.696	68.500
13011-10-10SPZ	68.500	1.091	27.711	2.696	68.478
13011-08-12SPZ	76.500	1.228	31.200	3.011	76.500

Common to all listed parts

Angle shape	Straight
Product material	Carbon steel
