Danfoss 13011-08-12SPZ

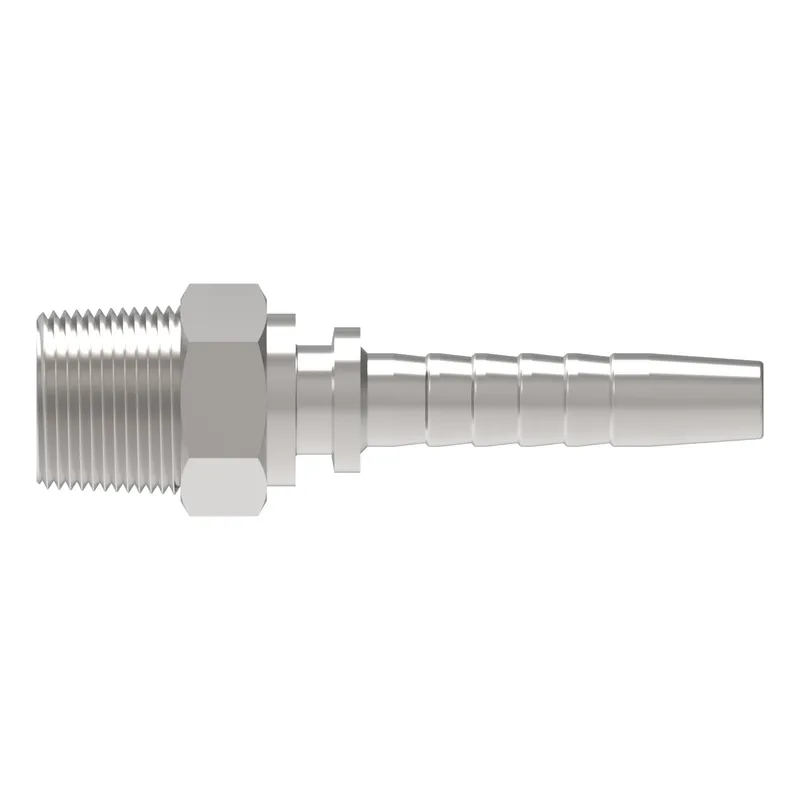

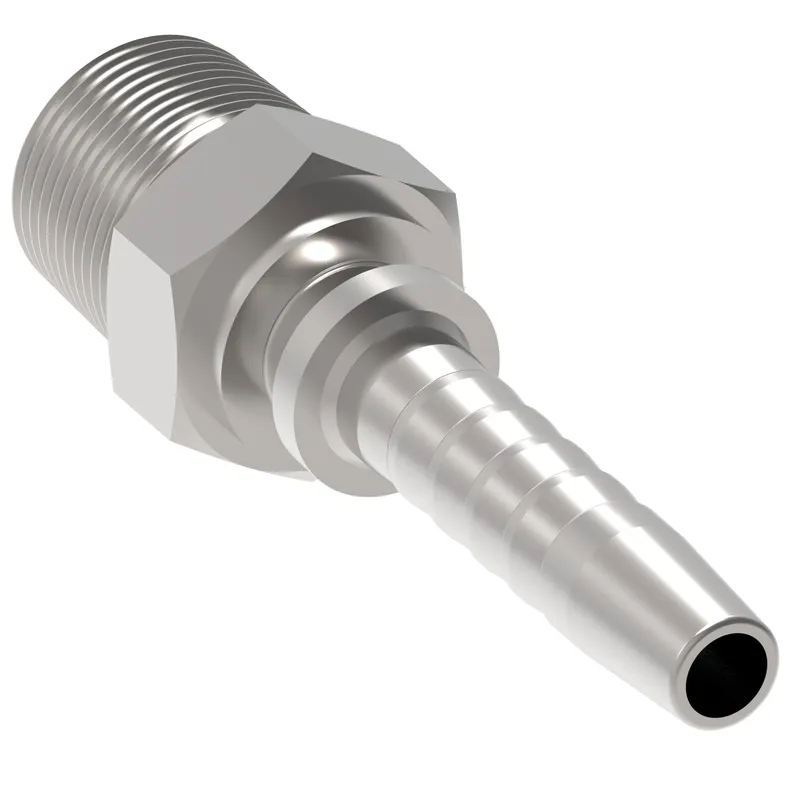

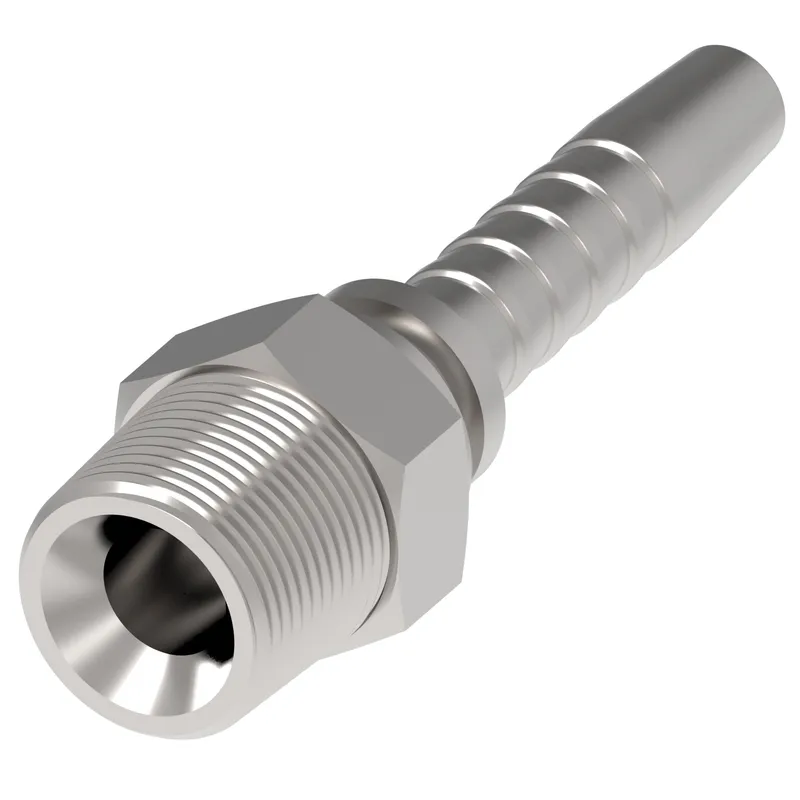

HOSE NIPPLE ASSY,2P/12,BSPT-M/08,CS,STR

MPN
13011-08-12SPZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 13011-08-12SPZ?

Danfoss HOSE NIPPLE ASSY,2P/12,BSPT-M/08,CS,STR, manufacturer part number 13011-08-12SPZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.010
A dimension MM76.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
End size 1-8
End size 2-12
End Type 1Male pipe BSPT
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.063
Hex size 1 MM27.000
Hose cut off factor IN1.490
Hose cut off factor MM38.000
Hose size-12
Inside diameter IN0.470
Inside diameter MM12.000
Product height in1.228
Product height mm31.200
Product length in3.011
Product length mm76.500
Product materialCarbon steel
Product width in1.063
Product width mm27
SeriesWinner 2-Piece
Thread sealantYes
Thread size 1R 1/2
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

13011-08-12SPZ: frequently asked questions

When can 13011-08-12SPZ be shipped?

13011-08-12SPZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 13011-08-12SPZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 13011-08-12SPZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13011-08-12SPZ, subject to availability and destination.
