Danfoss 13011Y-24-24SPZ

HOSE NIPPLE ASSY,2P/24,BSPT-M/24,CS,STR

MPN
13011Y-24-24SPZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 13011Y-24-24SPZ?

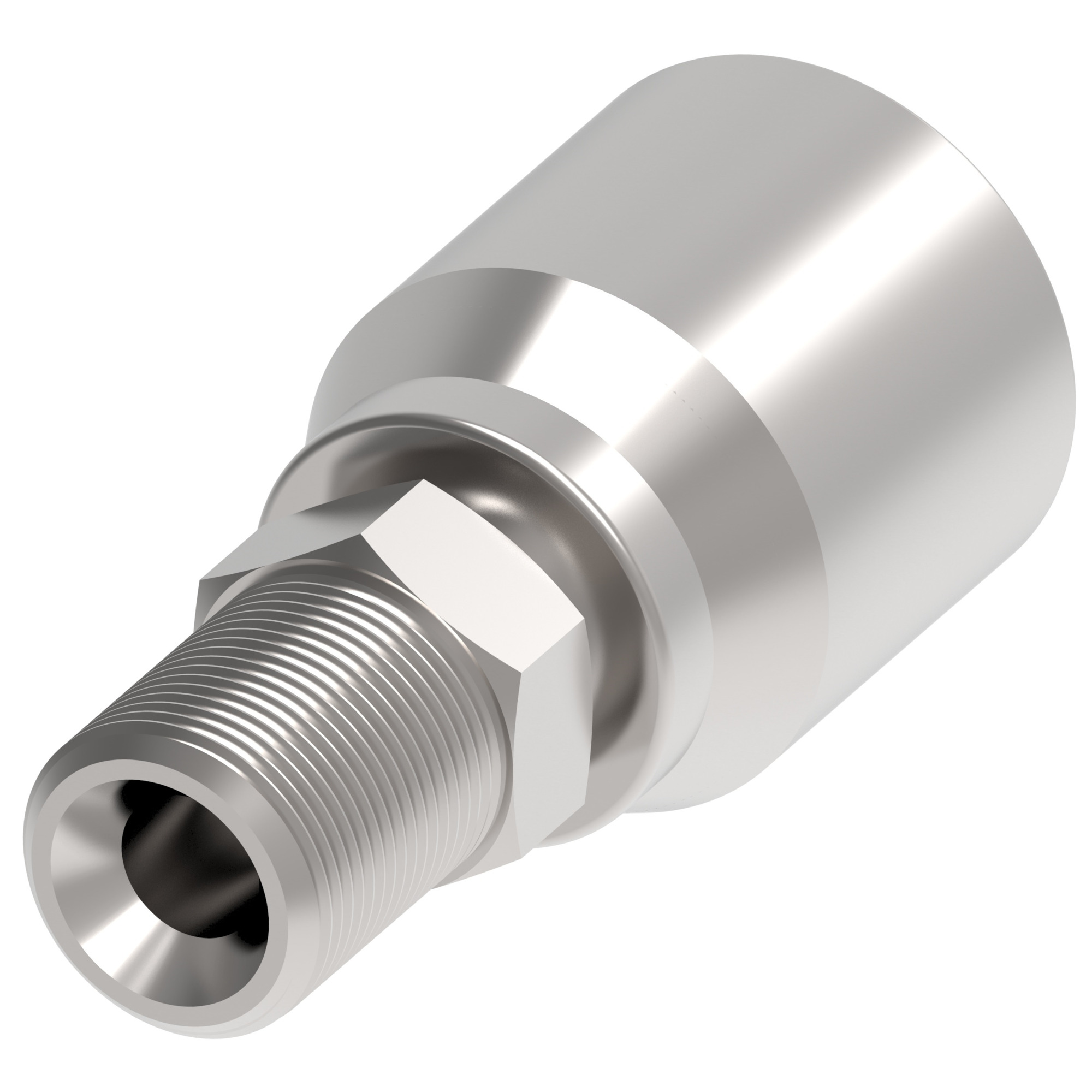

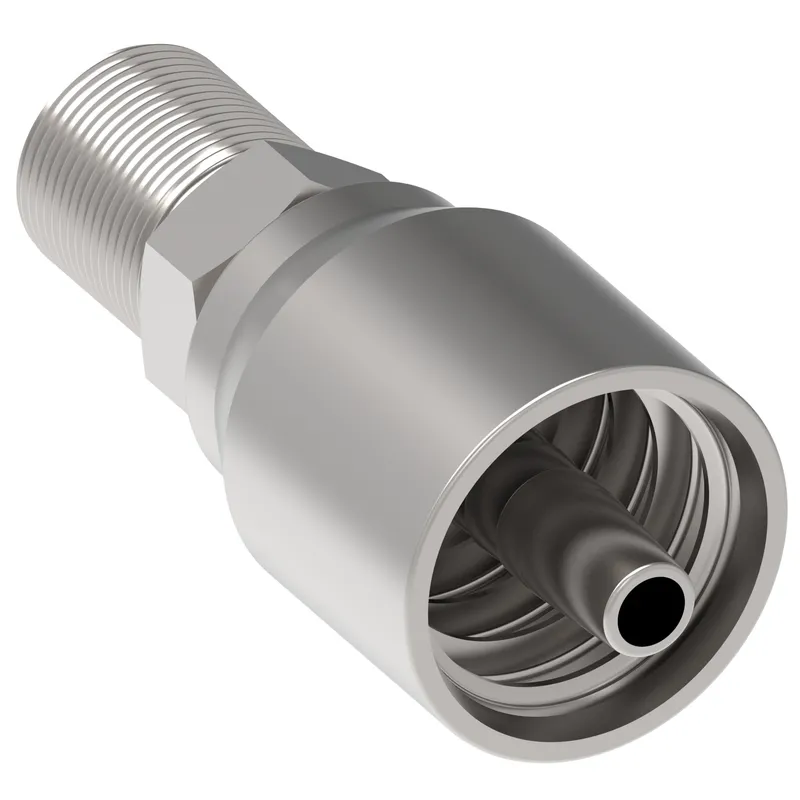

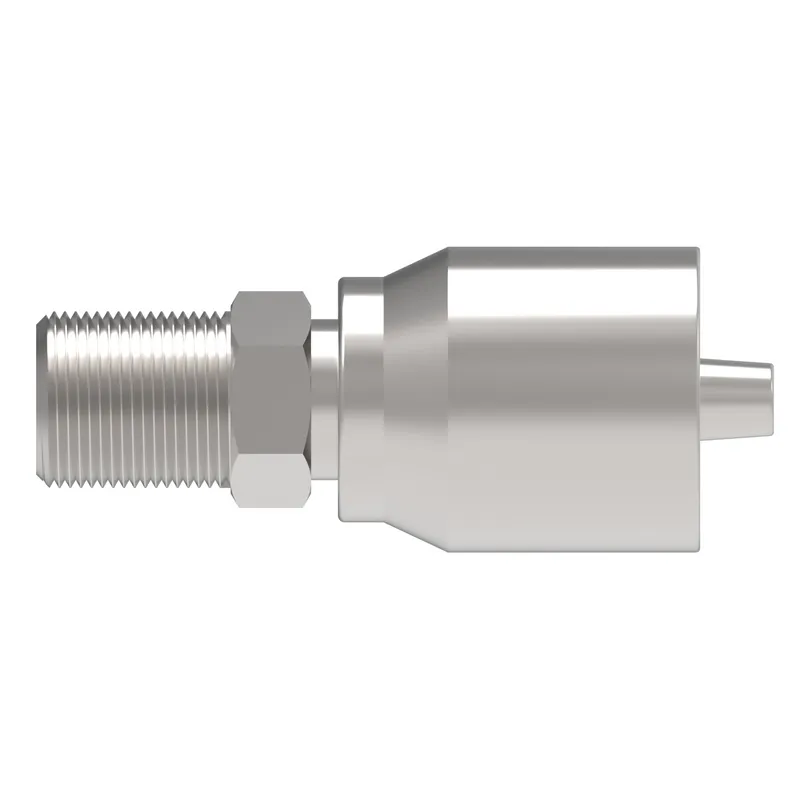

Danfoss HOSE NIPPLE ASSY,2P/24,BSPT-M/24,CS,STR, manufacturer part number 13011Y-24-24SPZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.740
A dimension MM120.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-24
End size 2-24
End Type 1Male pipe BSPT
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.969
Hex size 1 MM50.000
Hose cut off factor IN2.060
Hose cut off factor MM52.500
Hose size-24
Inside diameter IN1.250
Inside diameter MM32.000
Product height in2.697
Product height mm68.500
Product length in4.744
Product length mm120.500
Product materialCarbon steel
Product width in2.696
Product width mm68.5
SeriesWinner 2-Piece
Thread sealantYes
Thread size 1R 1 1/2
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

13011Y-24-24SPZ: frequently asked questions

When can 13011Y-24-24SPZ be shipped?

13011Y-24-24SPZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 13011Y-24-24SPZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 13011Y-24-24SPZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13011Y-24-24SPZ, subject to availability and destination.
