Danfoss 13011-20-20SPZ

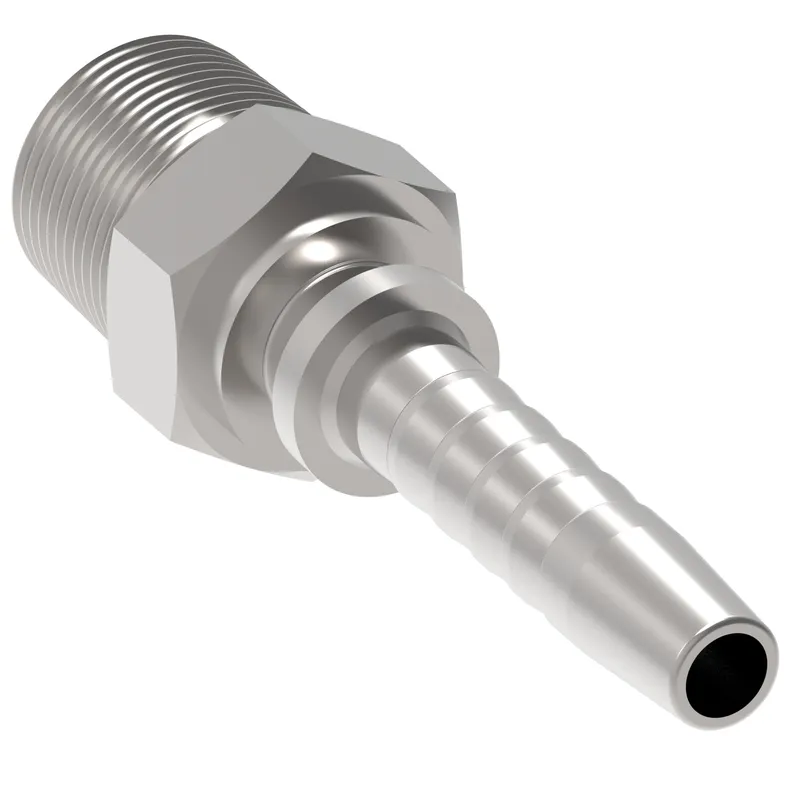

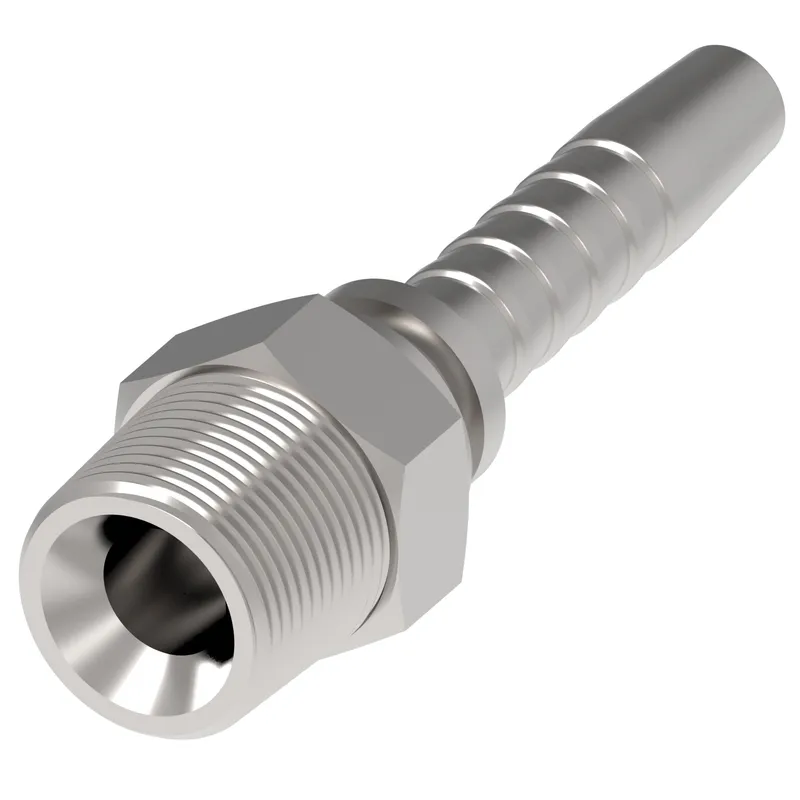

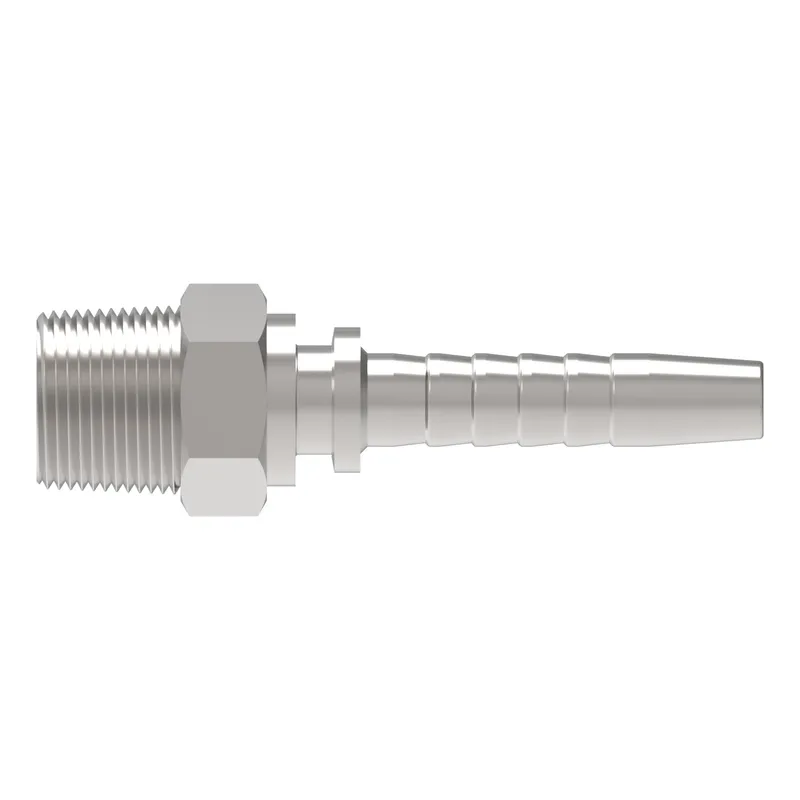

HOSE NIPPLE ASSY,2P/20,BSPT-M/20,CS,STR

MPN
13011-20-20SPZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 13011-20-20SPZ?

Danfoss HOSE NIPPLE ASSY,2P/20,BSPT-M/20,CS,STR, manufacturer part number 13011-20-20SPZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.070
A dimension MM103.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Construction StyleCrimp
End size 1-20
End size 2-20
End Type 1Male pipe BSPT
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.811
Hex size 1 MM46.000
Hose cut off factor IN1.940
Hose cut off factor MM49.500
Hose size-20
Inside diameter IN1.060
Inside diameter MM27.000
Product height in2.090
Product height mm53.100
Product length in4.074
Product length mm103.500
Product materialCarbon steel
Product width in1.811
Product width mm46
SeriesWinner 2-Piece
Thread sealantYes
Thread size 1R 1 1/4
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

13011-20-20SPZ: frequently asked questions

When can 13011-20-20SPZ be shipped?

13011-20-20SPZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 13011-20-20SPZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 13011-20-20SPZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13011-20-20SPZ, subject to availability and destination.
