Danfoss 14211-08-06ZF

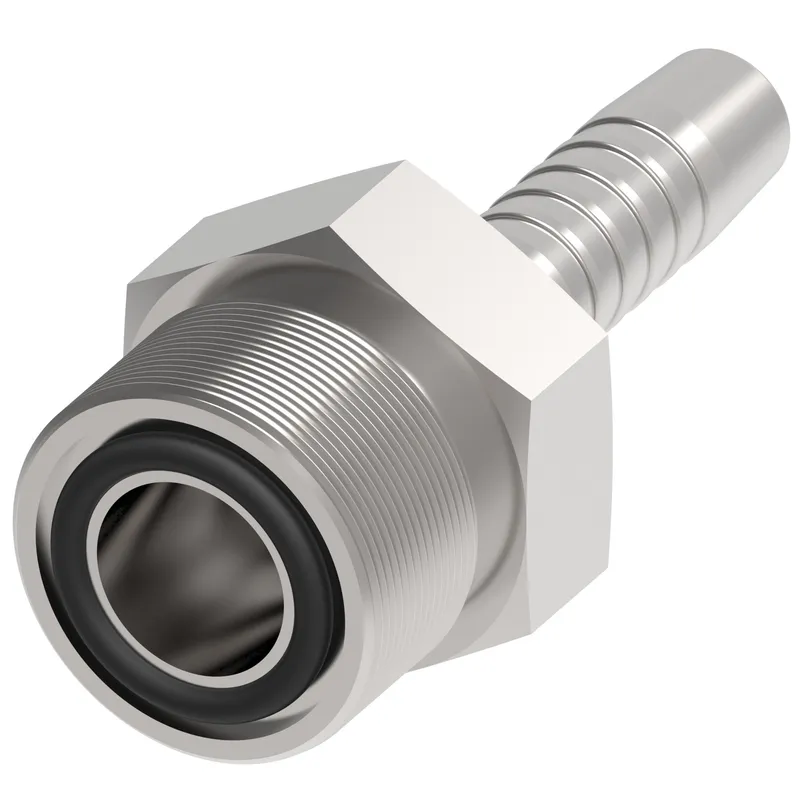

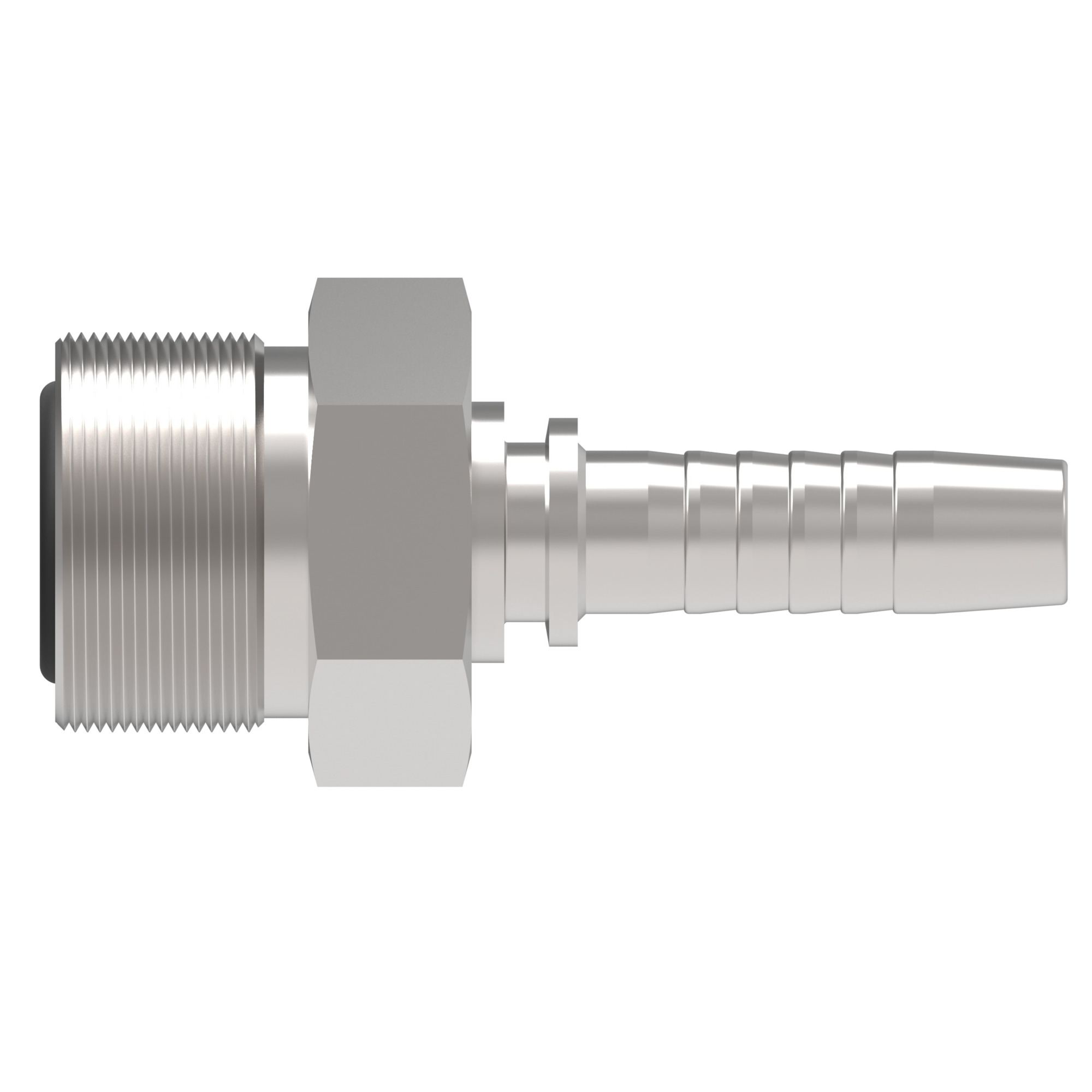

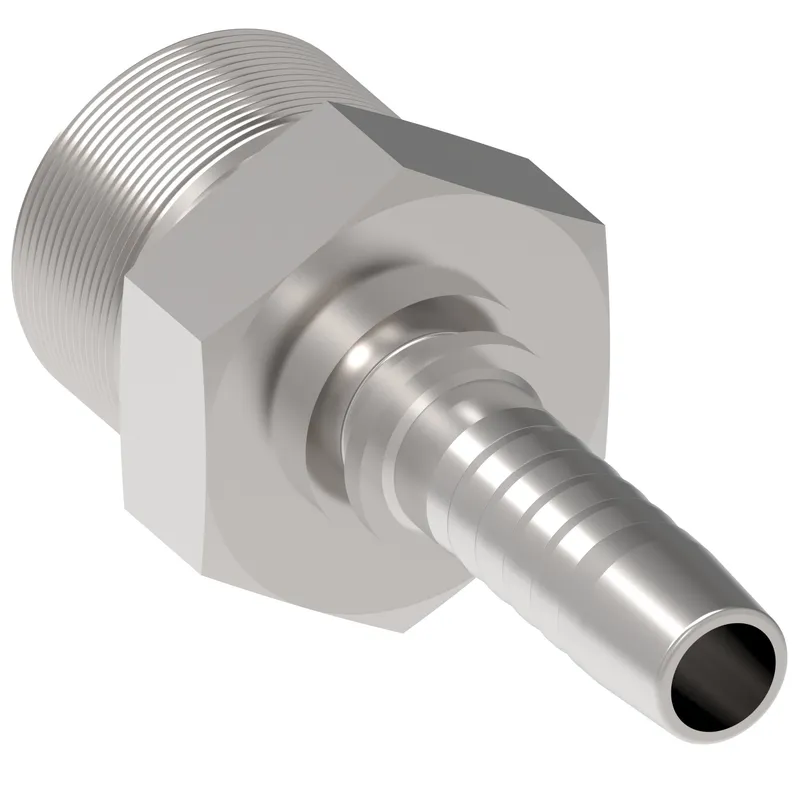

HOSE NIPPLE ASSY,2P/06,ORS-M/08,CS,STR

MPN: 14211-08-06ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211-08-06ZF?

Danfoss HOSE NIPPLE ASSY,2P/06,ORS-M/08,CS,STR, manufacturer part number 14211-08-06ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146191519
A dimension IN	2.260
A dimension MM	57.500
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC115, EC210, EC215
Construction Style	Crimp
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End size 2	-6
End Type 1	Male ORFS
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.080
Hose cut off factor MM	27.500
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.000
Product height mm	25.400
Product length in	2.263
Product length mm	57.500
Product material	Carbon steel
Product width in	0.866
Product width mm	22
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	13/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
