Danfoss 14211-06-04ZF

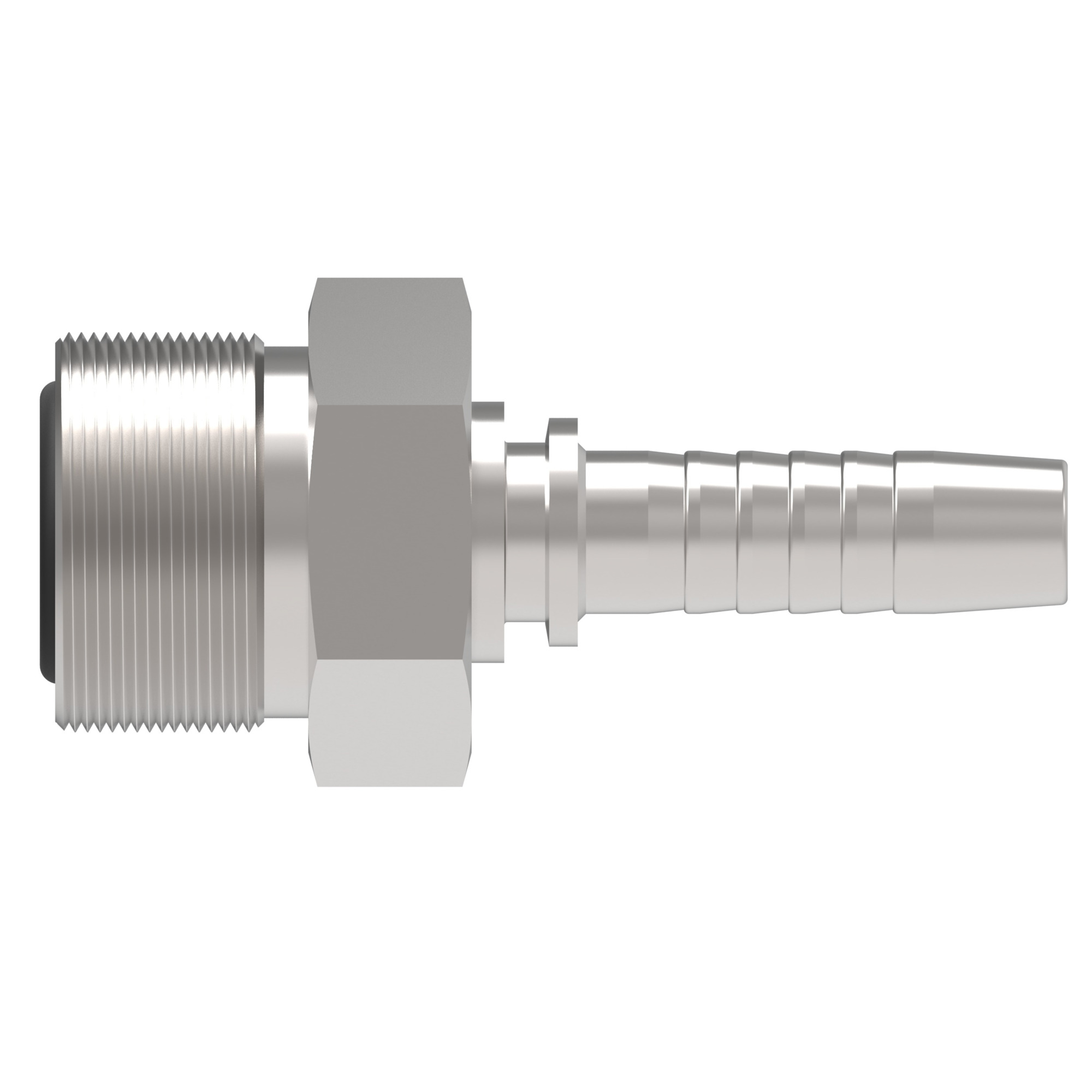

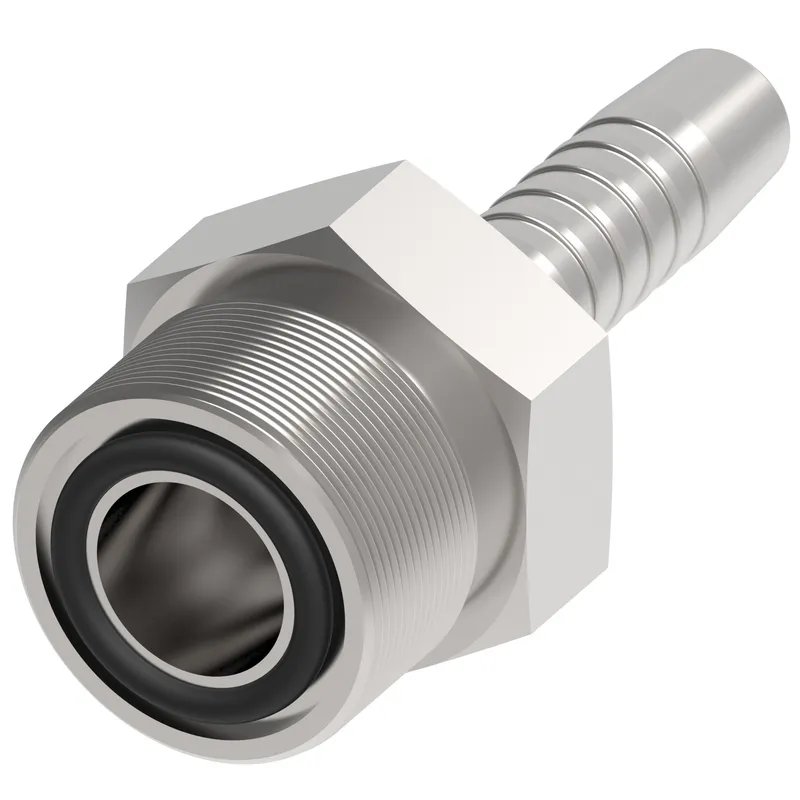

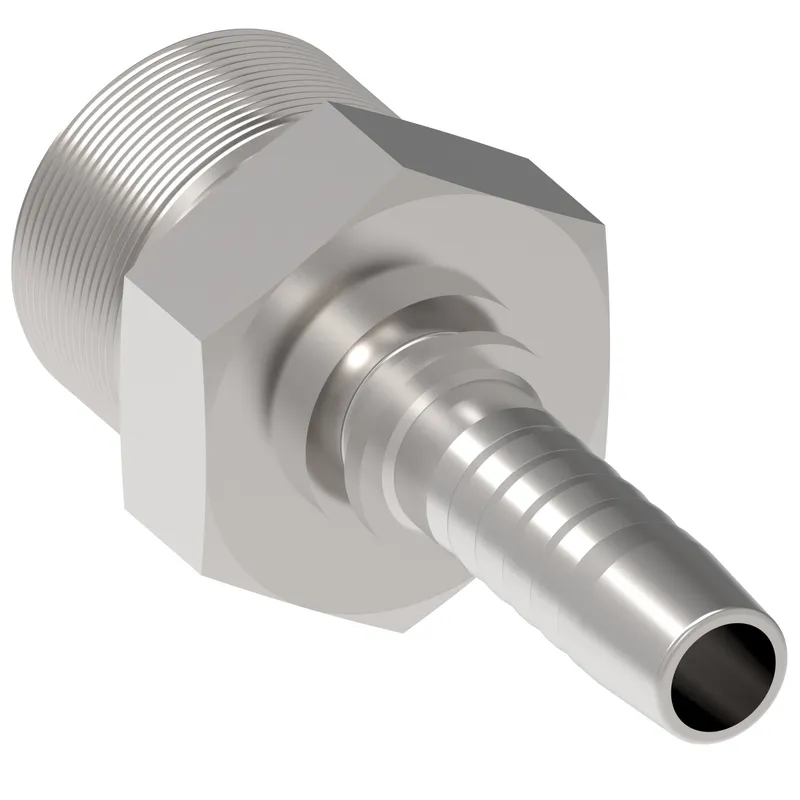

HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR

MPN: 14211-06-04ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211-06-04ZF?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR, manufacturer part number 14211-06-04ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146191496
A dimension IN	2.050
A dimension MM	52.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	EC110, EC115, EC210, EC215
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End size 2	-6
End Type 1	Male ORFS
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hex size 2 IN	0.748
Hex size 2 MM	19.000
Hose cut off factor IN	0.940
Hose cut off factor MM	24.000
Hose size	-4
Inside diameter IN	0.150
Inside diameter MM	3.900
Product height in	0.862
Product height mm	21.900
Product length in	2.047
Product length mm	52.000
Product material	Carbon steel
Product width in	0.748
Product width mm	19
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
