Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Hose cut off factor MM | Product length in |
|---|---|---|---|---|---|

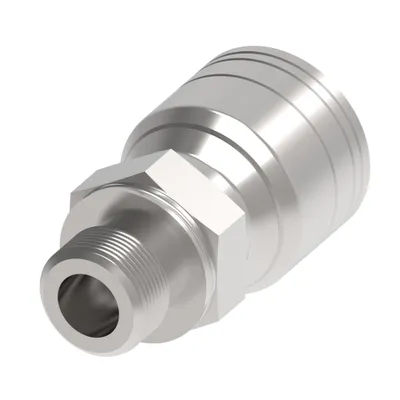

| 1A16SC6 | 1.930 | 49.000 | 1.090 | 27.700 | 2.087 |

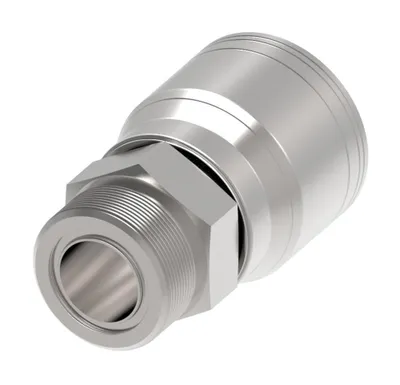

| 1A16MR16 | 3.170 | 80.500 | 1.689 | 42.900 | 3.000 |
| 1A16MR12 | 2.410 | 61.200 | 1.340 | 34.000 | 2.530 |
| 1A16MP16 | 3.190 | 81.100 | 1.860 | 47.300 | 3.215 |

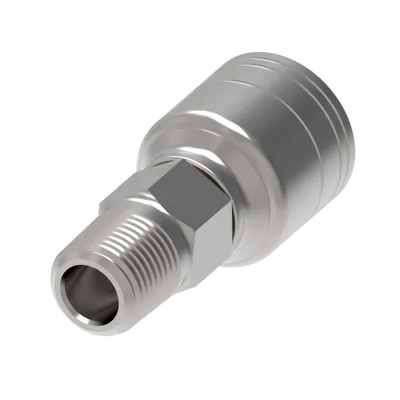

| 1A16MP12 | 2.670 | 67.900 | 1.610 | 40.800 | 2.796 |
| 1A16MJ16 | 3.360 | 85.300 | 1.880 | 47.700 | 3.224 |

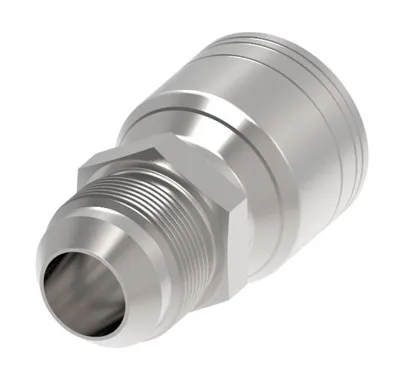

| 1A16MJ12 | 2.630 | 66.800 | 1.560 | 39.700 | 2.752 |

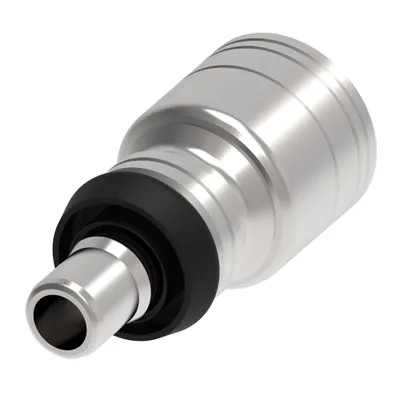

| 1A16MC16 | 3.270 | 83.100 | 1.940 | 49.200 | 3.290 |

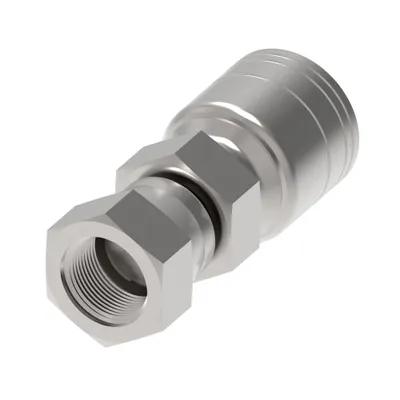

| 1A16KF16 | 3.570 | 90.800 | 2.240 | 57.000 | 3.600 |

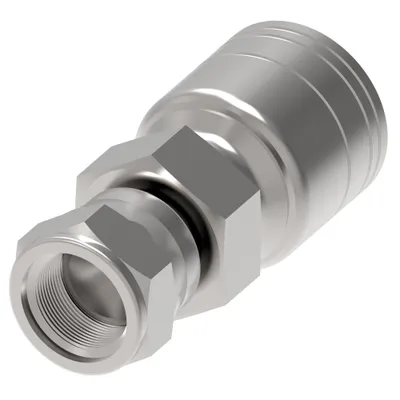

| 1A16JF16 | 3.270 | 83.000 | 1.940 | 49.200 | 3.290 |

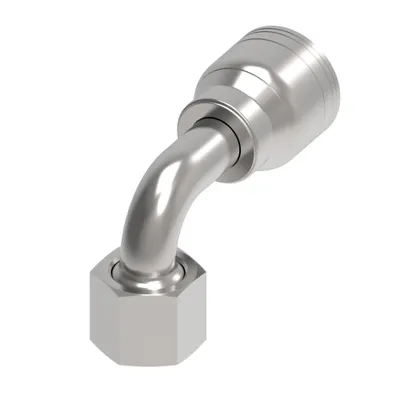

| 1A16FRB16 | 4.380 | 111.300 | 2.870 | 72.900 | 5.030 |

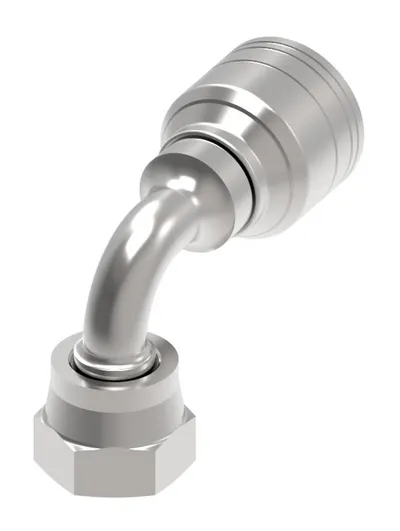

| 1A16FRB12 | 3.910 | 99.400 | 2.850 | 72.390 | 4.840 |

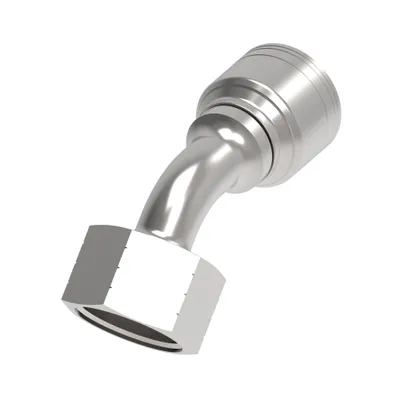

| 1A16FRA12 | 3.620 | 91.800 | 2.550 | 64.770 | 5.130 |

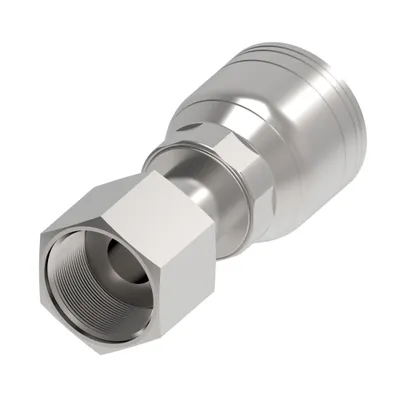

| 1A16FR12 | 2.870 | 73.000 | 1.790 | 45.500 | 3.450 |

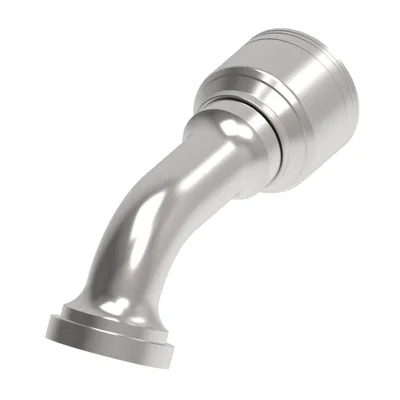

| 1A16FLG16 | 5.220 | 132.500 | 3.890 | 98.700 | 6.970 |

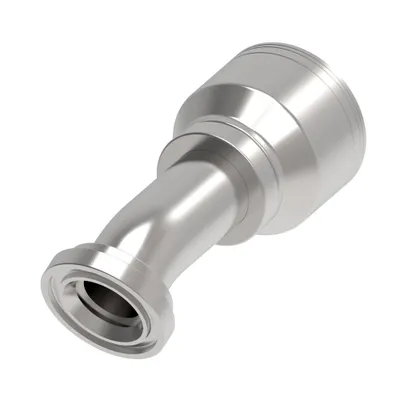

| 1A16FLD16 | 4.620 | 117.300 | 3.290 | 83.500 | 5.490 |

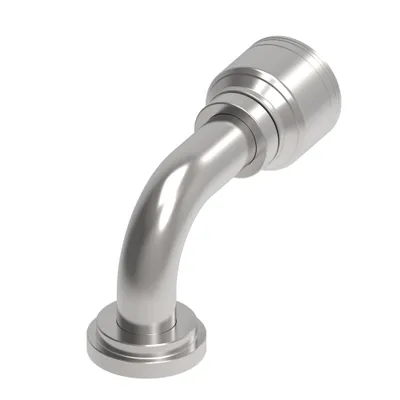

| 1A16FLB24 | 4.690 | 119.200 | 2.970 | 75.438 | 5.660 |

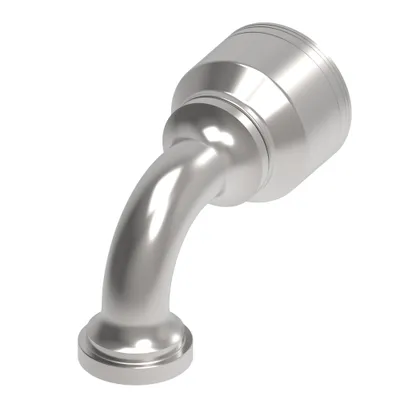

| 1A16FLB20 | 4.480 | 113.900 | 2.930 | 74.400 | 5.530 |
| 1A16FLB16 | 4.190 | 106.500 | 2.860 | 72.700 | 5.080 |

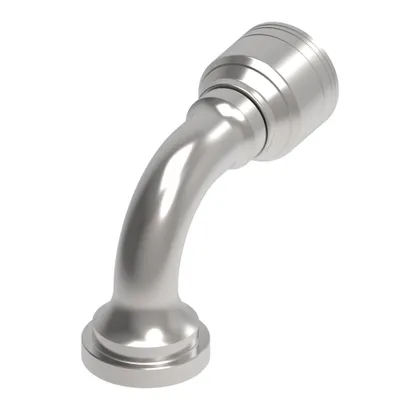

| 1A16FLB12 | 3.910 | 99.300 | 2.840 | 72.200 | 4.900 |

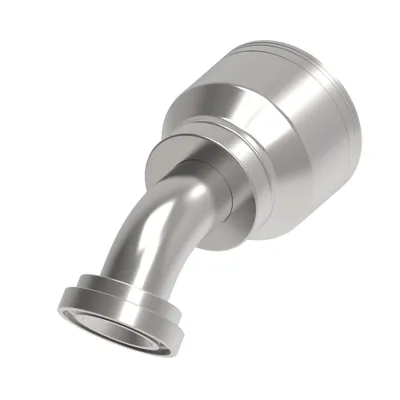

| 1A16FLA20 | 4.620 | 117.300 | 3.060 | 77.800 | 5.660 |

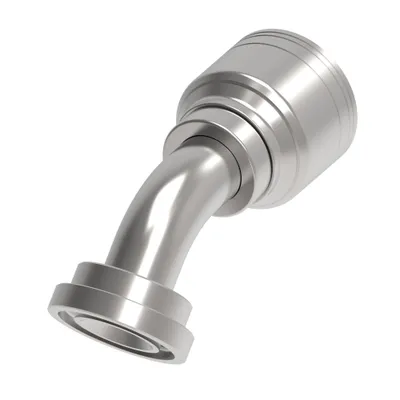

| 1A16FLA16 | 4.330 | 109.900 | 2.990 | 76.100 | 5.210 |
| 1A16FLA12 | 4.040 | 102.600 | 2.970 | 75.500 | 5.030 |

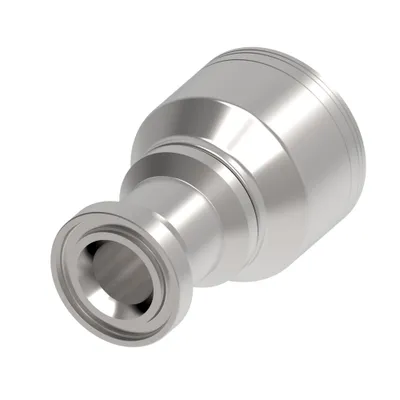

| 1A16FL20 | 3.760 | 95.600 | 2.210 | 56.100 | 3.940 |
Common to all listed parts
| Construction Style | Crimp |
| End size 1 | -16 |
| Product material | Carbon steel |
| Series | 1A/Z Series |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
